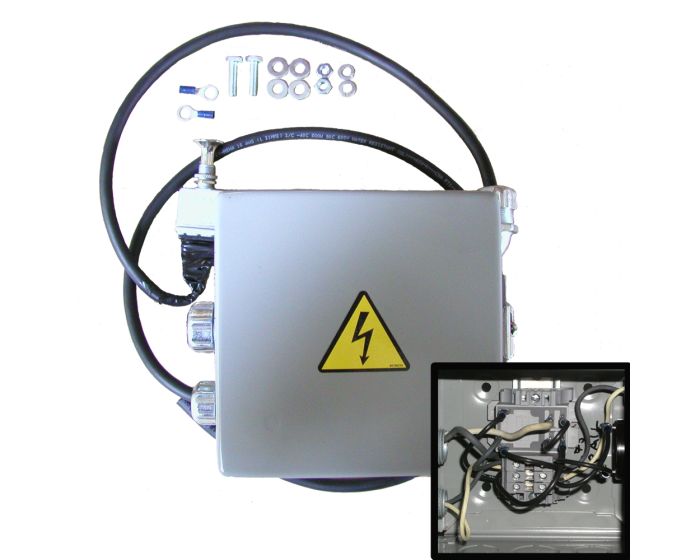

Magnet Relay Retro-Kit (24VDC)
$1,187.70
SKU
80032003
Update kit for ATC units with magnet extraction built prior to June 2009
Update kit for 24 volt ATC units with magnet extraction built prior to June 2009. Replaces old junction box with new junction box with current relay setup, includes new pull switch and alarm. Installation Instructions can be downloaded here
Includes:
| QTY | PART# | DESCRIPTION |
|---|---|---|
| 1 | 08036011 | MACHINED ENCLOSURE |
| 1 | 08036012 | ENCLOSURE SUB PANEL |
| 1 | E0703 | AUDIBLE ALARM |
| 1 | E0613 | RESTRAINT-3/4" |
| 1 | E0616 | RESTRAINT-1/2" |
| 1 | E0623 | RESTRAINT-1/2"-90 DEG |
| 2 | E0617 | LOCKNUT-CONDUIT-1/2" |
| 1 | E0618 | LOCKNUT-CONDUIT-3/4" |
| 2 | YE0406 | TERMINAL END STOP |
| 3 | YE0402 | TERMINAL BLOCK |
| 1 | YE0405 | TERM END SECTION |
| 1 | YE0206 | 30A RELAY DPST-NO |
| 1 | 00138002 | MOUNTING TRACK |
| 2 | E0404 | CONNECTOR 16-14 GAUGE |
| 2 | E0405 | CONNECTOR 16-14 GAUGE |
| 6 | E1038 | TERMINAL-PUSH ON-1/4" |
| 1 | E0302-1 | PULL SWITCH |
| 5' | E0504 | 16-2 SO CABLE |
| 2 | HW0303 | BOLT-HHCS-1/4-20 X 1" |
| 2 | HW0103 | WASHER-LOCK-1/4" |
| 2 | HW0002 | NUT-HEX-1/4-20 |
| 4 | HW0104 | WASHER-FLAT-1/4"-SAE |
| 2 | HW0130 | SCREW-RHMS-#8-32 X 1/2" |
| 2 | HW0132 | NUT-NILN-#8-32 |
| 2 | HW0133 | WASHER-FLAT-#8 SAE |
| 1 | 00196218 | LABEL-DANGER-ELEC. HAZARD |
| 1 | 80032003-i | INSTALLATION INSTRUCTIONS |
