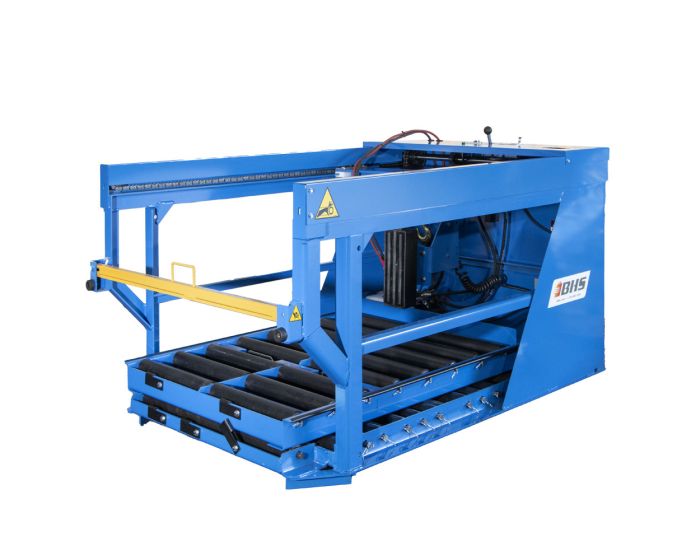

Automatic Transfer Carriage (36″ Wide Compartment)

$7,923.00
SKU
ATC-36
Industrial forklift battery changer with one 36" (762 mm) wide forklift battery compartment and is mounted to and powered by your pallet truck.

The BHS Automatic Transfer Carriage (ATC-36) is a cost-effective industrial forklift battery changer/extractor. The ATC-36 mounts easily to your pallet truck and is powered by your pallet truck, which allows for lower system cost by utilizing existing equipment. It has one 36" (762 mm) wide forklift battery compartment. Standard industrial components are utilized in the design allowing for local parts availability while simple center mounted controls allow for easy operation from left, right or rear of the extractor. Ten compartment rollers are standard for better wear and load distribution. The push-pull extraction on the ATC-36 is hydraulic powered.

Features & Benefits
  • Lowers system cost by utilizing existing equipment
  • Mounts easily to powered pallet truck—consult BHS for pallet truck specifications
  • Powered by the pallet truck battery (12 or 24 V dc available)
  • Simple, center-mounted controls for easy operation from left, right, or rear of the carriage
  • Large 2.4” (61 mm) diameter rollers standard
  • 10 compartment rollers allow for better wear and load distribution
  • Hydraulic-powered push-pull extraction
  • Enclosed dashboard sides for added protection against accidental contact with moving parts during operation
  • Battery Containment Bar encloses compartment to secure battery during transport
  • Rubber Bumpers protect the industrial lift truck fleet during battery change-out
  • Spark-proof, poly-sleeved rollers reduce corrosive build-up and extend product life (ATC-24 only)
  • Many flexible options available to satisfy unique battery handling requirements
  • 2 Tier options are available on request. Contact your BHS sales representative for more information
  • Comes equipped with Hook and Chain
More Information
Mfr. Part Number ATC-36
Manufacturer BHS
Capacity 4,000 lb / 1814 kg
Roller Compartment Width 36" / 910 mm
Rollers per Compartment (Standard) 10
Roller Height 3" / 76 mm from base to top of roller
Maximum Battery Length 41" / 1041 mm
Overall Length 62.75" / 1594 mm
Overall Width 41.5" / 1054 mm
Overall Height 34" / 864 mm
Manufacturer's Website http://na.bhs1.com/
