Cable Festoon Kits

Only %1 left
SKU
CFS

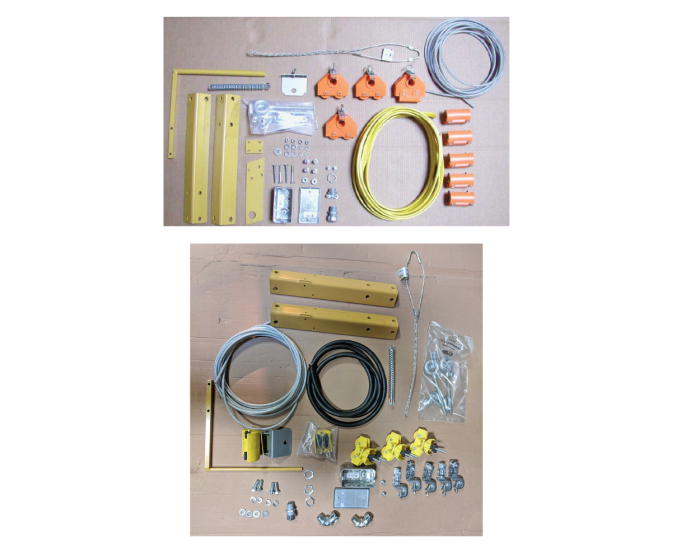

Cable Festoon Kit

PGC-CFS (Powered Gantry Cranes)

QTY PART# DESCRIPTION
1 14015004 TOW ARM
2 14617122-2 BRACKET-CABLE-CFS
60' CF0050 CABLE-FLAT-PVC-14-4
8' E0501 14-4 SO CORD CABLE
23' CF0055 NYLON COATED CABLE
4 HW0107 WASHER-LOCK-3/8"
4 HW0108 WASHER-FLAT-3/8"
1 E0611 BOX-JUNCTION-2" X 4"
1 E0612 COVER-BO- JUNCTION
2 HW0301 BOLT-SELF TAP- "F"-1/4-20 X 1/2"
4 HW0401 BOLT-HHCS-3/8-16 X 3/4"
1 SWS0001 HARDWARE KIT-CFS
1 SWS0005 CLAMP-FIXED END
1 SWS0010 TOW TROLLEY
3 SWS0015 CABLE TROLLEY
1 E0629 SPRING-SHOCK
1 E0630 GRIP-CABLE-SUPPORT-.500-.620
1 E0622 RESTRAINT-1/2"
2 E0608-1 RESTRAINT-1/2"-90 DEG-.450-.560
3 E0617 LOCKNUT-CONDUIT-1/2"
5 E0625-1 CLAMP-S/O CORD CABLE
1 14017019 PLATE-MOUNTING
1 80000005 INSTALLATION INSTRUCTIONS
4 HW0002 NUT-HEX-1/4-20
4 HW0103 WASHER-LOCK-1/4
4 HW0305 BOLT-HHCS-1/4-20 X 2
1 14017018 PLATE-SUPPORT

PGC-CFS-A (Manual Gantry Cranes)

QTY PART# DESCRIPTION
1 14015004 TOW ARM
2 14617122 BRACKET-CABLE
24' CF0050 CABLE-FLAT-14-4
23' CF0055 CABLE-NYLON COATED
4 HW0107 WASHER-LOCK-3/8"
4 HW0108 WASHER-FLAT-3/8"-SAE
1 E0611 BOX-JUNCTION-2" X 4"
1 E0612 COVER-BOX JUNCTION N
2 HW0301 BOLT-SELF TAP "F"-1/4-20 X 1/2"
4 HW0401 BOLT-HHCS-3/8-16 X 3/4"
1 SWS0001 HARDWARE KIT
1 SWS0005 CLAMP-FIXED END
1 SWS0010 TOW TROLLEY
3 SWS0015 CABLE TROLLEY
5 SWS0021 CLAMP-FLAT CABLE
1 E0629 SPRING-SHOCK
1 E0630 CABLE GRIP
1 E0622 RESTRAINT-1/2"
1 E0617 LOCKNUT-CONDUIT-1/2"
1 E0624 CONNECTOR-1/2"
1 14017022 TOW ARM BRACKET
1 14017019 MOUNTING PLATE
4 HW0305 BOLT-HHCS-1/4-20 X 2"
4 HW0002 NUT-HEX-1/4-20
4 HW0103 WASHER-LOCK-1/4"
8 HW0104 WASHER-FLAT-1/4"-SAE
