Dock Ramps
For pricing, contact us by calling 314-696-0200 or Request a Quote.
Only %1 left
SKU
DR

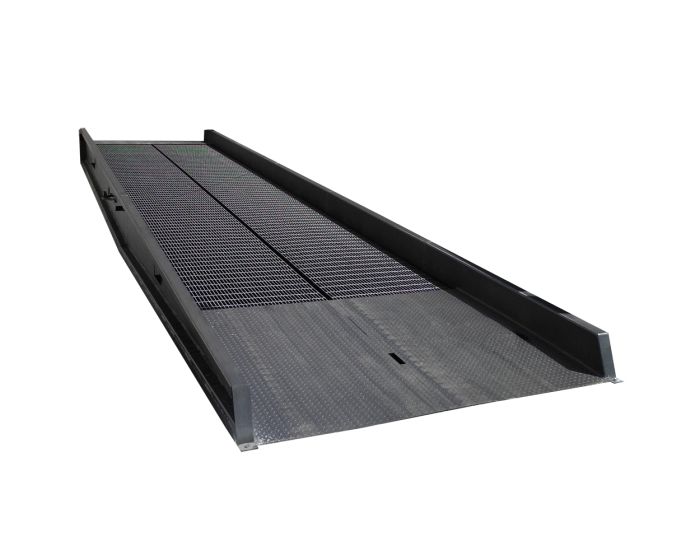

Heavy-duty dock ramp 84" wide by 30' long.
The Dock Ramp (DR) provides dependable dock-to-ground access for staff and machinery. All-steel construction ensures reliability, even under the heaviest of loads.
The DR-8430-16 is 84 inches (2134 mm) wide by 30 feet (9144 mm) long. BHS designed the Dock Ramp to gently slope over its 30-foot length for simpler, safer forklift navigation.
Solid steel approach plates help absorb impact at the base while open steel grating provides maximum traction on the remainder of the ramp. Eight-inch-high steel curbs guard the sides of the ramp to prevent accidents. Dock Ramps can also be customized with hand rails to aid pedestrians in navigating the ramp.
Dock ramps provide additional points of entry to the receiving area, speeding up packing and unpacking tasks. This all-steel, heavy-duty model is designed for a lifetime of safe, resilient use.
- Designed for standard height loading docks
- Heavy-duty, all steel construction for added reliability
- Solid steel approach plates transition to open steel grating for maximum traction and durability
- 8” (203 mm) high steel safety curbs
- Two anchors secure ramp at base where ramp meets ground
|
Model |
Overall Width |
Overall Length |
Usable Width |
Service Height |
Capacity |
|
DR-8430-16 |
84” (2134 mm) |
30’ (9.144 m) |
78” (1981 mm) |
48”–52” (1219–1321 mm) |
16,000 lb (7258 kg) |
|
DR-8430-20 |
84” (2134 mm) |
30’ (9.144 m) |
78” (1981 mm) |
48”–52” (1219–1321 mm) |
20,000 lb (9072 kg) |
|
DR-11420-40 |
114” (2896 mm) |
20’ (6.096 m) |
108” (2743 mm) |
48”–52” (1219–1321 mm) |
40,000 lb (18144 kg) |
