Fork Access Battery Stand

As low as $1,000.00
Only %1 left
SKU
BSFA

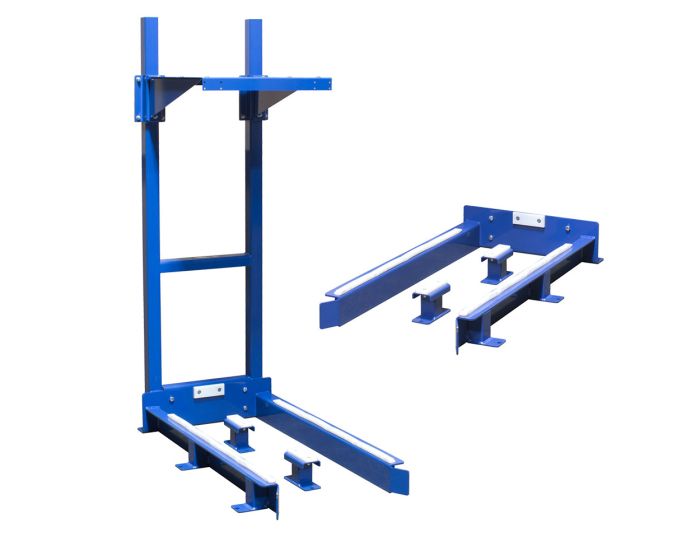

BSFA's include the option of vertical-mount or shelf-mount use and additional models are available with no charger shelf.

The BHS Fork Access Battery Stand (BSFA) is the perfect solution for lift trucks that don't have battery roller beds and require battery exchange with a pallet truck. This rugged, powder-coated stand stores a single battery in a wide range of sizes. Models are compatible with either 18- or 27-inch pallet trucks and can accommodate batteries up to 50 inches long.

Spark-proof UHMW polyethylene resting strips prevent direct contact between the battery and stand. An additional UHMW strip on the back rail further isolates the battery. Welded system feet with anchor holes firmly secure the stand, and angled front rails aid in guiding the pallet truck into stand.

Features & Benefits

  • All models are knock down flat, include (2) pedestals for battery center support, and are supplied with different sized shims for installation levelness
  • Durable powder coat finish resists both acid and scratches
  • Shelf-mount models include SB connector mounting holes
  • Vertical-mount models include SB connector mounting bracket
  • Angled front rails to aid in guiding pallet truck into stand
  • Welded system feet with anchor holes
  • Spark proof UHMW polyethylene battery resting strips prevent direct contact between battery and stand
  • UHMW strip on back rail for additional battery isolation
  • Charger anchoring slots for securing most makes of chargers
  • Accommodates batteries up to 50” (1270 mm) long
  • 5.125” (130 mm) top of battery slides for battery transfer with most pallet trucks

BSFA-526

BSFA-526-1

BSFA-857

BSFA-857-1

Charger Mount Type

Shelf Mount/Vertical Mount

No Charger Mount

Shelf Mount/Vertical Mount

No Charger Mount

Min Battery Width

20.688” / 526 mm

33.75” / 857 mm

Max Battery Height*

38” / 966 mm

38” / 966 mm

Max Battery Length

50” / 1270 mm

50” / 1270 mm

Battery Deck Height

5.063” / 129 mm

5.063” / 129 mm

Battery Deck Capacity

4,000 lb / 1814 kg

4,000 lb / 1814 kg

Charger Mount Capacity

250 lb / 113 kg

N/A

250 lb / 113 kg

N/A

Charger Shelf (W x D)

31.5” x 22.5” / 800 mm x 572 mm

31.5” x 26” / 800 mm x 660 mm

Charger Width (-VM only)

3” / 77 mm Min

15.875” / 404 mm Max

N/A

10” / 254 mm Min

24.875” / 632 mm Max

N/A

Charger Height (-VM only)†

4” / 102 mm Min

38” / 966 mm Max

N/A

4” / 102 mm Min

38” / 966 mm Max

N/A

Charger Mounting Slots (-VM only)

0.563” x 15.875”

14 mm x 403 mm

N/A

0.563” x 24.875”

14 mm x 632 mm

N/A

Max O.A. Fork Width

18” / 458 mm

27” / 686 mm

Min Fork Spacing‡

4” / 102 mm

4” / 102 mm

Overall Dimensions (W x D x H)

29.25” x 52” x 72.5”

743 mm x 1321 mm x 1842 mm

39.25” x 52” x 72.5”

997 mm x 1321 mm x 1842 mm
