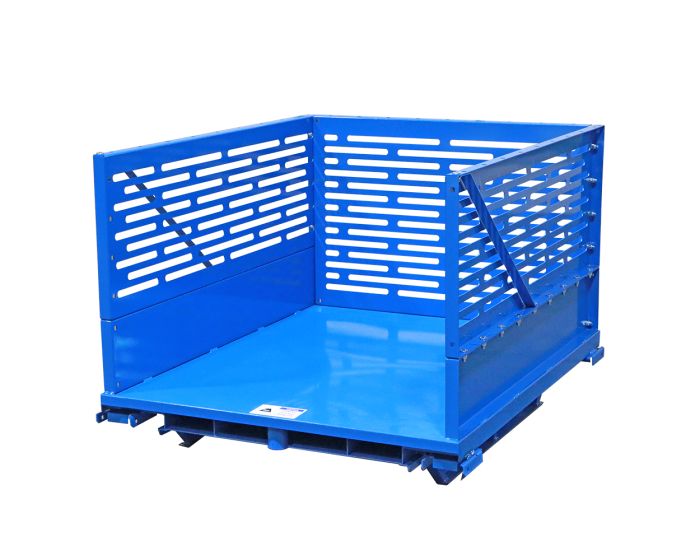

Order Picking Platform - Knock Down Flat

$2,075.00
SKU
OPP-4840-KDF
The Order Picking Platform–Knock Down Flat (OPP-4840-KDF) attaches to an order picker truck for upper-shelf picking to pallets or inventory replenishment directly from pallet loads.

Order Picking Platforms attach to order picker trucks to greatly increase capacity during picking and putaway tasks at any height. These steel, enclosed platforms store a pallet in the base, allowing pickers to build unit loads on the go, or to replenish inventory directly from pallets. Collapsible enclosure walls reduce freight costs and provide vertical storage between uses. Assembled, users can stack OPP-KDF two high*. Knocked down flat**, units nest up to six high within a single footprint. Optional push handle and casters allow manual mobility, with or without forklifts.

  • Provides safe, high-capacity storage for pallet-loads during picking and putaway
  • Steel, powder-coated construction for increased durability
  • Integrated fork pockets provide connection to order picker trucks
  • Ships knocked down flat to save on freight costs
  • Stack two (2) assembled units during storage, or collapse to nest six (6) high
  • Carrying capacity of 1,000 pounds (453.59 kg)
  • Sized to store standard pallets and full pallet loads
  • Standard slotted steel walls stand 24” (60.96 cm) high
  • Optional additional panels increase enclosure height to 48” (121.92 cm)
  • Optional casters and push handle available for manual use
  • Optional bifolding removable cover provides a work surface with adjustable dimensions

* A maximum of one unit can be safely attached to an order picker truck. Do not attempt to use stacked units simultaneously on lift truck.

**Removal of bolts required for disassembly

Model

Width

Depth

Height

Compartment (W×D×H)

Fork Pocket Dimensions

Weight

OPP-4840-KDF

40”

1016 mm

48”

1219 mm

32 9/16”

827 mm

36 3/4” × 46 3/8” × 24 7/8”

933 mm × 1178 mm × 632 mm

Order Pickers: 26 13/16”

Pallet Jack: 15 1/4”

260 lb

118 kg

Casters (OPP-4840-KDF CASTER)
(4) Casters for manual mobility
Removable Cover (OPP-4840-KDF-CVR)
Removable galvanized cover provides a work surface with adjustable dimensions. Hinged cover bifolds to make a 4-sided tray or collapse for storage.
Height Extension (OPP-4840-KDF EXTENDED WALLS)
(3) Additional side panels bolt on to double the compartment height to 49 3/4” (1264 mm)
Push Handle (OPP-4840-KDF-HDL)
Push Handle for ergonomic maneuverability
