RNS Replacement Pump Kit

More Views

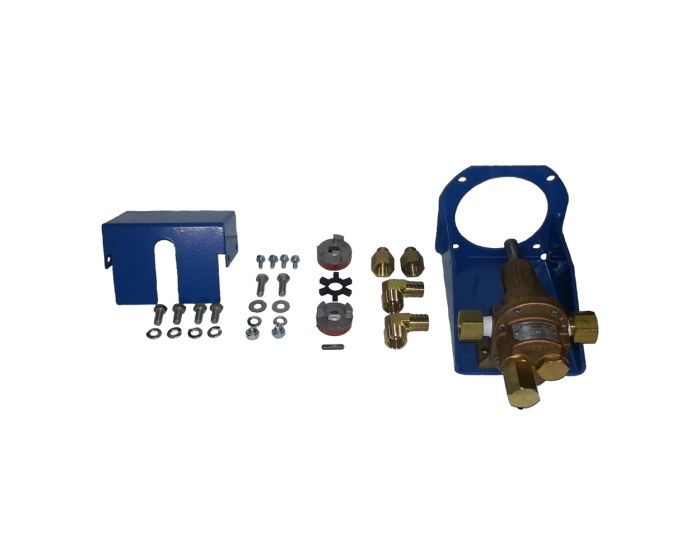

RNS Replacement Pump Kit

Part #80572004

$1,534.00
Replaces PB0120
QTYPart #Description
1 42517029-2 Pump Mount
1 PB0130 Pump

2

HC0314 Coupling, Half

1

HC0316 Coupling Insert
2 SS0116 Bolt, HHCS - 3/8in-16 x 1" - stainless
4 SS0115 Bolt, HHCS - 3/8in-16 x 3/4in - stainless
6 SS0402 Washer, Lock - 3/8in - stainless
2 SS0302 Washer, Flat - 3/8in - stainless
2 HW0005 Nut, Hex - 3/8in-16
2 PB0410 Adaptor, #12 NPT x #8 NPT
1* PB0415 Elbow, 90 deg - #12 NPT x 1in barb
2** PB0605 Elbow, 90 deg - #12 NPT x 3/4in barb
1 42517030-2 Pump Cover
4 HW0301 Bolt, Self Tap "F" - 1/4in-20 x 1/2in

*PB0415 req'd for RNS-1 units.

**PB0605-1 req'd for RNS-3 & -4 units.

Note:
Pump and bracket assembly is shimmed for proper alignment from the factory. Removing and installing the pump on an existing bracket will cause misalignment of the pump and motor possibly causing premature coupling and/or pump failure.

Specifications

Additional Information

Manufacturer BHS
Mfr. Part Number No
Color No
