Single Level System Stands

As low as $1,515.00

Only %1 left

SKU

BS-SL

Compartment Width

Number of Compartments

Compartment Depth

Charger Shelf or No Charger Shelf

Custom Charger Shelf Placement

None

Charger Shelf Forward + $271.00

Charger Shelf Rearward + $271.00

Charger Shelf Extension

None

6" Charger Shelf Extension + $97.00

8" Charger Shelf Extension + $128.00

Back Stop

Roller Height

Qty

Catalog (PDF)

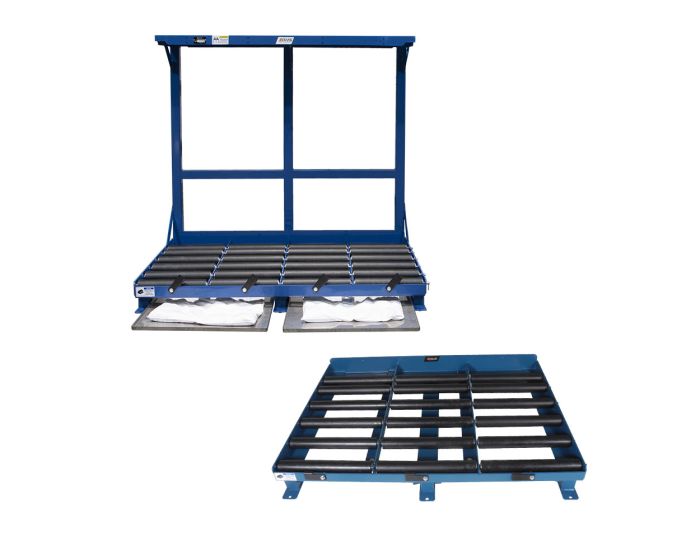

Single level forklift battery stand with welded feet. Compatible with stainless steel drip pans (DK).

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

BHS Single Level System Stands (BS-SL) provide the ideal location to charge, store, and exchange lift truck batteries with convenience and ease. These heavy-duty, steel-constructed stands complement a Single Side or Single Level Operator Aboard Battery Extractor.

The BS-SL features rearward-pitched battery slots and adjustable back-stops to keep batteries securely in place. Spark-proof, poly-sleeved rollers reduce corrosive buildup, which extends product life and lowers maintenance costs. Integrated charger stands make the charging process hassle-free.

Dozens of compartment configurations, safety features, and options are available to provide custom solutions for your operation. Drip pans, leg and shelf extensions, and rubber backstops are available as added features.

Features & Benefits

Spark-proof, poly-sleeved rollers reduce corrosive build-up and extend product life
Models available in various compartment widths
40” (1016 mm) standard compartment depth
Hitch pin-secured roller axles for ease of maintenance
Rearward-pitched battery slots to assist in battery retention
Welded system feet
Six rollers per compartment
Foot pad dimensions: 0.25″ x 3″ x 5″ (6 mm x 76 mm x 127 mm)
Charger connector mounting holes
Charger anchoring slots for securing most makes of chargers
Adjustable back-stops reduce compartment depth to 34″ (864 mm)
Custom designs available to fit all battery changing requirements

Specifications

Model	Roller Compartment Width	Frame Width	Overall Width
BS-12-2-SL	12" / 305 mm	26" / 660 mm	27" / 686 mm
BS-12-3-SL	12" / 305 mm	38.875" / 987 mm	40" / 1016 mm
BS-15-2-SL	15" / 381 mm	32" / 813 mm	33" / 838 mm
BS-15-3-SL	15" / 381 mm	47.875" / 1216 mm	49" / 1245 mm
BS-15-4-SL	15" / 381 mm	63.75" / 1619 mm	65" / 1651 mm
BS-15-6-SL	15" / 381 mm	95.5" / 2426 mm	97" / 2464 mm
BS-18-2-SL	18" / 457 mm	38" / 965 mm	39" / 991 mm
BS-18-3-SL	18" / 457 mm	56.875" / 1445 mm	58" / 1473 mm
BS-18-4-SL	18" / 457 mm	75.75" / 1924 mm	77" / 1956 mm
BS-18-6-SL	18" / 457 mm	113.5" / 2883 mm	115" / 2921 mm
BS-21-2-SL	21" / 533 mm	44" / 1118 mm	45" / 1143 mm
BS-21-3-SL	21" / 533 mm	65.875" / 1673 mm	67" / 1702 mm
BS-21-4-SL	21" / 533 mm	87.75" / 2229 mm	89" / 2261 mm
BS-24-2-SL	24" / 610 mm	50" / 1270 mm	51" / 1295 mm
BS-24-3-SL	24" / 610 mm	74.875" / 1902 mm	76" / 1930 mm
BS-27-2-SL	27" / 686 mm	56" / 1422 mm	57" / 1448 mm
BS-27-3-SL	27" / 686 mm	83.875" / 2130 mm	85" / 2159 mm
BS-30-2-SL	30" / 762 mm	63.75" / 1619 mm	65" / 1651 mm
BS-30-3-SL	30" / 762 mm	95.5" / 2426 mm	97" / 2464 mm
BS-33-2-SL	33" / 838 mm	68" / 1727 mm	69" / 1753 mm
BS-33-3-SL	33" / 838 mm	101.875" / 2588 mm	103" / 2616 mm
BS-36-2-SL	36" / 914 mm	75.75" / 1924 mm	77" / 1956 mm
BS-36-3-SL	36" / 914 mm	113.5" / 2883 mm	115" / 2921 mm
BS-42-2-SL	42" / 1067 mm	87.75" / 2229 mm	89" / 2261 mm

Note: If charger shelf is not required, use suffix (-1). For example BS-15-2-SL-1

Options

Charger Shelf Forward (BS-FWD): Space-saving shelf designed for battery rooms with limited space
Charger Shelf Rearward (BS-RWD): Offsets shelf to rear to eliminate obstruction over compartment
Extended Compartment Depth (-46): Increases roller compartment depth to 46″ (1168 mm)
Extended Compartment Depth (-48): Increases roller compartment depth to 48″ (1219 mm)
Extended Compartment Depth (-50): Increases roller compartment depth to 50″ (1270 mm)
Drip Pan (DK): Contains spills, maintaining a cleaner, safer environment
Leg Extension (BS-LE): Increases roller height beyond standard 8" (203 mm) height up to 18" (457 mm) Note: Consult factory on this option
Poly Lead Roller: Replaces the first roller in each compartment with a polyethylene roller to eliminate potential bearing failure in frequent change-out environments
Rubber Backstop (BS-RBR-STP): Cushions battery during placement into stand Note: One per stand required, slightly reduces compartment depth
Shelf Extension - 6" (BS-EXT-6): Adds 6" (152 mm) extension between stands to support larger charger cabinets
Without Charger Shelf (-1): Add suffix -1 to indicate without charger shelf when ordering
