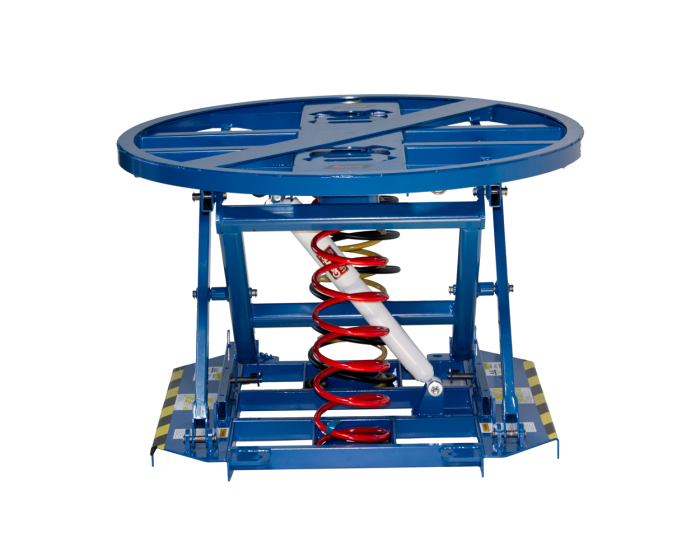

Spring Loaded Self Leveling Pallet Carousel Skid Positioner
The BHS Pallet Carousel & Skid Positioner makes loading and unloading pallets and skids safe, simple, and quick. The PCSP is available in either a pneumatic airbag-actuated model or a spring-actuated model, both providing an ergonomic solution for palletizing. The PCSP reduces the amount of operator bending and reaching required during loading or unloading because it automatically raises and lowers as weight is added or removed from a pallet or skid.
The Pallet Carousel & Skid Positioner’s turntable rotates a full 360°, requiring less worker movement while increasing efficiency. The turntable top is equipped with easy turning, anti-friction bearings allowing users to spin loads, eliminating the need for walking around it. Load and unload pallets without bending, reaching, walking, or stooping. The self-leveling PCSP automatically positions pallets at a comfortable working height as layers of product are added or removed.
Features & Benefits
- Automatically positions loads between 10.5” and 27.75” (267 mm and 705 mm)
- Small base allows workers to stand up close to the unit for better ergonomics
- Full 360° tabletop rotation eliminates need to reach across tabletop
- Stable design eliminates need to anchor the unit to the floor
- 4,500 lb (2041 kg) maximum capacity
- 400 lb (181 kg) minimum capacity for self-leveling operation
- Custom platforms available
- Sealed ball bearings for easy rotating
- Dampener provides smooth, gradual raising and lowering without bounce
- Built in two-way fork pockets conveniently allow transport of unit to work-space
- Durable powder coat finish
- Three heavy-duty springs automatically adjust pallet height
- Completely automatic, requiring no power or air supply for operation
Model |
Tabletop Description |
Vertical Travel |
Capacity |
Table Height |
Base Width |
Base Length |
Overall Width |
Overall Length |
|
Min |
Max |
||||||||
PCSP-S-43 |
43” Round Open Platform |
17.25” 438 mm |
4,500 lb 2041 kg |
10.5” 266 mm |
27.75” 705 mm |
36.94” 938 mm |
36.56” 929 mm |
43” 1092 mm |
43” 1092 mm |
PCSP-S-43-SC |
43” Round Solid Platform |
17.25” 438 mm |
4,500 lb 2041 kg |
10.5” 266 mm |
27.75” 705 mm |
36.94” 938 mm |
36.56” 929 mm |
43” 1092 mm |
43” 1092 mm |
PCSP-S-43-SSC |
43” Round Stainless Steel Solid Platform |
17.25” 438 mm |
4,500 lb 2041 kg |
10.5” 266 mm |
27.75” 705 mm |
36.94” 938 mm |
36.56” 929 mm |
43” 1092 mm |
43” 1092 mm |
PCSP-S-4548 |
45” x 48” Square Solid Platform |
17.25” 438 mm |
4,500 lb 2041 kg |
10.5” 266 mm |
27.75” 705 mm |
36.94” 938 mm |
36.56” 929 mm |
48” 1219 mm |
45” 1143 mm |
PCSP-S-4548-ST |
45” x 48” Square Solid Platform with Skid Tape and Containment Lip |
17.25” 438 mm |
4,500 lb 2041 kg |
10.5” 266 mm |
27.75” 705 mm |
36.94” 938 mm |
36.56” 929 mm |
48” 1219 mm |
45” 1143 mm |
PCSP-S-4548-ST-NL |
45” x 48” Square Solid Platform with Skid Tape - No Containment Lip |
17.25” 438 mm |
4,500 lb 2041 kg |
10.5” 266 mm |
27.75” 705 mm |
36.94” 938 mm |
36.56” 929 mm |
48” 1219 mm |
45” 1143 mm |
