Universal Forklift Charger Stands

As low as $593.00

Only %1 left

SKU

CSU

Today’s forklift chargers come in many shapes and sizes. The Universal Forklift Charger Stand (CSU) supports them all. Contact our sales team to configure your ideal charging stations.

Note: Cable Management sold separately.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

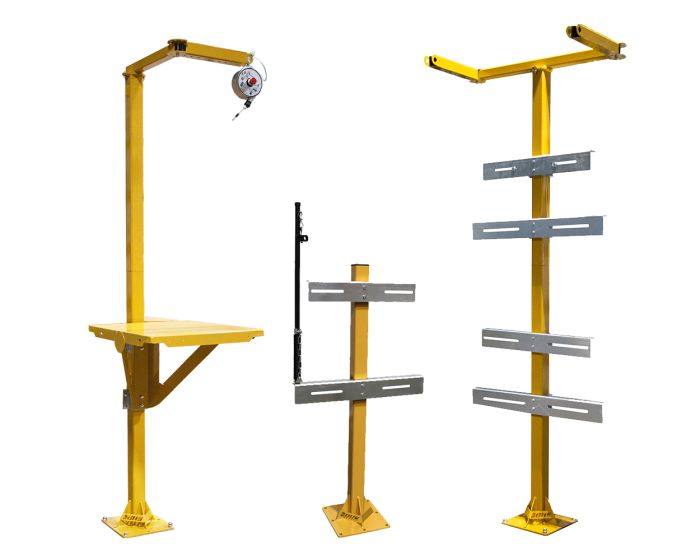

Today’s forklift chargers come in many shapes and sizes. The Universal Forklift Charger Stand (CSU) supports them all.

This configurable charger pedestal provides compact storage for any charging equipment, with your choice of horizontal wall mounts or flat shelves. It’s the ideal charger stand for park-and-charge or opportunity charging applications, but it’s just as helpful in a conventional battery room.

Mount up to four chargers on a single stand for even greater space savings. Horizontal wall-mount brackets accommodate even the widest of wall-mounted fast chargers. Shelf mount models hold up to two chargers on either 24- or 36-inch (610 or 914 millimeters) wide shelves. Carrying capacities of 300 pounds (136 kilograms) per shelf easily hold all major charging technologies.

The modular CSU system protects charging equipment while limiting space requirements. It also adapts to match any charger, so you’re free to upgrade without replacing stands.

Features & Benefits

Modular construction accommodates all major forklift chargers
Choose 1-2 shelves or 1-4 wall mounts to match chargers
Heavy-duty steel construction for added reliability
Pedestal design provides compact charger storage
Steel stand anchors securely to the floor, allowing users to position chargers anywhere in the facility (4 floor anchors included)
Wall-mount securing points between 8” and 27” (203–686 mm) wide
Durable powder-coat finish resists damage from battery electrolyte and scratches
Helps comply with OSHA standards

Specifications

SKU	Charger Capacity	Overall Width	Overall Height	Overall Depth	Total Capacity	Cable Management (sold separately)
WALL-MOUNT
CSU-1	1	34” (864 mm)	55.38” (1407 mm)	12” (305 mm)	300 lb (136 kg)	Compatible with Cable Retractor Pogo Sticks or Magnetic Cable Mount. Optional Cable Retractor Reel Mount can be added to support Cable Retractor Reel(s).
CSU-2-BB (Back-to-Back Mounting)	2	34” (864 mm)	55.38” (1407 mm)	12” (305 mm)	300 lb (136 kg)
CSU-2-SS (Side-by Side Mounting)	2	69” (1752 mm)	55.38” (1407 mm)	12” (305 mm)	600 lb (272 kg)
CSU-4	4	69” (1752 mm)	55.38” (1407 mm)	12” (305 mm)	1,200 lb (544 kg)
SHELF MOUNT
CSU-1-24	1	24” (610 mm)	55.38” (1407 mm)	34.25” (870 mm)	300 lb (136 kg)	Compatible with Cable Retractor Pogo Sticks or Magnetic Cable Mount.
CSU-1-36	1	36” (914 mm)	55.38” (1407 mm)	34.25” (870 mm)	300 lb (136 kg)
CSU-2-24	2	24” (610 mm)	55.38” (1407 mm)	57” (1448 mm)	600 lb (272 kg)
CSU-2-36	2	36” (914 mm)	55.38” (1407 mm)	57” (1448 mm)	600 lb (272 kg)
VERTICAL MOUNT
CSU-2-V	2	40–68” (1016–1727 mm)	99” (2515 mm)	12–68” (305–1727 mm)	600 lb (272 kg)	Compatible with Cable Retractor Reels. Cable Retractor Reel Mount included.
CSU-4-V	4	40–68” (1016–1727 mm)	99” (2515 mm)	40”–68” (1016–1727 mm)	1,200 lb (544 kg)
