Vertical Sheet Rack System

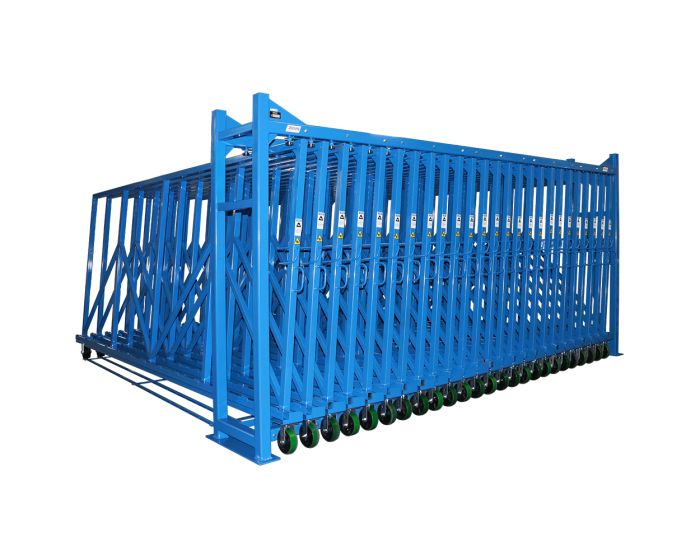

The Vertical Sheet Rack System (VSRS) from BHS is a series of 10 or 25 vertical roll-out racks nested in a steel, powder-coated frame. Each of these racks stores up to 2,000 pounds (907 kilograms) of sheet material, with maximum sheet dimensions of 12 feet by 6 feet and a depth of 2 inches (3.66 meters by 1.83 meters by 51 millimeters).
Reinforced tracks and heavy-duty casters ensure smooth travel, and a fully extended rack exposes the entire face of the sheet. That allows users to handle sheets via sheet lifts, magnets, hoists, forklifts, vacuum lifts, and virtually any other material handling system—including manual access. Custom sizes, dimensions, and rack counts are available on request.
Features & Benefits
- High-capacity sheet material storage
- Space-saving roll-out design
- Single-user operation
- Angled vertical trolley racks keep products safely contained
- Each rack stores sheets of up to 12’ x 6’ (varies by model), with a 2” depth (3.66 m x 1.83 m x 51 mm)
- Per-rack maximum weight capacity of 2000 lb (907 kg)
- Standard unit features 10 or 25 trolley racks (with custom configurations available)
- Lateral support bars store remnant pieces
- Steel, powder-coated frame for extreme durability
- Reinforced guide tracks ensure smooth rack travel
Model |
Capacity Per Rack |
Quantity of Carts |
Maximum Sheet Dimensions |
Footprint |
|||||
Length |
Height |
Thickness |
Overall Depth |
Overall Depth with Rack Extended |
Overall Width |
Overall Height |
|||
VSRS-2K-10-14472-2 |
2,000 lb 907 kg |
10 |
144” |
72” 1829 mm |
2” 50 mm |
174” 4420 mm |
314” 7976 mm |
83” 2108 mm |
97” 2464 mm |
VSRS-2K-10-12072-2 |
120” 3048 mm |
72” 1829 mm |
2” 50 mm |
150” 3810 mm |
266” 6756 mm |
83” 2108 mm |
97” 2464 mm |
||
VSRS-2K-10-9672-2 |
96” 2438 mm |
72” 1829 mm |
2” 50 mm |
126” 3200 mm |
218” 5537 mm |
83” 2108 mm |
97” 2464 mm |
||
VSRS-2K-10-9648-2 |
96” 2438 mm |
48” 1219 mm |
2” 50 mm |
126” 3200 mm |
218” 5537 mm |
82” 2083 mm |
74” 1880 mm |
||
VSRS-2K-25-14460-2 |
25 |
144” |
60” 524 mm |
2” 50 mm |
174” 4420 mm |
314” 7976 mm |
189” 4801 mm |
85” 2159 mm |
|
VSRS-2K-25-12060-2 |
120” 3048 mm |
60” 524 mm |
2” 50 mm |
150” 3810 mm |
266” 6756 mm |
189” 4801 mm |
85” 2159 mm |
||
VSRS-2K-25-9660-2 |
96” 2438 mm |
60” 524 mm |
2” 50 mm |
126” 3200 mm |
218” 5537 mm |
189” 4801 mm |
85” 2159 mm |
||
VSRS-2K-25-9648-2 |
96” 2438 mm |
48” 1219 mm |
2” 50 mm |
126” 3200 mm |
218” 5537 mm |
189” 4801 mm |
74” 1880 mm |
Note: Recommended minimum 36” (914 mm) clearance in front of rack and behind rack at full extension.
