Battery Roller Stands

As low as $1,222.00
Only %1 left
SKU
BS

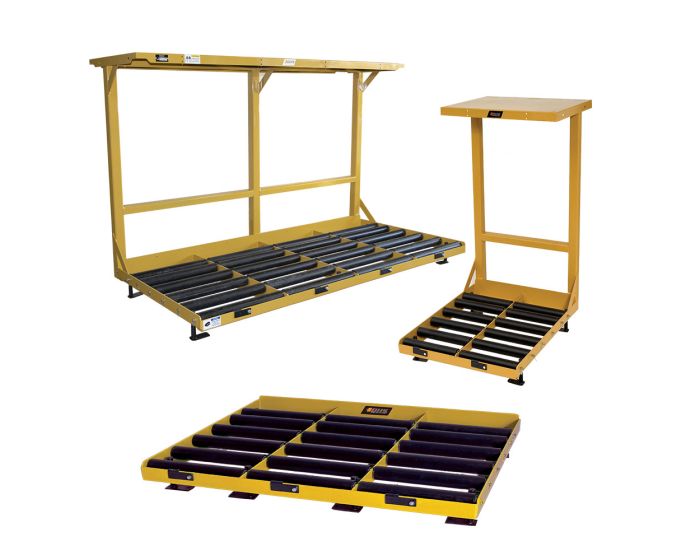

BHS Battery Roller Stands provide the ideal location to charge, store, and exchange lift truck batteries safely and efficiently.

These stands are NOT compatible with Stainless Steel Drip Pans (DK). For stands that hold drip pans, view Single Level System Stands

Battery Roller Stands provide the ideal location to charge, store, and exchange lift truck batteries safely and efficiently. Battery Roller Stands are constructed with heavy-duty steel for durability, with an acid-resistant powder coating. Spark-proof, poly-sleeved rollers simplify battery transfers.

Several compartment configurations, safety features, and functional additions are available to provide custom solutions. A charger shelf and CR-1 Cable Retractor mounting holes come standard.

Battery Roller Stands are built to withstand harsh battery room conditions, providing a lifetime of dependable service.

Features & Benefits

  • ± 0.5″ (± 13 mm) adjustable legs for added convenience
  • Charger shelf comes standard
  • Spark-proof, poly-sleeved rollers reduce corrosive build-up and extend product life
  • Standard roller height available from 4.5″ to 10″ (114 mm to 254 mm) Note: roller height required when ordering
  • CR-1 cable retractor mounting holes
  • Charger shelves come slotted, allowing for optional 6” (152 mm) shelf extension between stands

Model

Roller Compartment Width

Frame Width

Overall Width

BS12-2

12" / 305 mm

26" / 660 mm

27" / 690 mm

BS12-3

12" / 305 mm

38.875" / 987 mm

40" / 1020 mm

BS15-2

15" / 381 mm

32" / 813 mm

33" / 840 mm

BS15-3

15" / 381 mm

47.875" / 1216 mm

49" / 1245 mm

BS15-4

15" / 381 mm

63.75" / 1619 mm

65" / 1655 mm

BS15-6

15" / 381 mm

95.5" / 2426 mm

97" / 2465 mm

BS18-2

18" / 457 mm

38" / 965 mm

39" / 995 mm

BS18-3

18" / 457 mm

56.875" / 1445 mm

58" / 1475 mm

BS18-4

18" / 457 mm

75.75" / 1924 mm

77" / 1960 mm

BS18-6

18" / 457 mm

113.5" / 2883 mm

115" / 2925 mm

BS21-2

21" / 533 mm

44" / 1118 mm

45" / 1145 mm

BS21-3

21" / 533 mm

65.875" / 1673 mm

67" / 1705 mm

BS21-4

21" / 533 mm

87.75" / 2229 mm

89" / 2265 mm

BS24-2

24" / 610 mm

50" / 1270 mm

51" / 1295 mm

BS24-3

24" / 610 mm

74.875" / 1902 mm

76" / 1935 mm

BS27-2

27" / 686 mm

56" / 1422 mm

57" / 1450 mm

BS27-3

27" / 686 mm

83.875" / 2130 mm

85" / 2160 mm

BS30-2

30" / 762 mm

63.75" / 1619 mm

65" / 1655 mm

BS30-3

30" / 762 mm

95.5" / 2426 mm

97" / 2470 mm

BS33-2

33" / 838 mm

68" / 1727 mm

69" / 1752 mm

BS33-3

33" / 838 mm

101.875" / 2588 mm

103" / 2620 mm

BS36-1

36" / 914 mm

38" / 970 mm

39" / 995 mm

BS36-2

36" / 914 mm

75.75" / 1924 mm

77" / 1960 mm

BS36-3

36" / 914 mm

113.5" / 2883 mm

115" / 2925 mm

BS42-1

42" / 1067 mm

44" / 1118 mm

45" / 1145 mm

BS42-2

42" / 1067 mm

87.75" / 2229 mm

89" / 2265 mm

Note: If charger shelf is not required use suffix (-1). For example: BS18-3-1

Charger Shelf Forward (BS-FWD)
Space-saving shelf designed for battery rooms with limited space
Charger Shelf Rearward (BS-RWD)
Offsets shelf to rear to eliminate obstruction over compartment
Extended Compartment Depth (-46)*
Increases roller compartment depth to 46” (1168 mm)
Extended Compartment Depth (-48)*
Increases roller compartment depth to 48” (1219 mm)
Extended Compartment Depth (-50)*
Increases roller compartment depth to 50” (1270 mm)
Leg Extension (BS-LE)*
Increases roller height beyond standard height up to 25.9” (658 mm)
Rubber Backstop (BS-RBR-STP)
Cushions battery during placement into stand Note: One per stand required, slightly reduces compartment depth
Shelf Extension - 6” (BS-EXT-6)
Adds 6” (152 mm) extension between stands to support larger charger cabinets
Without Charger Shelf (-1)
Add suffix -1 to indicate without charger shelf when ordering
*Consult factory for this option
