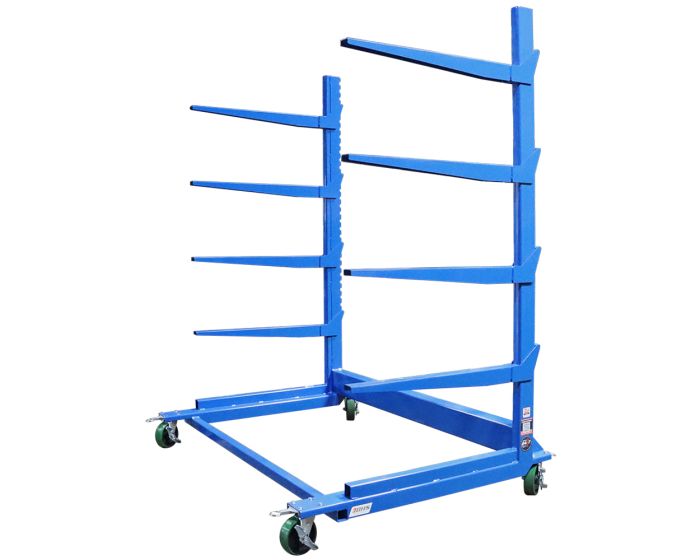

Cantilever Cart

$1,784.00

SKU

CCA2.5K-3974-86-5

Options

Set of Cantilever Arms + $100.00

Set of Arm End Stops + $38.00

Fork Pockets + $659.00

Tow Bar & Hitch + $160.00

Qty

Cantilever Carts have been used to handle everything from planter boxes to energy rail—and provide dependable storage for otherwise awkward materials.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

Pipes, bars, rigid conduit, and other long, narrow materials can be a challenge to handle. The Cantilever Cart provides a flexible solution, with fully adjustable shelf arms and frame anchor points at 2-inch (50-millimeter) vertical intervals. Users can easily configure and reconfigure shelf placement to accommodate virtually any material with a length of 72 inches (1.8 meters) or more.

Shelf arms are 36 inches (914 millimeters) long, with a carrying capacity of 300 pounds (136 kilograms) per shelf for high-volume material handling. The steel, powder-coated unit rolls on four phenolic casters, including brakes, to provide single-user mobility. Cantilever Carts from BHS have been used to handle everything from planter boxes to energy rail—and provide dependable storage for otherwise awkward materials.

Features & Benefits

Flexible cantilever storage for pipes, bars, rails, boxes, and other long, narrow materials
Phenolic swivel casters lock for stable storage and unlock for full mobility
Wide base supports transport via forklift
Steel, powder-coated frame for enhanced durability
4 sets of gravity-locking arms standard, with more available on request
Removable shelf arms created more usable height per shelf
Carrying capacity of 150 lbs (68 kg) per arm, 300 lbs (136 kg) per shelf, and 1,800 lbs (816 kg) per cart

CCA cannot be transported while carrying a load.

Specifications

Model

Maximum Capacity

Arm Support Length

Overall Width

Overall Depth

Overall Height

Arm Height Adjustment Range (From Ground)

Sets of Arms

Storage Levels

Weight

CCA2.5K-3974-86-5

2,500 lb

(1134 kg)

39”

(991 mm)

74”

(1880 mm)

56 3/8”

(1432 mm)

90 11/16

(2303 mm)

26”–86”

(660 mm–2184 mm)

390 lb

(177 kg)

Options

Set of Cantilever Arms (CCA-ARM): Add an additional set of gravity-locking arms for an extra storage shelf. Total unit load must not exceed Maximum Capacity.
Set of Arm End Stops (CCA-ES): End stops bolt onto the ends of cantilever arms to assist with load retention. Set of two included for one shelf.
Fork Pockets (CCA-FP): Allows transport of unit via forklift. CCA cannot be transported while carrying a load
Tow Bar & Hitch (CCA-TB): Provides the ability to transport an empty CCA via tugger to other areas of your facility at a maximum of 5 MPH. CCA cannot be transported while carrying a load
