Cantilever Rack

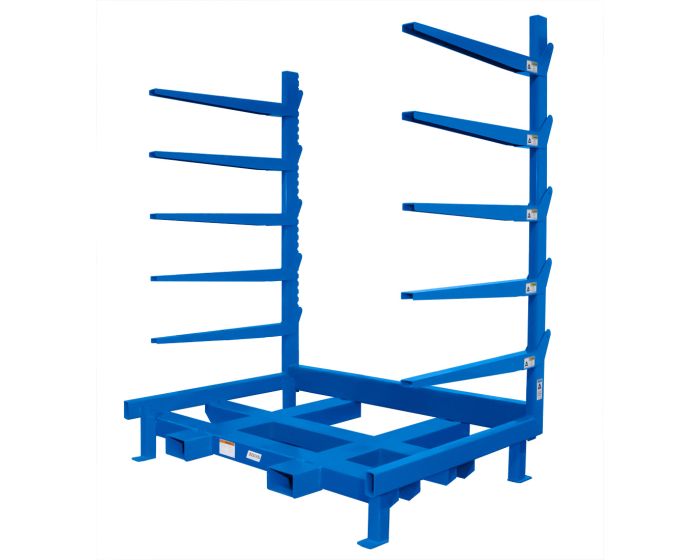

This steel-framed rack features five sets of cantilever shelf arms, each adjustable within 2-inch (50-millimeter) increments

Store long, narrow materials with the adjustable Cantilever Rack (CRA). This steel-framed rack features five sets of cantilever shelf arms, each adjustable within 2-inch (50-millimeter) increments—so you can configure the rack to handle a wide variety of awkward materials, from metal tubes and bars to rectangular planters.

Add additional shelf arms, or remove them to accommodate taller products. With 36-inch (914-millimeter) arms and a carrying capacity of 500 pounds (227 kilograms) per shelf (total unit capacity: 3,000 pounds [1361 kilograms]), this Cantilever Rack handles high volumes to maximize operational throughput.

Features & Benefits

  • Flexible cantilever storage for pipes, bars, rails, boxes, and other long, narrow materials
  • Fork pockets enable transport by forklift when not in use
  • Steel, powder-coated frame for enhanced durability
  • Adjustable shelf height in 2” (50 mm) increments
  • 5 sets of gravity-locking arms standard, with more available
  • Removable shelf arms creates more usable height per shelf
  • Carrying capacity of 250 lb (113 kg) per arm, 500 lb (227 kg) per shelf, and 3,000 lb (1361 kg) per rack
  • Total unit dimensions: 90.6” H x 74.6” W (2.3 m x 1.9 m)
  • Shelf arm support length: 39” (991 mm)


Maximum Capacity

Arm Support Length

Overall Width

Overall Depth

Overall Height

Arm Height Adjustment Range (From Ground)

Sets of Arms

Storage Levels



3,000 lb

(1361 kg)


(991 mm)

74 5/8”

(1895 mm)


(1346 mm)

90 5/8

(2302 mm)


(660 mm–2184 mm)



535 lb

(243 kg)

Set of Cantilever Arms (CCA-ARM)
Add an additional set of gravity-locking arms for an extra storage shelf. Total unit load must not exceed Maximum Capacity.
Set of Arm End Stops (CCA-ES)
End stops bolt onto the ends of cantilever arms to assist with load retention. Set of two included for one shelf.
