Cylinder Transporter

For pricing, contact us by calling 314-696-0200 or Request a Quote.
Only %1 left
SKU
CT
Store and transport industrial cylinders up to 12" diameter

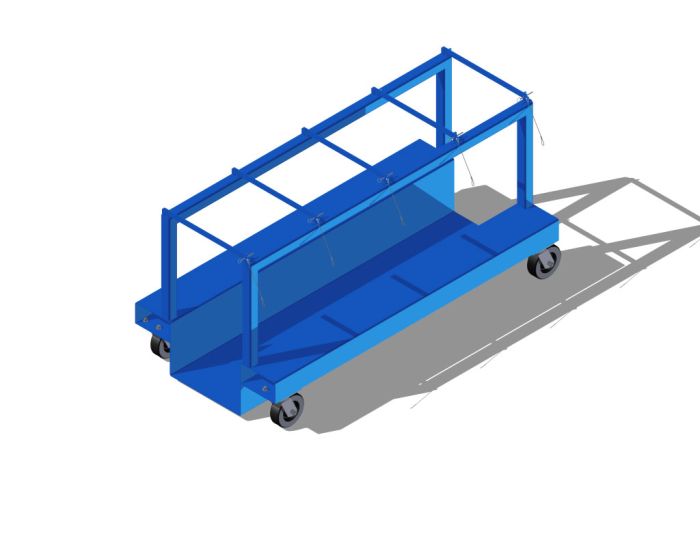

The Cylinder Transport (CT) is a heavy duty welded steel frame used to transport industrial cylinders. Equipped with (2) 6" swivel with brake and (2) 6" rigid polyurethane casters for effortless maneuverability anywhere in a facility or on a job site. Also included in the frame design are fork pockets for an additional means of transportation. Formed retainer bars keep cylinders firmly in place while in transit and are quickly released for access. Capacity ranges depending on the size of the cylinders.

Features & Benefits

  • Heavy-duty welded steel frame used to transport industrial gas cylinders
  • Easily maneuvered anywhere on job site
  • Two swivel with brake and two rigid 6” (152 mm) polyurethane casters
  • Two-way fork pockets offer alternate means of transport
  • Formed steel retainer bars are hinged and pin-secured between compartments to hold gas cylinders in place, and are quickly released for convenient access from either side for loading and unloading
  • Holds cylinders up to 12” (305 mm) diameter

MODEL

OVERALL WIDTH

OVERALL LENGTH

OVERALL HIEGHT

WEIGHT

CT-4

31.625” / 803 mm

64” / 1626 mm

31 7/8” / 810 mm

293 lb / 133 kg

CT-6

46.625” / 1184 mm

48.25” / 1226 mm

31 7/8” / 810 mm

275 lb / 125 kg

CT-8

46.625” / 1184 mm

64” / 1626 mm

31 7/8” / 810 mm

348 lb / 158 kg
