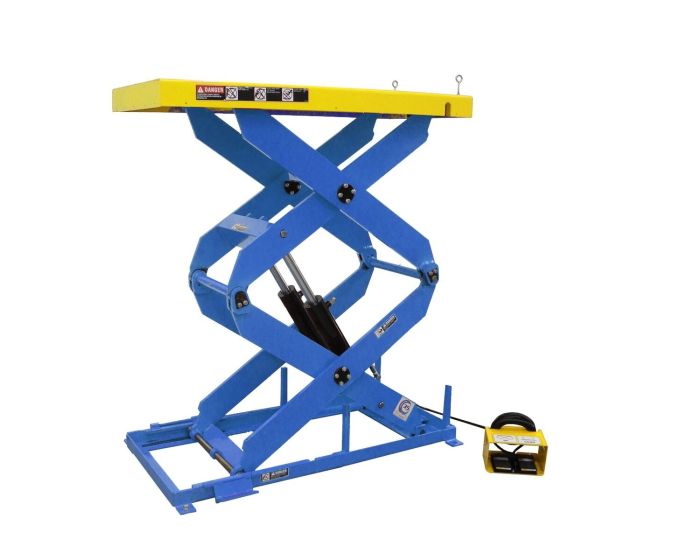

Dual Scissors Lift Table, 6,000 lb capacity

For pricing, contact us by calling 314-696-0200 or Request a Quote.
SKU
LTD6K
Engineered to provide safe and ergonomic positioning of loads up to 6,000 lb (2722 kg) by reducing bending, lifting, reaching, and strain at an affordable price.

The BHS Dual Scissor Lift Table vertically positions materials at increased heights for improved ergonomics and productivity. Engineered to provide safe and ergonomic positioning of loads up to 6,000 lb (2722 kg) by reducing bending, lifting, reaching, and strain at an affordable price.

BHS offers a number of alternate tabletops for the Dual Scissor Lift Table. Ball Transfer, Turntable, and Roller Conveyor tabletop attachments can make your operation even more effective, and they fit seamlessly with existing manufacturing processes. An Accordion Skirt Guard is available to enclose the underside of the lift table for extra protection from dirt and foreign objects.

Heavy-duty steel gives you years of reliable operation, while the included maintenance chocks let you lock the scissor lift for safety. BHS Dual Scissor Lift Tables are an excellent choice in warehouses, auto shops, and in dozens of other applications, and we offer a variety of options to suit your facility.

Features & Benefits:

  • 6,000 lb (2722 kg) capacity with many table widths available
  • Dual Scissors extend vertical reach
  • Heavy-duty, formed steel construction for added reliability
  • 230/460 V ac / 3 ph / 60 Hz power unit standard
  • Contoured scissor legs for improved precision, travel, and stability
  • Floor mounting tabs with 0.75” (19 mm) diameter holes (anchors and hardware not included)
  • Maintenance chocks included to lock scissors
  • Full width through pivot shafts for stability throughout the travel range
  • Durable, sealed and shielded roller bearings for maximum capacity and longevity
  • Durable powder coat finish with yellow tabletop to improve visibility and safety
  • Closed hydraulic circuit
  • Heavy-duty braided wire hydraulic lines for maximum burst strength and longevity
  • Hardened chrome piston rod and honed cylinder provide added column strength and cylinder sealing
  • Equipped with thermal overload protection and velocity fuses for additional safety
  • Hydraulic components contained within the lift table for maximum safety, floor space, and convenience
  • NEMA floor toggle switch included for easily accessible up/down function control
  • Meets ANSI Standard MH29.1:2012 for Industrial Scissor Lifts

Model

Capacity

Vertical Travel

Table Height

Table Dimensions

Power Unit

Min

Max

Width

Length

HP

Voltage

Elevation Time

LTD6K-24-48

6,000 lb

2722 kg

60.75”

1543 mm

11.5”

292 mm

72.188”

1834 mm

24”
610 mm

48”

1219 mm

*

480 V ac / 3 ph / 60 Hz

*

LTD6K-24-53

6,000 lb

2722 kg

60.75”

1543 mm

11.5”

292 mm

72.188”

1834 mm

24”
610 mm

53”
1346 mm

*

480 V ac / 3 ph / 60 Hz

*

LTD6K-36-48

6,000 lb

2722 kg

60.75”

1543 mm

11.5”

292 mm

72.188”

1834 mm

36”
914 mm

48”

1219 mm

*

480 V ac / 3 ph / 60 Hz

*

LTD6K-48-48

6,000 lb

2722 kg

60.75”

1543 mm

11.5”

292 mm

72.188”

1834 mm

48”

1219 mm

48”

1219 mm

*

480 V ac / 3 ph / 60 Hz

*

LTD6K-48-72

6,000 lb

2722 kg

60.75”

1543 mm

11.5”

292 mm

72.188”

1834 mm

48”

1219 mm

72”
1829 mm

*

480 V ac / 3 ph / 60 Hz

*

* Consult Factory for HP and elevation times

High Cycle (LT-HC)
For use in High Cycle warehouse settings. 200,000+ cycles per year.
Powered Drive (LT-PD)
A permanently fixed self-propelled DC powerhead drives the lift table. The frame is equipped with additional casters for easy maneuvering.
Accordion Skirt Guard (LT-ASG)*
Encloses underside of lift table, protecting the lift mechanism from dirt and foreign objects
Ball Transfer (LT-BT)*
Tabletop attachment utilizes fixed ball transfers to easily maneuver a load or for integration with other handling equipment
Loading Ramp (LT-LR)*
Ramp matches platform width and lowered height of lift table to provide ground level accessibility
Roller Conveyor (LT-RC)*
Tabletop attachment utilizes rollers for integration with other handling equipment
Turntable (LT-TT)*
Tabletop attachment rotates 360 degrees for positioning loads
* Option is bolted on for easy removal
