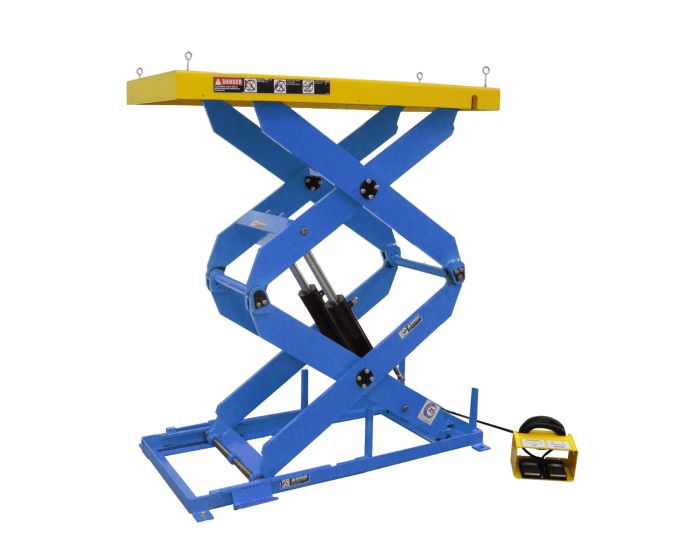

Dual Scissor Lift Table, 2,500 lb capacity
As low as
$10,488.00
Only %1 left
SKU
LTD2.5K
BHS Scissor Lift Tables (LTD-2.5K) has a 2,500 lb (1134 kg) service capacity and is available with different sized tabletops and options.
BHS Scissor Lift Tables (LTD-2.5K) maximize worker productivity in heavy duty commercial or industrial material handling. Engineered to provide safe and ergonomic positioning of loads up to 2,500 lb (1134 kg) by reducing bending, lifting, reaching, and strain at an affordable price. Chrome plated rams and polyurethane seals provide added column strength and cylinder longevity. Hydraulic components rated for 3,000 psi and the entire circuit is contained within the table for optimal safety, floor space, and convenience. Optional hand or foot operated controls available. Hinged table top allows easy access to power unit for maintenance, as well as mounted maintenance chocks for safely servicing equipment. Bright powder coat finish provides chemical, corrosion, and chip resistance. Heavy duty, formed and welded steel construction demonstrates reliability and strength for continuous duty cycle. Designed to achieve a minimal profile and footprint while providing maximum lift capability. The LT Series is ideal for handling bulky heavy materials while keeping workers ergonomically positioned to optimize performance and productivity. Meets ANSI Standard MH29.1:2012 for Industrial Scissor Lifts.
Features & Benefits
- 2,500 lb (1134 kg) capacity with many table widths available
- Heavy-duty, formed steel construction for added reliability
- 230/460 V ac / 3 ph / 60 Hz power unit standard
- Contoured scissor legs for improved precision, travel, and stability
- Floor mounting tabs with 0.75” (19 mm) diameter holes (anchors and hardware not included)
- Maintenance chocks included to lock scissors
- Full width through pivot shafts for stability throughout the travel range
- Durable, sealed and shielded roller bearings for maximum capacity and longevity
- Durable powder coat finish with yellow tabletop to improve visibility and safety
- Closed hydraulic circuit
- Heavy-duty braided wire hydraulic lines for maximum burst strength and longevity
- Hardened chrome piston rod and honed cylinder provide added column strength and cylinder sealing
- Equipped with thermal overload protection and velocity fuses for additional safety
- Hydraulic components contained within the lift table for maximum safety, floor space, and convenience
- NEMA floor toggle switch included for easily accessible up/down function control
- Meets ANSI Standard MH29.1:2012 for Industrial Scissor Lifts
|
Model |
Capacity |
Vertical Travel |
Table Height |
Table Dimensions |
Power Unit |
||||
|
Min |
Max |
Width |
Length |
HP |
Voltage |
Elevation Time |
|||
|
LTD2.5K-24-48 |
2,500 lb 1134 kg |
60.75” 1543 mm |
11.5” 292 mm |
72.188” 1834 mm |
24” |
48” 1219 mm |
3 |
480 V ac / 3 ph / 60 Hz |
18 s |
|
LTD2.5K-24-53 |
2,500 lb 1134 kg |
60.75” 1543 mm |
11.5” 292 mm |
72.188” 1834 mm |
24” |
53” |
3 |
480 V ac / 3 ph / 60 Hz |
18 s |
|
LTD2.5K-36-48 |
2,500 lb 1134 kg |
60.75” 1543 mm |
11.5” 292 mm |
72.188” 1834 mm |
36” |
48” 1219 mm |
3 |
480 V ac / 3 ph / 60 Hz |
18 s |
|
LTD2.5K-48-48 |
2,500 lb 1134 kg |
60.75” 1543 mm |
11.5” 292 mm |
72.188” 1834 mm |
48” 1219 mm |
48” 1219 mm |
3 |
480 V ac / 3 ph / 60 Hz |
18 s |
|
LTD2.5K-48-72 |
2,500 lb 1134 kg |
60.75” 1543 mm |
11.5” 292 mm |
72.188” 1834 mm |
48” 1219 mm |
72” |
3 |
480 V ac / 3 ph / 60 Hz |
18 s |
