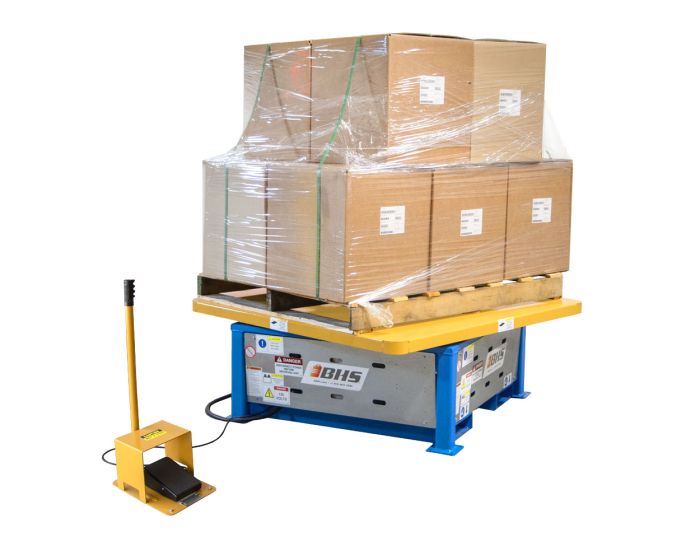

Electric Pallet Turntable

$7,839.00

SKU

PTE4K-4848

The Electric Pallet Turntable simplifies stretch-wrapping, but also supports pallet-building and depalletizing by bringing the work to the worker, not the other way around.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

The Electric Pallet Turntable rotates at speeds of up to 12 revolutions per minute, allowing operators to quickly wrap loads without strain or ergonomic risk. That allows a single user with a handheld film dispenser to secure 10 to 12 pallets every hour, improving productivity and workplace safety at once.

This steel pallet rotator supports loads of up to 4,000 pounds, and all standard pallet dimensions. It simplifies stretch-wrapping, but also supports pallet-building and depalletizing by bringing the work to the worker, not the other way around. High-profile design keeps all four edges of the tabletop open for loading and unloading, so lift trucks can approach from any angle. It’s an ideal addition to any pallet-handling operation.

Features & Benefits

48” by 48” (1.2 m) tabletop (with custom sizes available)
4,000 lb (1,814 kg) load capacity
Compatible with all standard size pallets
Variable-speed rotation from 0 to 12 revolutions per minute
Controlled by foot pedal, with 5-ft (1.5-m) cable and ergonomic handle
Elevated platform stands 18 3/16” (461.9 mm) high, with motor and controls beneath
Powered by any standard 120 volt, 20 amp outlet
Two-way fork pockets allow travel via lift truck
Pre-drilled anchor holes for permanent installation
Total unloaded unit weight of 563 lb (255.4 kg)

Specifications

Model	Capacity	Tabletop	Height	Weight
PTE4K-4848	4,000 lb (1814 kg)	48” x 48” (1219 mm x 1219 mm)	18.1875” (462 mm)	563 lb (255 kg)
