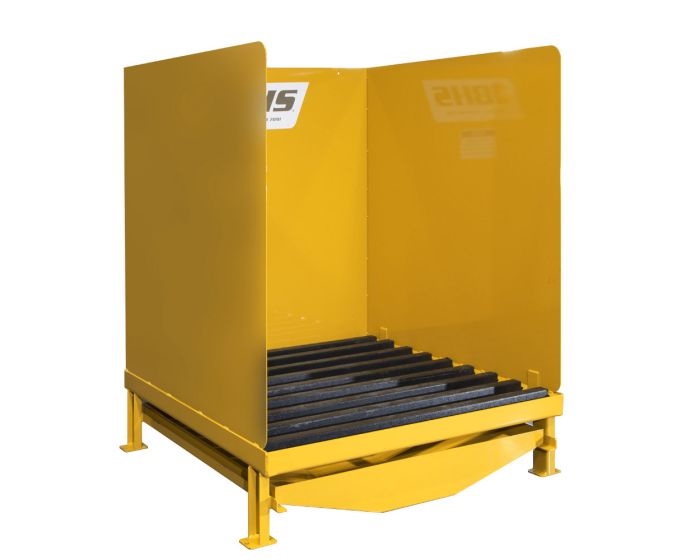

Hardwood Wash Station

As low as $3,103.00
Only %1 left
SKU
HWS
Forklift battery wash station equipped with an acid-resistant, non-conductive, polyethylene decking for vertically extracted forklift batteries.

The BHS Hardwood Wash Station (HWS) provides a safe and convenient space to wash vertically extracted lift truck batteries. Contain overspray and add life to your forklift batteries by using this rugged battery maintenance equipment.

The HWS has a recycled, polyethylene decking that is acid-resistant, non-conductive, and environmentally friendly. The 48-inch side panels keep wastewater confined to the station’s 23-gallon drain tray. The drain tray is removable for easy cleaning and has a 1-inch NPT coupling.

Both the mild steel and stainless steel models offer fork pockets as an optional feature. These welded pockets make transporting wash stations a simple and quick process.

The HWS is ideal for use with the BHS Recirculation/Neutralization Systems. Using the Hardwood Wash Station with one of these systems creates a closed loop for cleaning industrial batteries. This economical setup allows you to reuse wastewater and avoid disposal fees, which is good for budgets and the environment.

Features & Benefits

  • 12″ (305 mm) deck height standard
  • 48″ (1219 mm) side panels
  • 4,000 lb (1814 kg) load capacity
  • Recycled, polyethylene decking is acid resistant, non-conductive, and environmentally friendly
  • Drain tray is removable for easy cleaning and has 1” (25 mm) NPT coupling
  • Designed as stand-alone or for use with Recirculation / Neutralization System (RNS)

HWS-3

HWS-3-SS

Frame Construction

Mild Steel

Stainless Steel

Wash Deck Material

HDPE Poly Lumber

Drain Port Size

1” NPT / 25 mm

Drain Tray Capacity

23 gal / 87 L (Approximate)

Maximum Weight Capacity

4,000 lb / 1814 kg

Overall Depth

48” / 1219 mm

Overall Width

48” / 1219 mm

Overall Height

60” / 1524 mm (without option HWS-FP)

Height from Floor to Top of Wash Deck

12” / 305 mm

Wash Deck Area

16 ft2 / 1.5 m2

Shipping Weight

500 lb / 227 kg

Fork Pocket (HWS-FP)*
Welded fork pockets for added mobility Note: 17.75" (451 mm) deck height
Stainless Steel Fork Pockets (HWS-FP-SS)*
Welded fork pockets for added mobility (available on HWS-3-SS model only) Note: 17.75" (451 mm) deck height
* Not to be used while battery is on HWS
