Manual Mobile Lift Table

As low as $2,065.11
Only %1 left
SKU
MMLT

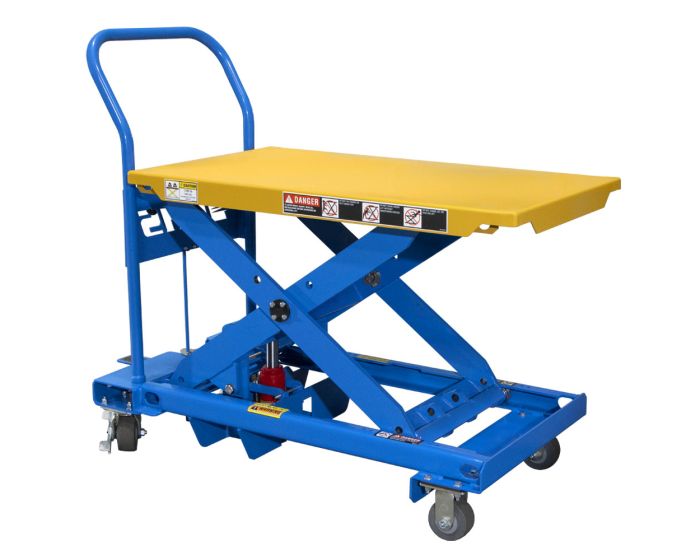

A manual mobile lift table with a 24" x 36" (610 mm 914 mm) tabletop platform.

BHS Manual Mobile Lift Tables (MMLT) are the portable ergonomic solution for many workplace demands, reducing the need for lifting, bending, and strain. The MMLT-350 has a 24" x 36" (610 mm 914 mm) tabletop platform. These foot operated, manual hydraulic lift tables effortlessly raise the load to a safe and comfortable working height to assist in order picking, assembly, positioning, transporting, and a variety of applications. Practical design does not require external air or power source. Mounted foot toggle pedal smoothly lowers platform with little effort from the operator. Angled grip handle and corrosion resistant, phenolic casters allow maximum effortless maneuverability throughout a facility or jobsite to meet diverse lifting needs. Included maintenance chocks and mechanical stop safely servicing equipment. Equipped with "maintenance free" bearings at all pivot points and sealed and shielded cam rollers to reduce the need for lubrication and promote stability and safety. Bright powder coat finish provides chemical, corrosion, and chip resistance. Heavy duty, formed and welded steel construction demonstrates reliability and strength for continuous duty cycle. The MMLT Series is the optimal mobile workstation to deliver durable and dependable handling solutions while increasing productivity at an affordable price. Meets ANSI Standard MH29.1:2012 for Industrial Scissor Lifts.

Features & Benefits

  • Durable powder coat finish with yellow tabletop to improve visibility and safety
  • Heavy-duty, formed steel construction for added reliability
  • Two swivel with brake and two rigid 4” (102 mm) corrosion-resistant urethane casters
  • Angled handle with adjustable grip for ease of movement and comfort while traveling with load
  • Maintenance retainers included for locking scissors
  • Durable, long life, steel cam rollers
  • Hydraulic components contained within the lift table for maximum safety, floor space, and convenience
  • Integral foot pedal for ambidextrous operation
  • Meets ANSI Standard MH29.1:2012 for Industrial Scissor Lifts and complies with LMPS

Model

Vertical Travel

Capacity

Table Height

Table Dimensions

Overall Dimensions

Strokes to Max Height

Min

Max

Width

Length

Width

Length

Height

MMLT-350

20”

508 mm

350 lb

159 kg

12.25”

312 mm

32.75”

832 mm

24”

610 mm

36”

914 mm

25.375”

645 mm

40.75”

1035 mm

38”

965 mm

80

MMLT-750

20”

508 mm

750 lb

340 kg

12.25”

312 mm

32.75”

832 mm

24”

610 mm

36”

914 mm

25.375”

645 mm

40.75”

1035 mm

38”

965 mm

80

MMLT-1200

20”

508 mm

1,200 lb

544 kg

12.25”

312 mm

32.75”

832 mm

24”

610 mm

42”

1067 mm

24”

610 mm

52.5”

1334 mm

44”

1118 mm

80

MMLTD-750

59.125”
1502 mm

750 lb

340 kg

16.875”

429 mm

76”
1930 mm

24”

610 mm

36”

914 mm

25.375”

645 mm

40.75”

1035 mm

58”
1473 mm

*Consult Factory

MMLTD-1200

59.125”
1502 mm

1,200 lb

544 kg

16.875”

429 mm

76”
1930 mm

24”

610 mm

42”

1067 mm

25.375”

645 mm

46.75”

1187 mm

58”
1473 mm

*Consult Factory

Accordion Skirt Guard (MMLT-ASG)*
Encloses underside of lift table, protecting the lift mechanism from dirt and foreign objects
Ball Transfer (MMLT-BT)*
Tabletop attachment utilizes fixed ball transfers to easily maneuver a load or for integration with other handling equipment
Roller Conveyor (MMLT-RC)*
Tabletop attachment utilizes rollers for integration with other handling equipment
