Self-Leveling Mobile Lift Tables

For pricing, contact us by calling 314-696-0200 or Request a Quote.
SKU
SMLT

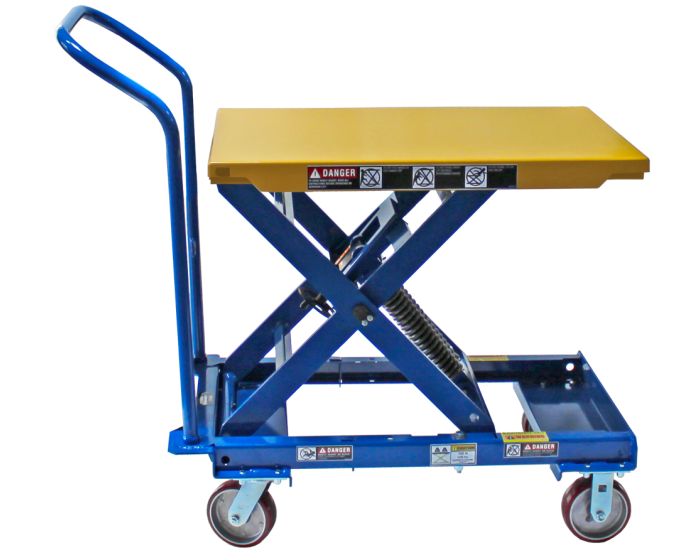

A self-leveling mobile lift table a tabletop platform powder coated in safety yellow for high visibility.

BHS Self Leveling Tables (SMLT) are ideal for a variety of applications and demands in the manufacturing, processing, and distribution industries at an affordable price. The SMLT has a service capacity of 250 lb (113 kg) to 750 lb (340 kg)- depending on the model- and a tabletop platform powder coated in safety yellow for high visibility.

The SMLT improves worker productivity by automatically raising and lowering the platform during loading & unloading without the need of an air or power source. The top of the load remains at a safe ergonomic height, reducing the need for bending, stooping, reaching, or straining. Easy-grip adjusting knob and labeled graduations offer fully adjustable spring tension for a variable load range without any spring modification or replacement. Included maintenance chocks and mechanical stop for safely servicing equipment. Corrosion resistant, polyurethane coated casters roll effortlessly throughout a facility or job site to meet diverse lifting needs.

The SMLT is equipped with "maintenance free" bearings at all pivot points and sealed and shielded cam rollers to reduce the need for lubrication and promote stability and safety. Bright powder coat finish provides chemical, corrosion, and chip resistance. Heavy-duty, formed and welded steel construction demonstrates reliability and strength for continuous duty cycle. The SMLT ergonomically positions the load at comfortable working height for optimum worker safety and productivity. Meets ANSI Standard MH29.1:2012 for Industrial Scissor Lifts.

Features & Benefits

  • Durable powder coat finish with yellow tabletop to improve visibility and safety
  • Heavy-duty, formed steel construction for added reliability
  • Two swivel with brake and two rigid 6” (152 mm) corrosion-resistant urethane casters
  • Angled handle for ease of movement and comfort while traveling with load
  • Maintenance retainers included for locking scissors
  • Durable, long life, steel cam rollers
  • Dual heavy-duty springs keep load level and at a safe, convenient working height
  • Adjustable spring tension with labeled graduations for quick and easy adjustments
  • Meets ANSI Standard MH29.1:2012 for Industrial Scissor Lifts and complies with LMPS

Model

Vertical Travel

Capacity

Height

Table

Overall Dimensions

Min

Max

Width

Length

Width

Length

Height

SMLT-250-2436

23.75”

603 mm

250 lb

113 kg

15.125”

384 mm

38.875”

987 mm

24”

610 mm

36”

914 mm

24”

610 mm

36”

914 mm

38.875”

987 mm

SMLT-250-4048

23.75”

603 mm

250 lb

113 kg

15.125”

384 mm

38.875”

987 mm

40”

1016 mm

48”

1219 mm

40”

1016 mm

48”

1219 mm

38.875”

987 mm

SMLT-450-2436

23.75”

603 mm

450 lb

204 kg

15.125”

384 mm

38.875”

987 mm

24”

610 mm

36”

914 mm

24”

610 mm

36”

914 mm

38.875”

987 mm

SMLT-450-4048

23.75”

603 mm

450 lb

204 kg

15.125”

384 mm

38.875”

987 mm

40”

1016 mm

48”

1219 mm

40”

1016 mm

48”

1219 mm

38.875”

987 mm

SMLT-750-2442

23.75”

603 mm

750 lb

340 kg

15.125”

384 mm

38.875”

987 mm

24”

610 mm

42”

1067 mm

24”

610 mm

42”

1067 mm

38.875”

987 mm

SMLT-750-4048

23.75”

603 mm

750 lb

340 kg

15.125”

384 mm

38.875”

987 mm

40”

1016 mm

48”

1219 mm

40”

1016 mm

48”

1219 mm

38.875”

987 mm

Accordion Skirt Guard (SMLT-ASG)*
Encloses underside of lift table, protecting the lift mechanism from dirt and foreign objects
Ball Transfer (SMLT-BT)*
Tabletop attachment utilizes fixed ball transfers to easily maneuver a load or for integration with other handling equipment
Roller Conveyor (SMLT-RC)*
Tabletop attachment utilizes rollers for integration with other handling equipment
40” x 48” Tabletop (SMLT-4048)
Larger tabletop area offers more workspace, measuring 40” wide by 48” long (1016 mm x 1219 mm)
Fork Pockets (SMLT-FP)
Two-way fork pockets allow fork access from side of unit for alternate form of transport
Fork Pockets with Tine Locks (SMLT-FPT)
Two-way fork pockets allow fork access from side of unit for alternate form of transport. Tine locks secure unit to lift truck during tranport.
No Handle Bar (SMLT-B)
Lift table fabricated without the handle bar reduces overall length by 7.8125” (198 mm)
Tabletop (SMLT-TT)
Tabletop attachment rotates 360 degrees for positioning loads
* Option is bolted on for easy removal.
