Powered Mobile Dual Scissors Lift Tables

As low as $6,846.00
Only %1 left
SKU
PMLTD

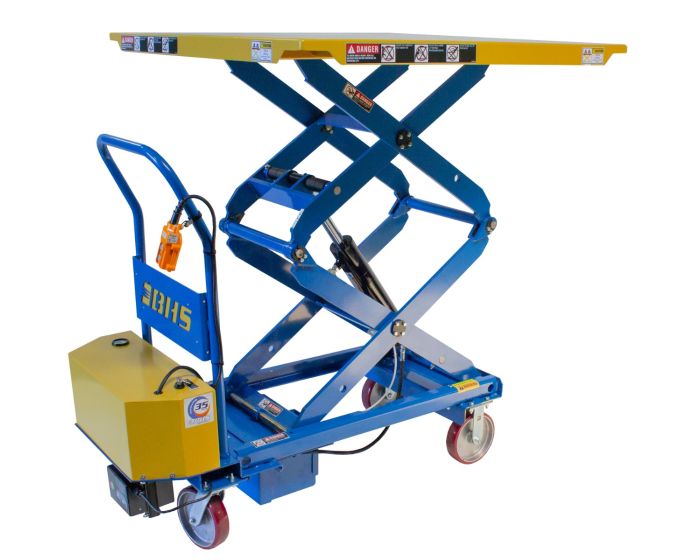

The PMLTD has dual scissors to extend vertical reach to 76", and a tabletop powder coated in safety yellow for high visibility.

BHS Powered Mobile Dual Scissor Lift Tables (PMLTD) maximize worker productivity by providing an ergonomic solution to heavy lifting, bending, strain, and fatigue. The PMLTD has dual scissors to extend vertical reach, and several tabletop sizes are available (all tabletops are powder coated in safety yellow for high visibility.)

The PMLTD is engineered to provide a safe and maneuverable portable workstation at an affordable price, lifting loads up to 76". On-board DC power unit features thermal overload switch, pressure gauge, and adjustable lowering speed valve for added safety. Powered by (2) 12 V deep-cycle extended-life "maintenance free" AGM batteries. Battery compartment is completely sealed and protected, yet easily accessible for maintenance. Power unit enclosed in a protected case with LED display discharge indicator and hour meter, in addition to built-in automatic waterproof 120 V ac charger with 6 ft cable. Convenient hand operated on/off, up/down pendant can be stored in mounted caddie for quick access and safe function.

The PMLTD includes maintenance chocks and mechanical stop for safely servicing equipment. Corrosion resistant, polyurethane coated casters roll effortlessly throughout a facility or jobsite to meet diverse lifting needs. Equipped with "maintenance free" bearings at all pivot points and sealed and shielded cam rollers to reduce the need for lubrication and promote stability and safety. Bright powder coat finish provides chemical, corrosion, and chip resistance. Heavy duty, formed and welded steel construction demonstrates reliability and strength for continuous duty cycle. The PMLTD is ideal for optimizing worker productivity by safely accommodating lifting, transporting, and positioning and reducing workplace strain and injury. Meets ANSI Standard MH29.1:2012 for Industrial Scissor Lifts.

Features & Benefits

  • Durable powder coat finish with yellow tabletop to improve visibility and safety
  • Dual scissor legs designed for maximum lift height and collapsibility
  • Heavy-duty, formed steel construction for added reliability
  • Two swivel with brake and two rigid 8” (203 mm) corrosion-resistant urethane casters
  • Angled handle for ease of movement and comfort while traveling with load
  • Maintenance retainers included for locking scissors
  • Durable, long life, steel cam rollers
  • Enclosed and protected battery compartment
  • Closed hydraulic circuit
  • Thermal overload protection
  • Adjustable lowering speed valve
  • 120 V ac automatic, waterproof charger with LED status light indicator, reverse-polarity protection, and 2’ (0.61 m) power cable
  • LED display battery discharge indicator with hour meter
  • Easily accessible up/down toggle switch
  • DC motor powered by (1) 12 V dc sealed extended life “maintenance free” battery
  • Equipped with on/off keyswitch and removable key to lock out machine from unauthorized personnel
  • Meets ANSI Standard MH29.1:2012 for Industrial Scissor Lifts and complies with LMPS

Model

Vertical Travel

Capacity

Table Height

Table Dimensions

Overall Dimensions

Lift Speed Max Height

Min

Max

Width

Length

Width

Length

Height

PMLTD-750-2442

59.813”

1519 mm

750 lb

340 kg

16.875”

429 mm

76.689”

1948 mm

24” / 610 mm

42” / 1067 mm

24” / 610 mm

54” / 1372 mm

76.689”

1948 mm

17 s

PMLTD-750-SM-2442

59.813”

1519 mm

750 lb

340 kg

16.875”

429 mm

76.689”

1948 mm

42” / 1067 mm

24” / 610 mm

42” / 1067 mm

36” / 914 mm

76.689”

1948 mm

17 s

PMLTD-750-2448

59.813”

1519 mm

750 lb

340 kg

16.875”

429 mm

76.689”

1948 mm

24” / 610 mm

48” / 1219 mm

24” / 610 mm

48” / 1219 mm

76.689”

1948 mm

17 s

PMLTD-750-SM-2448

59.813”

1519 mm

750 lb

340 kg

16.875”

429 mm

76.689”

1948 mm

48” / 1219 mm

24” / 610 mm

48” / 1219 mm

36” / 914 mm

76.689”

1948 mm

17 s

PMLTD-750-SM-3272

59.813”

1519 mm

750 lb

340 kg

16.875”

429 mm

76.689”

1948 mm

72” / 1829 mm

32” / 813 mm

72” / 1829 mm

44” / 1118 mm

76.689”

1948 mm

17 s

PMLTD-750-4848

59.813”

1519 mm

750 lb

340 kg

16.875”

429 mm

76.689”

1948 mm

48”

1219 mm

48”

1219 mm

48”

1219 mm

60”

1524 mm

76.689”

1948 mm

17 s

PMLTD-1200-2442

59.813”

1519 mm

1,200 lb

544 kg

16.875”

429 mm

76.689”

1948 mm

24” / 610 mm

42” / 1067 mm

24” / 610 mm

54” / 1372 mm

76.689”

1948 mm

17 s

PMLTD-1200-SM-2442

59.813”

1519 mm

1,200 lb

544 kg

16.875”

429 mm

76.689”

1948 mm

42” / 1067 mm

24” / 610 mm

42” / 1067 mm

36” / 914 mm

76.689”

1948 mm

17 s

PMLTD-1200-2448

59.813”

1519 mm

1,200 lb

544 kg

16.875”

429 mm

76.689”

1948 mm

24” / 610 mm

48”

1219 mm

24” / 610 mm

60”

1524 mm

76.689”

1948 mm

17 s

PMLTD-1200-SM-2448

59.813”

1519 mm

1,200 lb

544 kg

16.875”

429 mm

76.689”

1948 mm

48”

1219 mm

24” / 610 mm

48”

1219 mm

36” / 914 mm

76.689”

1948 mm

17 s

PMLTD-1200-SM-3272

59.813”

1519 mm

1,200 lb

544 kg

16.875”

429 mm

76.689”

1948 mm

72” / 1829 mm

32” / 813 mm

72” / 1829 mm

44” / 1118 mm

76.689”

1948 mm

17 s

PMLTD-1200-4848

59.813”

1519 mm

1,200 lb

544 kg

16.875”

429 mm

76.689”

1948 mm

48”

1219 mm

48”

1219 mm

48”

1219 mm

60”

1524 mm

76.689”

1948 mm

17 s

Accordion Skirt Guard (PMLT-ASG)*
Encloses underside of lift table, protecting the lift mechanism from dirt and foreign objects
Ball Transfer (PMLT-BT)*
Tabletop attachment utilizes fixed ball transfers to easily maneuver a load or for integration with other handling equipment
Roller Conveyor (PMLT-RC)*
Tabletop attachment utilizes rollers for integration with other handling equipment
Self-Contained Charger (PMLT-CHGR)
Fully enclosed 110 V ac charger
