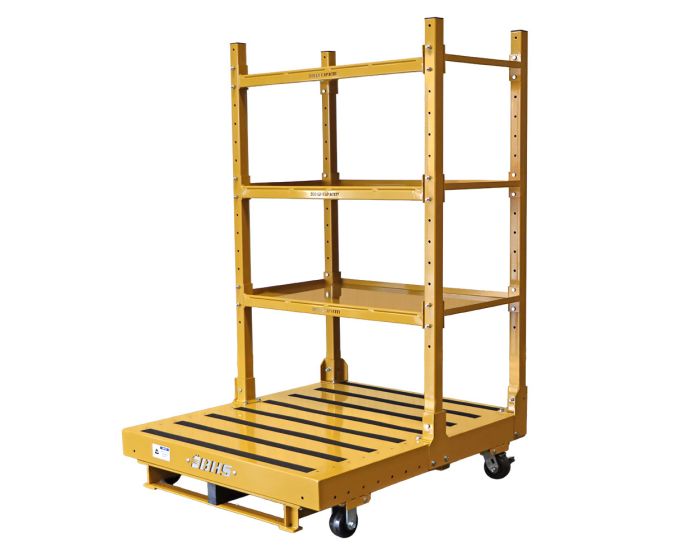

Modular Order Picker Cart

As low as $700.00

Only %1 left

SKU

OPCM

Select Deck Width

Select Deck Depth

Fork Pockets (maximum outside of fork width is 30") - selection corresponds with the Deck Depth chosen

*IF FORK POCKETS ADDED* Select vertical offset between operator platform and top of fork

Shelves: Choose Quantity & Depth (24”, 30”, 36”, or 42”)

3-Sided Guarding for models WITH shelves (should match the shelf depth chosen above)

3-Sided Guarding for models WITHOUT shelves

Handle

Additional Options

Adjustable Fork Guides + $42.00

Handrail Kit (applicable to models without shelves) + $858.00

Anti-Skid Tape + $122.00

Custom Lasered Logo Plate + $52.00

Qty

Catalog (PDF)

Bolt-on components provide quick configuration, so you can use one cart for stocking, picking, overhead maintenance, and more.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

Modular Order Picker Carts offer custom performance without extended lead times. Bolt-on components allow you to configure carts for any task, on or off lift truck forks. Heavy duty casters (two rigid, two swiveling, with brakes) and optional push bars offer high-capacity, ergonomic handling on the ground. Universal fork pockets with optional guides ensure fork truck compatibility. Bases fit seamlessly against order picker operator platforms, eliminating the hazards of gaps and height differences.

Features & Benefits

Shelves adjust to required height
Options include push handles, handrails, fork pockets, guarding, and more
Light-weight, high-strength construction optimizes capacity for fork trucks
Custom colors, sizes, and shapes available on request

Specifications

MODEL	WIDTH	DEPTH	PLATFORM HEIGHT	PLATFORM CAPACITY	WEIGHT
OPCM-4042	40” (1016 mm)	42” (1067 mm)	9.9” (252 mm)	2,000 lb (907 kg)	85 lb (39 kg)
OPCM-4048		48” (1219 mm)			100 lb (45 kg)
OPCM-4060		60” (1524 mm)			130 lb (59 kg)
OPCM-4242	42” (1067 mm)	42” (1067 mm)			90 lb (41 kg)
OPCM-4248		48” (1219 mm)			105 lb (48 kg)
OPCM-4260		60” (1524 mm)			135 lb (61 kg)
OPCM-4842	48” (1219 mm)	42” (1067 mm)			105 lb (48 kg)
OPCM-4848		48” (1219 mm)			120 lb (54 kg)
OPCM-4860		60” (1524 mm)			140 lb (64 kg)
OPCM-6042	60” (1524 mm)	42” (1067 mm)			120 lb (54 kg)
OPCM-6048		48” (1219 mm)			135 lb (61 kg)
OPCM-6060		60” (1524 mm)			155 lb (70 kg)

Options

Fork Pockets (OPCMF-FP): Open fork pockets enable proper attachment of the cart to the order picker truck. Maximum outside of fork width is 30”. Consult factory to ensure correct size is ordered.
Adjustable Fork Guides (OPCMF-FP-GUIDE): Bolt-in, galvanized panels reduce outside fork pocket dimension to 27”, 25”, or 23” depending on installation position, creating a tighter fit within fork pocket compartment for any order picker truck.
Shelf Kit (OPCM-1TIER/2TIER/3TIER): Add one, two, or three shelves, available in 24”, 30”, 36”, or 42” depths. Each shelf features a 300 lb capacity, and adjusts in 3” height increments. OPCM can ship with shelves installed at desired heights if identified at time of order
Guarding (OPCM-GRD/GRDS): Slotted steel guarding helps keep the load contained, running the depth of the shelves and along the rear (GRDS). Guarding is also available for models without shelves (GRD) – identify depth at time of order (24”, 30”, 36”, or 42”).
Handle (OPCM-HDL): Available for configurations with shelves. Ergonomically maneuver cart by hand with a handle that bolts to rear of shelving or guarding.
Push Handle (OPCM-PUSH): Available for configurations without shelves. Ergonomically maneuver cart by hand with a bolton push handle. Adds 31.6” height to cart.
Handrails (OPCMF-HR): Bolt-on steel handrails run entire depth and along back of deck. Includes kick plate and six safety harness attachment points. Adds 47.7” height to cart.
Anti-Skid Tape (SKIDTAPE): Textured tape on the platform deck adds traction.
Custom Lasered Logo (OPCMF-LOGO): Add a laser-cut logo plate to the rear of the cart to incorporate your company’s branding.
Custom Color: BHS Yellow is the standard powder-coat paint color for visibility in warehouses, however customers may choose from other colors. For more details, visit our Custom Colors webpage
