Narrow Parallel Reel Payout

As low as $2,754.00

Only %1 left

SKU

PRP-N

Model Options

Other Options

Casters (PRP-C) + $89.00

Pull Brake Clamp (PRP-PB-C) + $156.00

Handle (PRP-HDL-C) + $310.00

Auxiliary Ground Reel & Attachment (PRP-AUX) + $1,205.00

Floor Lock (PRP-FL) (Caster option required) + $52.00

Qty

Catalog (PDF)

The PRP-N is Narrow models are built with a 33.75” base to easily fit through 34” doors and tight aisles and is equipped with four-way fork pockets for convenient transport and optimal positioning of the unit.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

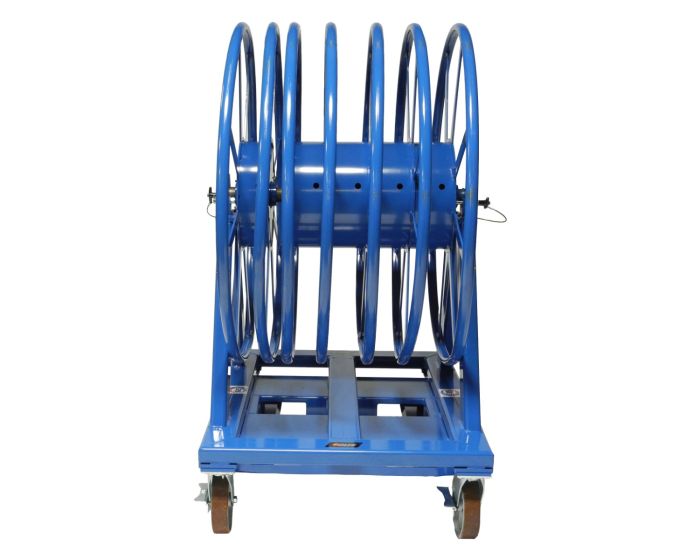

The BHS Narrow Parallel Reel Payout (PRP-N) simplifies cable pulling with free-spinning, multi-compartment reels, providing an even payout. The PRP-N is Narrow models are built with a 33.75” base to easily fit through 34” doors and tight aisles and is equipped with four-way fork pockets for convenient transport and optimal positioning of the unit. The PRP-N is available in several models with 6 reel combinations to hold multiple cables on one master unit. Optional casters allow the PRP-N to be maneuvered manually.

Features & Benefits:

Narrow models feature a shortened base frame designed to fit 34” (864 mm) minimum door openings for use inside an existing facility or new construction
Heavy-duty steel construction for added reliability
Four-way fork pocket design enables transporting from the ends or sides of the unit by pallet truck or forklift, allowing optimum positioning (pallet truck not compatible with casters option)
2” (51 mm) solid steel center shaft
Shaft safety locks equipped with locking pin
Free-spinning compartments provide an even payout
Individual hub locking to prevent unwanted payout when fewer cables are required
2” x 4” x 0.25” (51 mm x 102 mm x 6 mm) wall tube base frame design for maximum durability
0.75”, 1”, and 1.13” (19 mm, 25 mm, and 29 mm) arbor holes for a variety of wire gauges
0.75” (19 mm) UHMW alignment strips for center shaft prevent wear of components

Specifications

Model	Configuration	Overall Height	Overall Width	Overall Length	Shipping Weight	Rated Load Capacity	Height with Casters
PRP-N-1	RN-STAND + RN-1 + RN-4	55.31” / 1405 mm	33.75” / 858 mm	44” / 1118 mm	715 lb / 325 kg	5,000 lb / 2268 kg	61.31” / 1557 mm
PRP-N-2	RN-STAND + (2) RN-1 + RN-3	55.31” / 1405 mm	33.75” / 858 mm	44” / 1118 mm	820 lb / 372 kg	5,000 lb / 2268 kg	61.31” / 1557 mm
PRP-N-3	RN-STAND + (3) RN-1 + RN-2	55.31” / 1405 mm	33.75” / 858 mm	44” / 1118 mm	845 lb / 384 kg	5,000 lb / 2268 kg	61.31” / 1557 mm
PRP-N-4	RN-STAND + (4) RN-1	55.31” / 1405 mm	33.75” / 858 mm	44” / 1118 mm	871 lb / 395 kg	5,000 lb / 2268 kg	61.31” / 1557 mm
PRP-N-4-1	RN-STAND + RN-1 + RN-4-1	55.31” / 1405 mm	33.75” / 858 mm	44” / 1118 mm	871 lb / 395 kg	5,000 lb / 2268 kg	61.31” / 1557 mm
PRP-N-5	RN-STAND + (5) RN-1	55.31” / 1405 mm	33.75” / 858 mm	44” / 1118 mm	871 lb / 395 kg	5,000 lb / 2268 kg	61.31” / 1557 mm

Options

Casters (PRP-C): 8” (203 mm) quick disconnect, corrosion resistant urethane casters for mobility (2 locking swivel casters and 2 non-locking, fixed casters)
Floor Lock (PRP-FL): Locking floor brake prevents unwanted movement of the unit
Pull Brake Clamp (PRP-PB-C): One drop-down self-leveling steel arm capped with neoprene pad. Order four per PRP unit for maximum stability during cable payout.
Handle (PRP-HDL-C): One bolt-on clamp handle for maneuvering PRP frame. Handle slides out of the receiver tube and can be oriented in any direction. Order up to four handles per frame.
Auxiliary Ground Reel & Attachment (PRP-AUX): Add a single spinning reel to the outer frame of the reel stand; includes R-1 Reel and attachment mechanism
