Powered Mobile Skid Tilter

More Views

Powered Mobile Skid Tilter

Part #PMST

$4,400.00

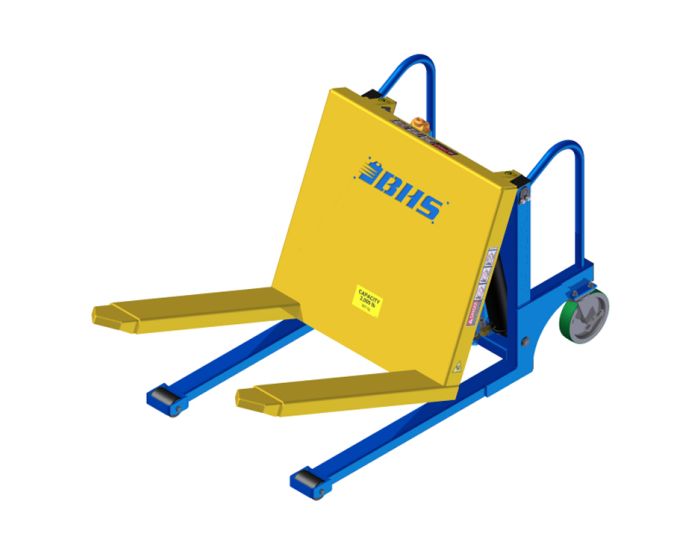

Powered Mobile Skid Tilter (PMST) improves productivity and ergonomics by tilting loads up to a comfortable working height. A hydraulic power unit is contained and guarded within the unit and features a push button control. The PMST is equipped with two casters, polyurethane load rollers for effortless maneuverability and is available in fork over or straddle style operation.

Features & Benefits:

  • Heavy-duty, formed steel construction for added reliability
  • Angled push bars for effortless maneuverability
  • Maintenance chocks included to lock unit
  • Durable powder coat finish with yellow tilt-top to improve visibility and safety
  • Enclosed hydraulic circuit
  • Heavy-duty braided wire hydraulic lines for maximum burst strength and longevity
  • Hardened chrome piston rod and honed cylinder provide added column strength and cylinder sealing
  • Equipped with thermal overload protection and velocity fuses for additional safety
  • Hydraulic components contained within the tilt table for maximum safety, floor space, and convenience
  • Tilts up to 90°
  • Two 8” (203 mm) diameter x 2” (51 mm) wide locking, swivel, polyurethane casters and polyurethane load rollers for transport
  • Push button control with a caddy
  • 3.375” (86 mm) lowered height and 40” (1016 mm) raised height
  • Models available with 2,000 lb or 4,000 lb (907 kg or 1814 kg) load capacity

Options

* Required Fields

Please select the capacity and style of which is required.

Specifications

Additional Information

Mfr. Part Number No
Manufacturer BHS
Capacity 2,000 lb (907 kg) or 4,000 lb (1814 kg)
Lowered Height 3.375" (86 mm) on the 4034 models and 3.5" (89 mm) on the 4024 models
Raised Height 38.375" (975 mm) on the 4034 models and 40" (1016 mm) on the 4024 models
Overall Width 34" (864 mm) on the 4034 models and 52" (1321 mm) on the 4024 models
Overall Length 63.5" (1613 mm) on the 4034 models and 54" (1372 mm) on the 4024 models
Overall Height 35.4375" (900 mm) on the 4034 models and 34" (864 mm) on the 4024 models
Fork Length 40” (1016 mm) on all models
Maximum Tilt Angle 90° on all models
Color OSHA Blue and OSHA Safety Yellow
Manufacturer's Website http://na.bhs1.com/
