Mobile Gaylord Dumper

For pricing, contact us by calling 314-696-0200 or Request a Quote.

Only %1 left

SKU

GLD

Catalog (PDF)

Mobile Gaylord Dumpers (GLD) provide full-service material handling for Gaylord containers and other bulk containers.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

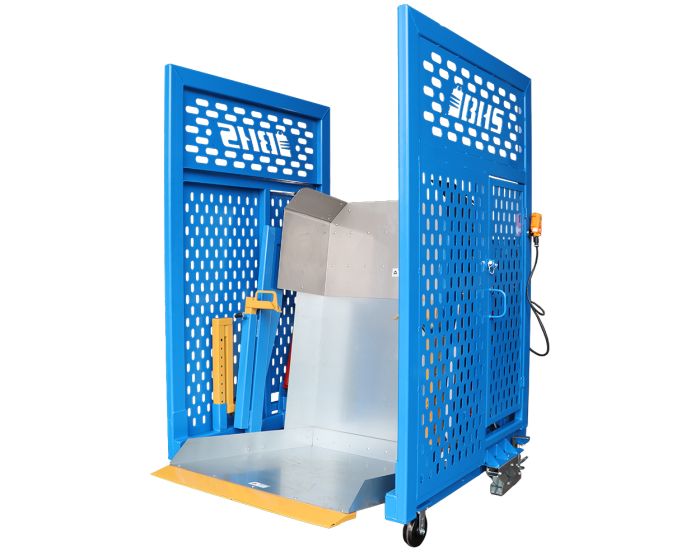

Mobile Gaylord Dumpers (GLD) provide full-service material handling for Gaylord containers and other pallet-sized bins. An adjustable restraint bar holds all types of pallet-sized containers in place for dumping contents.

Mobile Gaylord Dumpers were designed specifically for Gaylord containers. Choose between models rated for loads of 2,000 pounds or 4,000 pounds. Both designs feature rugged steel construction and an impact- and chemical-resistant powder coating for optimal strength and durability.

Contact the Solus Group sales team at 314-696-0200 for more information.

Features & Benefits

Tilts and empties pallet-sized containers
Effortlessly empties contents of Gaylords
Adjustable restraints allows handling of all sizes of Gaylords, including D and E
Heavy-duty steel construction
Powder coating resists scratches and corrosion
Braided wire hydraulic lines extend longevity with superior burst strength
Closed hydraulic circuit limits maintenance tasks
Smooth-rolling casters provide total mobility
Dual floor brakes hold the unit in place during use
Simple, push button operation positions load for access or dumping
Units can be custom-built to any specifications

Specifications

Model	Capacity	Compartment Width	Overall Width	Overall Depth	Overall Height	Overall Height when Dumping	Tip Height	Weight
GLD-2K-M	2,000 lb (907 kg)	43.5” (1105 mm)	56 13/16” (1443 mm)	66 1/16” (1678 mm)	56 13/16” (1443 mm)	129 3/16” (3281 mm)	54 5/8” (1387 mm)	990 lb (449 kg)
GLD-4K-M	4,000 lb (1814 kg)	43.5” (1105 mm)	56 13/16” (1443 mm)	66 1/16” (1678 mm)	56 13/16” (1443 mm)	129 3/16” (3281 mm)	54 5/8” (1387 mm)	1060 lb (481 kg)

Model

Capacity

Compartment Width

Overall Width

Overall Depth

Overall Height

Overall Height when Dumping

Tip Height

Weight

GLD-2K-M

2,000 lb

(907 kg)

43.5”

(1105 mm)

56 13/16”

(1443 mm)

66 1/16”

(1678 mm)

56 13/16”

(1443 mm)

129 3/16”

(3281 mm)

54 5/8”

(1387 mm)

990 lb

(449 kg)

GLD-4K-M

4,000 lb

(1814 kg)

43.5”

(1105 mm)

56 13/16”

(1443 mm)

66 1/16”

(1678 mm)

56 13/16”

(1443 mm)

129 3/16”

(3281 mm)

54 5/8”

(1387 mm)

1060 lb

(481 kg)

Compatible with gaylords 14”–50” (356 mm–1270 mm) in height and up to 52” (1321 mm) in depth. Gaylords must have rigid base.

Options

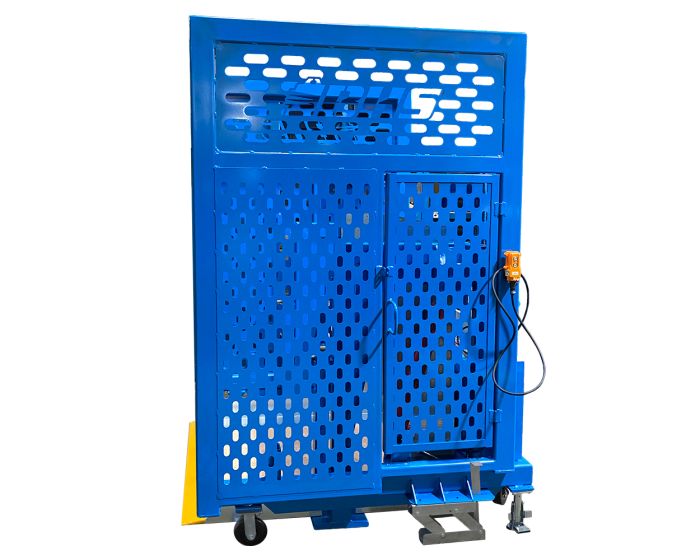

Guarding (GLD-GRD): Guarding option for left-hand or right-hand orientation to protect operator from contact with items being dumped**

**Consult Factory
