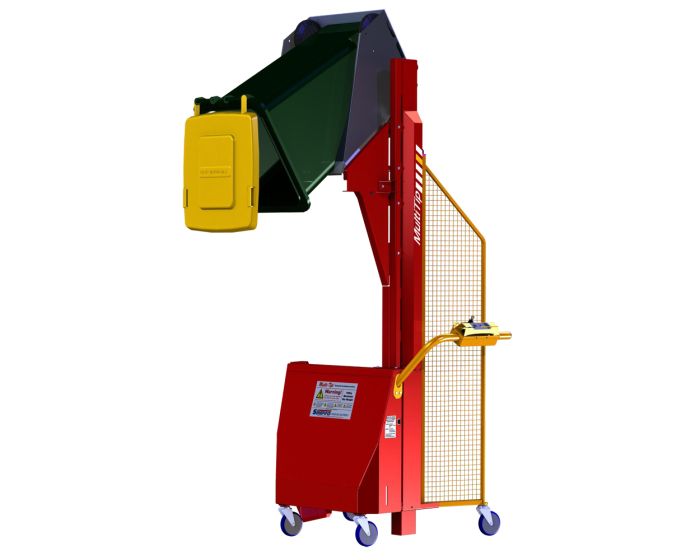

Multi-Tip® Hydraulic Bin Dumper

For pricing, contact us by calling 314-696-0200 or Request a Quote.

SKU

Improve efficiency and safety with the Multi-Tip® bin dumper, compatible with common waste bins between 24 and 96 gal (90 to 360 L). Ergonomic design prevents stress on waste-handling staff, allowing workers to perform lifting tasks comfortably and conveniently.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

The Multi-Tip® Hydraulic Bin Dumper from Simpro empties loaded bins up to 330 pounds (150 kilograms), improving safety and productivity during common waste-handling tasks. Unique lift-and-tip action keeps weight over the unit footprint during the entire dumping operation, enhancing safety and stability. With its high weight capacity and a standard cradle that supports most roll-out bins between 24 and 96 gallons (90 to 360 liters), the Multi-Tip is ideal for offices, factories, schools, recycling centers, and other points in the waste stream. Choose a tipping height to match existing equipment, from 47”, 63”, or 71” (1200 mm, 1600 mm, or 1800 mm).

Need help finding the perfect Bin Dumper for your operation? Call Solus Group at 314-696-0200 for detailed guidance.

Features & Benefits

Safely empties bins in just 15 seconds
Standard cradle suits popular bin sizes from 24 gal to 96 gal (90 L to 360 L)
Lifts and tips loads of up to 330 lb (150 kg)
Standard models feature tipping heights of 47” (1200 mm), 63” (1600 mm), or 71” (1800 mm)*
Duty Cycle: 5,500 lb (2500 kg) of material per charge or 2,200 lb(1000 kg) per hour on continuous charge
Onboard battery power with a sealed battery and industrial float charger
Electro-hydraulic operation provides powerful, reliable service
Steel construction is finished with a chemical-resistant powder coat
Galvanized components complete weather proofing for indoor/outdoor use
Lockout key allows access only to authorized users
Two-hand controls enhance safety during use
Weight of bin stays within machine footprint throughout dumping cycle to ensure stability
Heavy-duty 5” (125 mm) casters for full mobility
Dual brakes keep unit stable while lifting and emptying loads
Integrated fork pockets for transfer via lift truck or pallet jack

* Tipping height varies by bin size, and is therefore approximate.

Specifications

MODEL	TIP HEIGHT *	CAPACITY	POWER SOURCE	OVERALL LENGTH	OVERALL WIDTH	OVERALL HEIGHT ^‡	WEIGHT	IP RATING	SAFETY RATING
MT1200	47” (1200 mm)	330 lb (150 kg)	Battery ^†	35” (879 mm)	49” (1237 mm)	78” (1983 mm)	≈ 309 lb (≈ 140 kg)	IP56	CAT1/PLc
MT1600	63” (1600 mm)					94” (2383 mm)	≈ 353 lb (≈ 160 kg)
MT1800	71” (1800 mm)					102” (2583 mm)	≈ 397 lb (≈ 180 kg)
* Tip Height is approximate as it varies by bin being tipped. † Battery powerpack: 24v 20Ah sealed gel battery with 24v DC control voltage; unit includes sealed gel battery and industrial quality 'float' charger. ‡ Overall Height measurements shown for the bin dumper. Overall height with a bin tipped will vary depending on the bin used and how the bin is tipped. Allow additional height clearance for bin being raised in the cradle; clearance varies with size of bin. NOTE: Unit is also able to dump into compactors and precrushers; suitable for compactors over 47” (1200 mm).

Options

Solar Panel: Battery-powered bin dumpers being used outside can be fitted with a solar panel. Depending on the amount of direct sunlight available, up to two tons (1814 kg) can be emptied per day using solar power alone.
Stainless-Steel Construction: Bin dumpers are available either partially or completely constructed from high-grade 304 stainless steel, suitable for hygiene-critical or corrosive environments such as food production or chemical processing. Corrosion-resistant lifting chains and fittings are also available.
Steel Bucket Cradle: Powder coated steel bucket cradle includes adjustable hoop retainer and adjustable packer blocks. Bolted to the main tote cradle plates, the Bucket Cradle accommodates all tubs that fit within 27” wide (686 mm), 24” deep (609.5 mm), 47” high (1194 mm), including all standard steel drums and BRUTE® Bins.

Custom Controls: Operator controls can be mounted anywhere on the machine or remotely to suit productivity or safety requirements. Dual-hand controls are also available to prevent the operator from engaging in other interactions.

Custom Designs: Contact us with your specific requirements.

Operator Guard: Unbreakable plastic guarding can be fitted adjacent to operator controls for protection when dumping liquids or harmful materials.

Safety Standards: Bin dumpers can be specified to meet international standards and/or CE regulations for an additional cost, depending on the environment, application, and other factors.

Off-Road Kit: Four 8” (200 mm) hard-rubber wheels (2 fixed, 2 swivel) for uneven surfaces.
