Structural Barrier Rail

For pricing, contact us by calling 314-696-0200 or Request a Quote.

Only %1 left

SKU

SBR

The Structural Barrier Rail (SBR) is a heavy-duty traffic/machinery guard rail system designed to resist the force of a forklift strike. The SBR is configurable, so it's easy to maximize protection and prevent accidents.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

The Structural Barrier Rail (SBR) is a heavy duty guardrail system that's designed to resist the force of a forklift strike. These all-steel barriers have an impact rating of 10,000 pounds at 4 miles per hour, and are available in single-or double-rail configurations to satisfy multiple height requirements. Quantity is by the foot and is a minimum of 4 ft.

Drop-in rails allow simple installation and create a non-permanent barrier to easily grow to match changes in your facility. Custom designs are available for more permanent installations.

The SBR is configurable, so it’s easy to maximize protection and prevent accidents. Protect valuable equipment and keep staff safe by using barrier rails where accidents would most likely occur.

Applications include:

Battery Room
Personnel Walkway
Warehouse Racking
Modular Office
Machinery
Vehicular Passageway
Safety Equipment
Bollard Replacement

Features & Benefits

10,000 lb.* load at 4 mph rating
Simple, drop-in rail installation with universal posts
Mix and match heights as required to meet your needs
4', 5', 6', 7' and 8' span from post-center to post-center available
Lift-out rails allow quick access when required
Not permanent
Expandable to accommodate growth

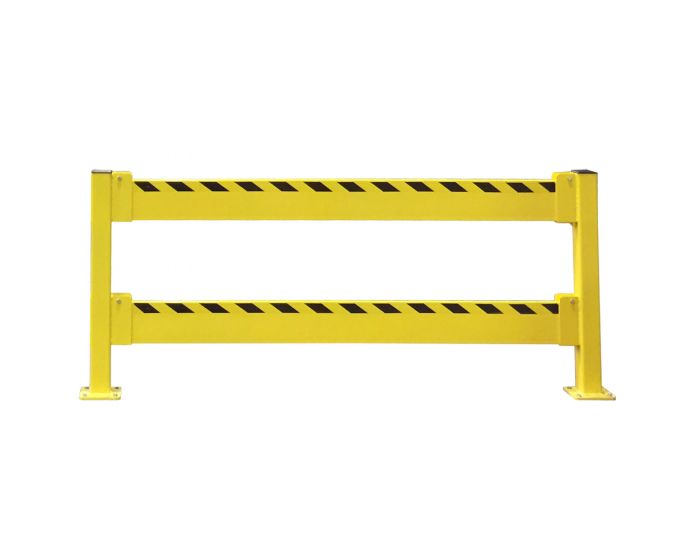

Please note the 18" or 42" refers to the height of the guard, as shown in the left side of the image. SBR-18 has a single horizontal spanner. SBR-42 has two horizontal spanners.

Please specify desired length in feet as quantity when ordering.

* Rating is based on 7,000 lb (3175 kg) per anchor pull-out strength

Specifications

Posts	4” x 4” x 1/4” wall square tubing 102 mm x 102 mm x 6 mm
Base Plates	8” x 8” x 1/2” (203 mm x 203 mm x 13 mm) with 9/16” (14 mm) holes for 1/2” (13 mm) anchors or mounting hardware (mounting hardware not included)
Rails	8” x 11.5 lb (203 mm x 5.2 kg) channel
