Tugger Carts - Center Steer

As low as $1,740.00

Only %1 left

SKU

TT-CS

Catalog (PDF)

Tugger Carts (TT) from BHS offer bulk transportation of materials across floors and ramps, and hitch to one another to create high-volume material-handling trains. They are a crucial component of a pick-to-cart strategy, in which order pickers fill trailers to capacity, and tuggers travel in waves to collect items in batches. These industrial carts are ideal for order-picking applications, as a supplement or even a replacement for lift trucks.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

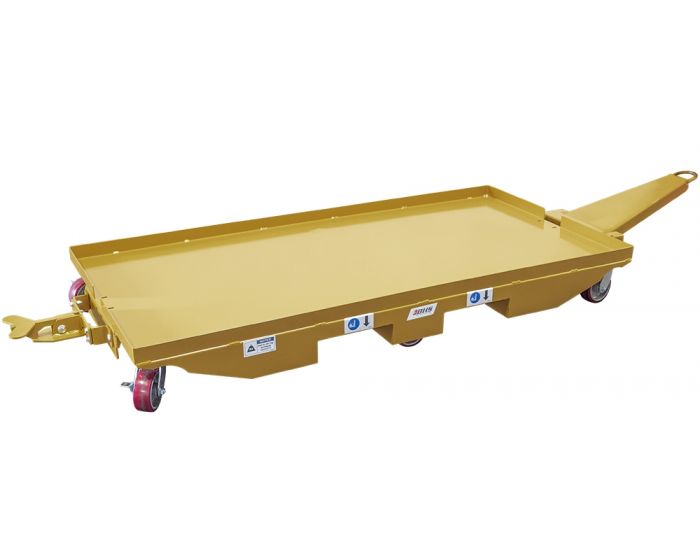

Center Steer Tugger Carts

Center Steer Tugger Carts (TT-CS) achieve exceptional maneuverability with a fifth caster in the center of the frame. This wheel is slightly larger than the others, allowing the entire unit to pivot in place. This makes the TT-CS ideal for pulling loads by hand, or in narrow aisles with tight turns.

The TT-CS can also function as part of a logistics train, vastly improving efficiency in order picking applications and raw-material delivery for manufacturers. Like all Tugger Carts from BHS, the TT-CS features heavy-duty steel construction and a powder coating that’s formulated to resist common sources of equipment damage in industrial applications.

Features & Benefits

Reduces order picking time by creating a pick train
Safe, efficient material handling for manufacturing and warehousing applications
Large central wheel provides unmatched maneuverability
2,500 lb capacity standard
Heavy-duty 6″ x 2″ polyurethane-on-steel casters
Phenolic or solid casters available on request
Standard units include ring coupler and clevis hitch
Custom hitches available on request
Travels in line behind tuggers for easier navigation
Heavy-duty steel construction with high load limits
Configurable to support any materials
Compatible with all types of electric tuggers

Specifications

MODEL	WIDTH	LENGTH	DECK HEIGHT*	CAPACITY	WEIGHT
TT-CS-3660	36” / 914 mm	60” / 1524 mm	6.75” / 171 mm	2,500 lb / 1134 kg	250 lb / 113 kg
TT-CS-3672	36” / 914 mm	72” / 1829 mm	6.75” / 171 mm	2,500 lb / 1134 kg	275 lb / 125 kg
TT-CS-4896	48” / 1219 mm	96” / 2438 mm	6.75” / 171 mm	2,500 lb / 1134 kg	500 lb / 227 kg

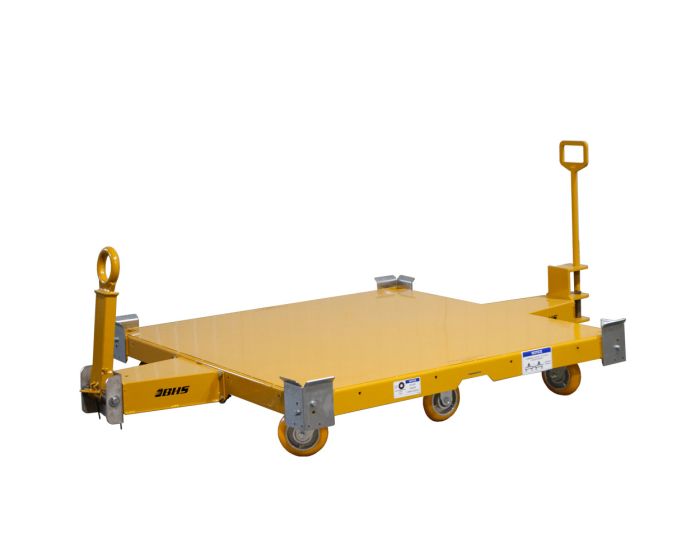

TT-CS-5050	50” / 1270 mm	50” / 1270 mm	6.75” / 171 mm	2,500 lb / 1134 kg	275 lb / 125 kg

*Varies based on casters selected

Options

HITCH / TOW BAR

HD Pintle Hitch & Pintle Ring (TT-PH): Heavy-duty, rigid pintle-style hitch; ideal for rough terrain
Ball Coupler & Ball Hitch (TT-BALL): Clamp-style attachment features a tight fit for smooth transport

TRANSPORT

8” Casters (TT-C-8X2): 8” x 2” easy-rolling polyurethane casters
8” Max Efficiency Casters (TT-C-8X2-ME): 8” x 2” easy-rolling, noise-reducing polyurethane casters
Handle (TT-HDL): Aids in maneuvering unit by hand. Add to a model with shelves.
Push Bar (TT-PUSH): Aids in maneuvering unit by hand. Add to a model without shelves.
Floor Lock (TT-FL): Parking brake prevents movement of the cart
Fork Pockets (TT-FP): Fork pockets allow relocating the Tugger Cart by lift truck to and from a worksite

SHELVING

Shelf (TT-2TIER): Add 1 bolt-on shelf with a 500 lb capacity
Adjustable Shelf (TT-2TIER-ADJ): Add 1 adjustable shelf with a 500 lb capacity
Shelves (TT-3TIER): Add 2 bolt-on shelves, each with a 500 lb capacity
Adjustable Shelves (TT-3TIER-ADJ): Add 2 adjustable shelves, each with a 500 lb capacity
Angled Shelves (TT-AS): Shelves slope downward 2° to the center to aid in retention of load
No Lip (TT-NO): Deck and shelves will not have a lipped edge

Warnings

California Residents: WARNING: This product contains chemicals known to the State of California to cause cancer and/or reproductive harm, and birth defects or other reproductive harm. Learn more here.
