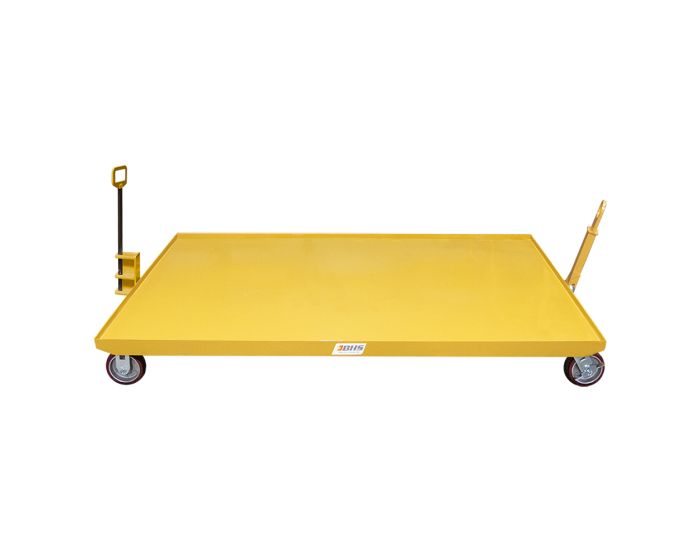

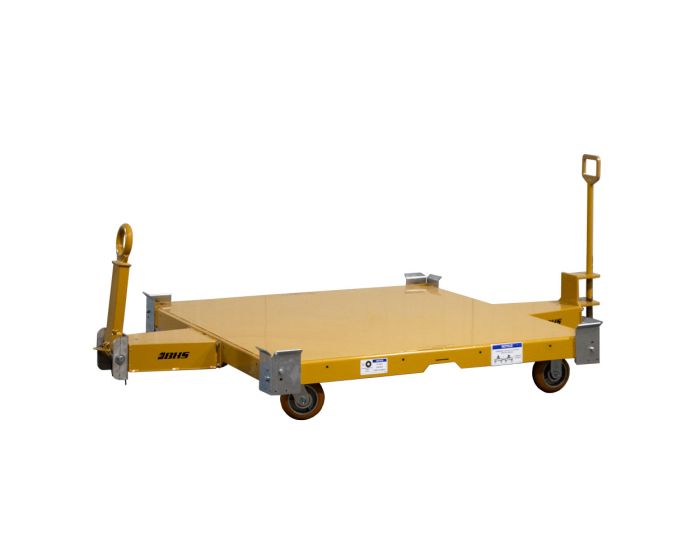

Tugger Carts - Dual Steer

As low as $1,640.00

Only %1 left

SKU

TT-DS

Tugger Carts (TT) from BHS offer bulk transportation of materials across floors and ramps, and hitch to one another to create high-volume material-handling trains.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

Dual Steer Tugger Trailers (TT-DS) offer a balanced combination of ergonomics during manual use and clear tracking as part of a train pulled by a tugger. The front casters swivel while the other two remain fixed, for dependable turns.

Manufacturers use Tugger Trailer trains to create “milk-run” material handling systems, carrying raw materials from the source point to the use point. There, staff can load trailers with waste materials and send the train back to the source point for a highly efficient full-circle system. In warehouses, pick trains allow users to take advantage of pick-to-cart strategies that improve ergonomic safety and productivity at once.

Features & Benefits

Reduces order picking time by creating a pick train
Safe, efficient material handling for manufacturing and warehousing applications
Two swivel and two rigid casters improve tracking fidelity
Heavy-duty steel construction with high load limits
Configurable to support any materials
Durable universal tow bars and hitches
Suitable for manual use or hitching to a tugger
Compatible with all types of electric tuggers

Specifications

MODEL	WIDTH	LENGTH	DECK HEIGHT*	CAPACITY	WEIGHT
TT-DS-3660	36” / 914 mm	60” / 1524 mm	6.75” / 171 mm	2,500 lb / 1134 kg	240 lb / 109 kg
TT-DS-3672	36” / 914 mm	72” / 1829 mm	6.75” / 171 mm	2,500 lb / 1134 kg	265 lb / 120 kg
TT-DS-4896	48” / 1219 mm	96” / 2438 mm	6.75” / 171 mm	2,500 lb / 1134 kg	490 lb / 222 kg
TT-DS-5050	50” / 1270 mm	50” / 1270 mm	6.75” / 171 mm	2,500 lb / 1134 kg	265 lb / 120 kg

Options

HITCH / TOW BAR

HD Pintle Hitch & Pintle Ring (TT-PH): Heavy-duty, rigid pintle-style hitch; ideal for rough terrain
Ball Coupler & Ball Hitch (TT-BALL): Clamp-style attachment features a tight fit for smooth transport

TRANSPORT

8” Casters (TT-C-8X2): 8” x 2” easy-rolling polyurethane casters
8” Max Efficiency Casters (TT-C-8X2-ME): 8” x 2” easy-rolling, noise-reducing polyurethane casters
Handle (TT-HDL): Aids in maneuvering unit by hand. Add to a model with shelves.
Push Bar (TT-PUSH): Aids in maneuvering unit by hand. Add to a model without shelves.
Floor Lock (TT-FL): Parking brake prevents movement of the cart
Fork Pockets (TT-FP): Fork pockets allow relocating the Tugger Cart by lift truck to and from a worksite

SHELVING

Shelf (TT-2TIER): Add 1 bolt-on shelf with a 500 lb capacity
Adjustable Shelf (TT-2TIER-ADJ): Add 1 adjustable shelf with a 500 lb capacity
Shelves (TT-3TIER): Add 2 bolt-on shelves, each with a 500 lb capacity
Adjustable Shelves (TT-3TIER-ADJ): Add 2 adjustable shelves, each with a 500 lb capacity
Angled Shelves (TT-AS): Shelves slope downward 2° to the center to aid in retention of load
No Lip (TT-NO): Deck and shelves will not have a lipped edge
