Battery Lifting Beams

As low as $1,055.00

Only %1 left

SKU

BLB

Capacity

Battery Length

Hook Type

Beam Options

Grab Handle (not installed) + $149.00

Fixed Hook + $516.00

Qty

Catalog (PDF)

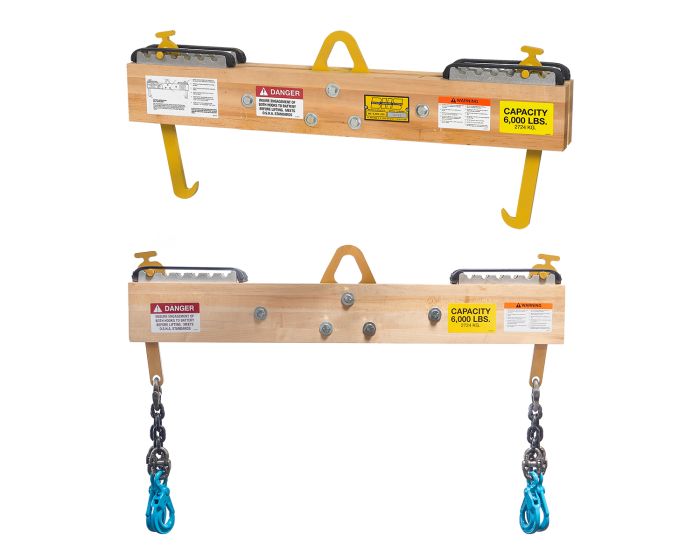

This Battery Lifting Beam is made of hardwood construction and provides a convenient way to handle industrial batteries. Various models and hook options available. Lifting capacity is 6,000 or 4,000 lb.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

Battery Lifting Beams (BLB-6000, BLB-4000) complete a safe and efficient solution for vertical-extraction battery handling applications. These Lifting Beams feature non-conductive hardwood construction with adjustable hook positions (fixed hooks are optional). Each lifting beam offers a convenient and efficient way to handle industrial forklift batteries, with a maximum capacity of 6,000 pounds.

Hook types (including Loadhog, Superhog, slide-latch, four point, and swing-latch hooks) are available for applications in different settings, and adjustable hook positions allow for use with batteries of different lengths. Optional grab handles can provide a better grip when an operator needs additional control. Optional fixed hook sets distance between hooks at a predetermined length, and is preferable when all batteries in fleet are approximately the same length.

Whether you are using an overhead bridge crane or a lift truck, battery lifting devices provide the balance and support you need to handle industrial batteries safely.

Download the PDF for more product details or contact our sales team.

Features & Benefits

Non-conductive, hardwood construction
Multiple hook options available
Adjustable hook positions for use with multiple battery lengths
6,000 lb (2722 kg) or 4,000 lb (1815 kg) capacity
45" or 52" overall length

Specifications

MODEL	CAPACITY	DESCRIPTION	CLEAR SPAN	LENGTH	WEIGHT
BLB-6000	6,000 lb / 2722 kg	Lifting Beam w/ Standard Hooks	27.5”–42.5” / 699 mm–1080 mm	45” / 1143 mm	58 lb / 26 kg
BLB-6000-LHG		Lifting Beam w/ Load Hog Hooks
BLB-6000-LLH		Lifting Beam w/ Load-Lok Hooks
BLB-6000-SHG		Lifting Beam w/ Super Hog Hooks			60 lb / 27 kg
BLB-6000-SLD		Lifting Beam w/ Slide Latch Hooks			60 lb / 27 kg
BLB-6000-48		Lifting Beam-48 (52” OAL) w/ Standard Hooks*	35.5”–50.5” / 902 mm–1283 mm	52” / 1321 mm	110 lb / 50 kg
BLB-6000-48-SLD		Lifting Beam-48 (52” OAL) w/ Slide Latch Hooks*			112 lb / 51 kg
BLB-6000-48-LLH		Lifting Beam-48 (52” OAL) w/ Load-Lok Hooks*			110 lb / 50 kg
BLB-6000-4PT		Lifting Beam with four points of lift	25.5”–40.5” / 648 mm–1029 mm	45” / 1143 mm	70 lb / 32 kg
BLB-6000-4PT48		Lifting Beam-48 (52” OAL) with four points of lift*	32.5”–47.5” / 825 mm–1206 mm	52” / 1321 mm	121 lb / 55 kg
BLB-4000	4,000 lb / 1815 kg	Lifting Beam w/ Standard Hooks	27.5”–42.5” / 699 mm–1080 mm	45” / 1143 mm	58 lb / 26 kg
BLB-4000-LHG		Lifting Beam w/ Load Hog Hooks
BLB-4000-LLH		Lifting Beam w/ Load-Lok Hooks
BLB-4000-SHG		Lifting Beam w/ Super Hog Hooks			60 lb / 27 kg
BLB-4000-SLD		Lifting Beam w/ Slide Latch Hooks			60 lb / 27 kg
BLB-4000-4PT		Lifting Beam with four points of lift	25.5”–40.5” / 648 mm–1029 mm		70 lb / 32 kg

* Lifting Beam-48 model increases wood height by 2” (51 mm) and decreases hook underbeam clearance by 2” (51 mm)

Options

Fixed Position Hook (BLB-FXD-HK): Sets distance between hooks at a predetermined length, and is preferable when all batteries in fleet are approximately the same length
Grab Handle (BLB-HDL): Provides an improved grip when additional control is needed, and is for use on one end only
