Dyna Reel Platform Attachment

As low as $3,895.00
Only %1 left
SKU
DRPA-36
Transforms lift trucks or pallet jacks into mobile reel payouts.

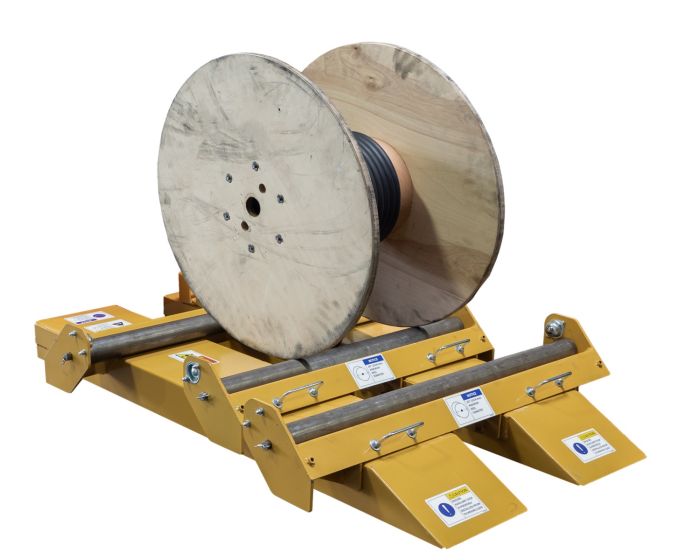

The Dyna Reel Platform Attachment (DRPA) is a portable reel-roller platform that transforms lift trucks of sufficient capacity into full-service payout solutions. Secure DRPA fork attachments to industrial truck forks to lift, transport, reposition, and ultimately pay out cable resources from reels of any size.

Features & Benefits

  • Safe, efficient payout and spooling for cable reels of all sizes
  • Mounted on fork pockets for lift trucks or pallet jacks
  • Tie down reels for transport
  • Creates a full-service, mobile payout solution with forklifts or pallet jacks
  • Choose front roller stops with a usable width of 32 5/16” or 37 ⅝”
  • Secure, portable cable payout, loading, and transportation for reels
  • Heavy-duty steel construction
  • Durable powder-coat finish resists scratches, abrasion, chemicals, and acids
  • Base design avoids contact with cable, preventing damage to resources
  • Compatible with Spool Winding Trolleys and Spooling Caddies for full-service cable handling

Model

Description

Capacity

Height

Width

Depth

DRPA-36-FP

Mobile Model for Use with Forklift

5,000 lb / 2268 kg

8.75” / 222 mm

42” / 1067 mm

57.813” / 1469 mm

DRPA-36-PJ

Mobile Model for Use with Pallet Jack

5,000 lb / 2268 kg

9” / 229 mm

42” / 1067 mm

59.813”/ 1519 mm

Tie Down Kit (DRP-TDK)
Allows users to firmly secure reel axles to the base of the unit for added security during use. Includes a pair of tie-down assemblies with bearings and 2 eye bolts each, 4 eye bolts for the base, and 4 ratchet straps
