The PRP Wagon takes the durable storage and payout of standard PRP models and adds additional mobility.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

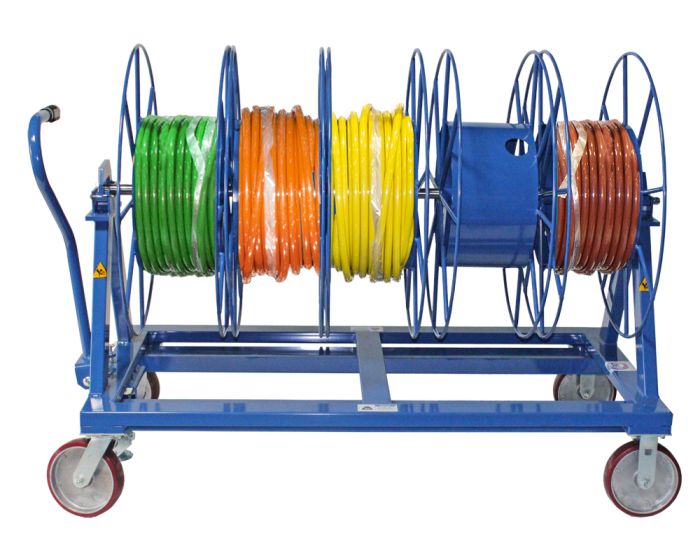

The Parallel Reel Payout Wagon (PRW) transports high-volume cable reels with or without additional material handling equipment. An ergonomic pivoting handle allows users to maneuver the unit around tight corners manually, while two-way fork pockets provide portability via lift truck. Either way, a reliable locking pin keeps the shaft safely motionless during travel. Heavy-duty casters move easily through narrow aisles, and an integrated floor lock keeps the unit stable during cable pulls.

This unit features a slim profile to fit easily through 34-inch door openings, but it is sized to carry up to 5,000 pounds of product. All-steel construction and a protective powder-coat finish provide a lifetime of service. The PRW-6032 is available with virtually any combination of reels to meet specific applications, from custom paralleling to long-term storage. Free-spinning and fixed-compartment reels allow users to customize the unit to match distinct cable-pulling requirements.

Features & Benefits:

Heavy-duty steel construction for added reliability
Two-way fork pocket design
2” (51 mm) solid steel center shaft
Shaft safety locks equipped with locking pin
Free-spinning compartments provide an even payout
0.75”, 1”, and 2.5” (19 mm, 25 mm, and 64 mm) arbor holes for a variety of wire gauges
0.75” (19 mm) UHMW alignment strips for center shaft prevent wear of components
Includes additional pivoting handle and vertical locking pin
Casters and floor lock included
Fits through a 34” door opening

Specifications

Model	Overall Height	Overall Width	Overall Length	Rated Load Capacity	Height with Casters
PRW	50.06” / 1272 mm	32” / 813 mm	60” / 1524 mm	5,000 lb / 2268 kg	50.06” / 1272 mm

Options

Floor Lock (PRP-FL): Locking floor brake prevents unwanted movement of the unit
Pull Brake Clamp (PRP-PB-C): One drop-down self-leveling steel arm capped with neoprene pad. Order four per PRP unit for maximum stability during cable payout.
Auxiliary Ground Reel & Attachment (PRP-AUX): Add a single spinning reel to the outer frame of the reel stand; includes R-1 Reel and attachment mechanism
