Wire Pull Carts

As low as $5,123.00
Only %1 left
SKU
WPC

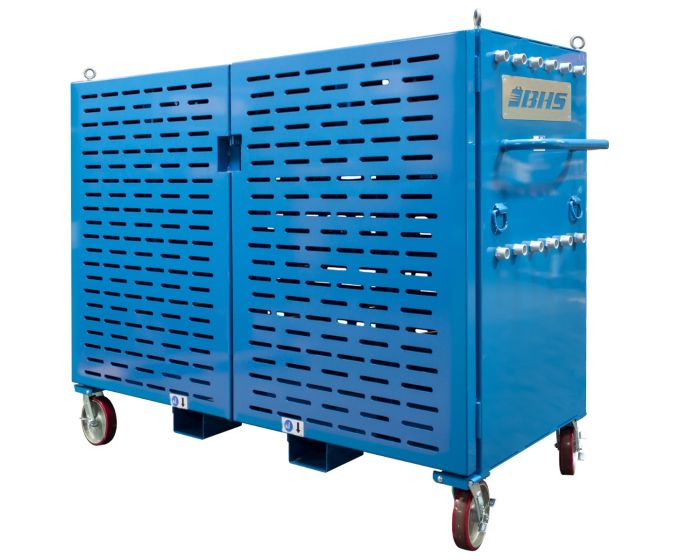

Simplify wire pulling with Wire Pull Carts (WPC) from BHS. These all-steel units include fully adjustable shafts to hang reels of virtually any size and weight, up to 3,000 pounds, with PVC wire guides to ensure steady payout and prevent damage to wire.

Simplify wire pulling at electrical installation sites with Wire Pull Carts (WPC) from BHS. These all-steel units include fully adjustable shafts to hang reels of virtually any size and weight, up to 3,000 pounds, with PVC wire guides to ensure a smooth pull and prevent damage to wire.

The WPC makes it easy to transport bulk supplies of cable anywhere at the job site. It rolls easily on four swivel casters. Lifting eye bolts at all four upper corners allow users to pull the entire unit to upper floors. For even more versatile positioning, the WPC comes with stock fork pockets for travel via lift truck. A slim profile allows the WPC to travel through standard doorways and narrow aisles.

When not in use, steel doors with 180-degree hinges and a padlock hasp, complete with strike protector, protect wire assets at the job site. The combination of portability, security, and smooth payout make BHS Wire Pull Carts essential tools for every electrical installation job.

Features & Benefits:

  • Improves wire pulls at job sites for faster, easier electrical installation
  • Protects wire supplies when not in use
  • Heavy‐duty steel construction for added reliability
  • Durable powder coat finish resists rust and scratches
  • Four swivel casters to allow unit to be positioned manually
  • Brakes on casters prevent for rolling
  • Lifting eye bolts
  • Fork pockets enables transporting unit with a forklift
  • Front shaft support channels to prevent reels from falling off
  • Door slabs are hinged in two locations and open 180°
  • Padlockable with strike protector to guard assets from theft (padlock not included)
  • Adjustable/ removable shaft positions for multiple sizes of spools/reels
  • Removable shafts with shaft collars keep spools in position and prevent sliding
  • PVC wire guides ensure steady payout and prevent damage to wire
  • For Model WPC-3079-76 Eye Bolts must be removed to fit through standard doorways.

Model

Capacity

Depth

Width

Height

Max Spool Qty

Casters

WPC-2475-66

2,000 lb / 908 kg

26.563” / 675 mm

88.25” / 2242 mm

76.5” / 1944 mm

(9) 17” dia x 18” W

(18) 17” dia x 9” W

6” / 152 mm
Poly

WPC-3079-76*

3,000 lb / 1360 kg

33” / 839 mm

92.25” / 2343 mm

85” / 2159 mm

(9) @ 23” dia x 24” W

(18) @ 23” dia x 12” W

4” / 102 mm Phenolic

WPC-3079-51

3,000 lb / 1360 kg

33” / 839 mm

92.25” / 2343 mm

63.375” / 1610 mm

(6) @ 23” dia x 24” W

(12) @ 23” dia x 12” W

8” / 203 mm
Poly
