Parallel Reel Payout Trailer

As low as $32,864.00

Only %1 left

SKU

PRP-TRL

Catalog (PDF)

The Parallel Reel Payout Trailer (PRP-TRL) is the base of a total turn-key solution for on-site cable pulling.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

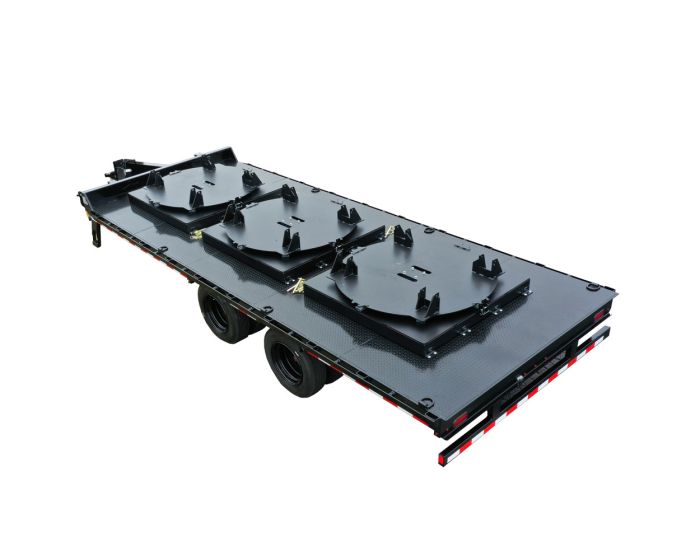

The Parallel Reel Payout Trailer (PRP-TRL) features 2-3 swiveling turntable bases to mount Parallel Reel Payout (PRP) units for custom paralleling and smooth payout in any direction at the job site.

Features & Benefits:

Base of complete turnkey solution for on-site cable pulls
Two to three heavy-duty steel turntables to mount Parallel Reel Payout units
Turntable bases allow PRP units to face any direction without moving the trailer
Custom sets of fixed and free-spinning reels available
Individual hub locking prevents unwanted payout
Designed to fit inside enclosed tractor trailers for long haul transport
Overall trailer dimensions vary per model

Specifications

Model	Number of Mounted Turntables	GVWR*	Payload	Curb Weight (Trailer Only)	Deckover Trailer	Deck Height	Width	Length	Coupler Type
PRP-TRL-14	(2)	14,500 lb / 6577 kg	11,900 lb / 5398 kg	2,600 lb / 1179 kg	No	24” / 610 mm	98” / 2489 mm	14’ / 4267 mm	Adjustable 2 5/16” Ball
PRP-TRL-22	(3)	14,500 lb / 6577 kg	11,100 lb / 5035 kg	3,400 lb / 1542 kg	No	24” / 610 mm	98” / 2489 mm	22’ / 6705 mm	Adjustable 2 5/16” Ball
PRP-TRL-24	(3)	32,000 lb / 14515 kg	26,000 lb / 11793 kg	6,000 lb / 2722 kg	Yes	32” / 813 mm	101” / 2565 mm	24’ / 7315 mm	Adjustable Pintle Hitch

*Note: Capacity of tow vehicle must be properly equipped to tow Gross vehicle weight rating (GVWR) weights listed
