Spool Winding Trolley

For pricing or more information, contact us by calling 314-696-0200

SKU

SWT

The SWT allows electricians and electrical suppliers to pre-load reels with multiple cables in a fraction of the time, reducing ergonomic hazards and providing a dependable ROI.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

The BHS Spool Winding Trolley (SWT) saves time and labor during industrial-scale cable management. Position the unit over a BHS Parallel Reel Payout (PRP) or virtually any other reel shaft — an adjustable assembly raises and lowers the unit to match axle height - and activates the hydraulic motor.

The SWT automatically pays out cables to one or more take-up spools, counting linear footage that passes through a triple-wide encoder wheel. Each revolution pays out 1 foot of cable, ensuring accurate counts and precise order-fulfillment.

The SWT allows electricians and electrical suppliers to pre-load reels with multiple cables in a fraction of the time, reducing ergonomic hazards and providing a dependable ROI. Call our Sales Team at 1-800-BHS-9500 to learn more about the Spool Winding Trolley and other cable-management innovations from BHS, Inc.

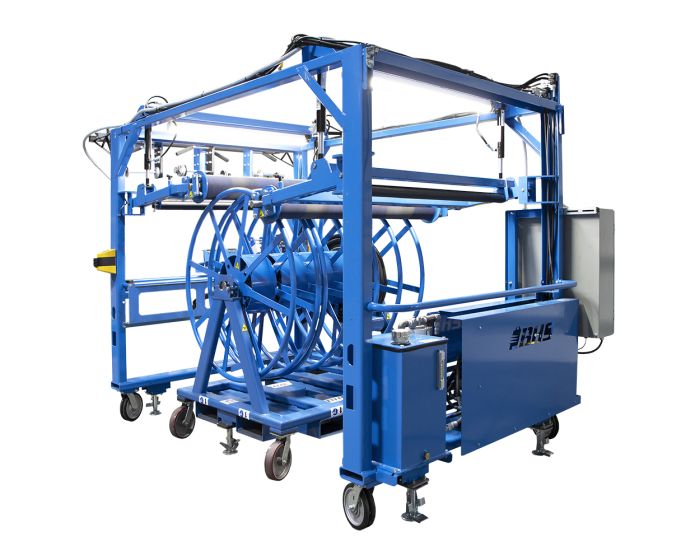

*SWT pictured with BHS PRP (sold separately) and options SWT-GB and SWT-MC,

Features & Benefits

Overhead rim drive rotates take-up reels while an encoder wheel accurately counts linear footage, eliminating waste
Pay out multiple cables to multiple compartment reels at once
Control slide gives operator full control over coiling for the highest possible yield per compartment reel
Adjustable-length overhead rollers accommodate a wide range of reel diameters and configurations
Maximum reel width of 48”
Ideal for use with any PRP or DRP unit
Counter 1:1 ratio – one revolution = 1 linear foot of cable
Counter is angled toward operator for ease of use and is also reversible and resettable
Dual, 6” diameter, urethane-coated rollers create secure contact with various spool and reel types
Hydraulic-actuated roller arms for powered positioning
Direct-coupled hydraulic drive motor for reliable performance
480V ac / 3ph, 3hp power unit. Other voltages available
Low-speed for precise control when beginning and finishing spooling
High-speed to minimize total spooling time
Single phase models come equipped with a 2 button wired control while three phase models feature wireless controls

Options

Mechanical Cable Counter (SWT-MC): Analog style cable counter requires no power and counts every foot of cable payed out.
Digital Cable Counter (SWT-DC): Digital cable counter works much like the mechanical option, but includes added functionality such as selecting different units of measurement and quick resets.
2 LED Lights (SWT-LED): Shine some light on it by adding one LED light to each end of the SWT.
Additional Rollers (SWT-RLR): Add 2 rollers for simplified, stable pulling from high spools.
Cable Clamp (SWT-LTR): Clamp finished jobs for easy cutting by adding cable clamps to the front of your SWT unit.
Overhead Tool Mount (SWT-OTM): Boost ergonomics and operator safety with an overhead tool mount. Adds one overhead mount rails on each side of unit.
Overhead Tool Mount (SWT-OTM): Boost ergonomics and operator safety with an overhead tool mount. Adds one overhead mount rails on each side of unit.
Gathering Box (SWT-GB): Safely collect paid out product in an adjustable, integrated container.
Shrink Wrap (SWT-SW): Wrap cut to length jobs on the fly with a Strech Wrap Holder, mounted directly above the counter.
