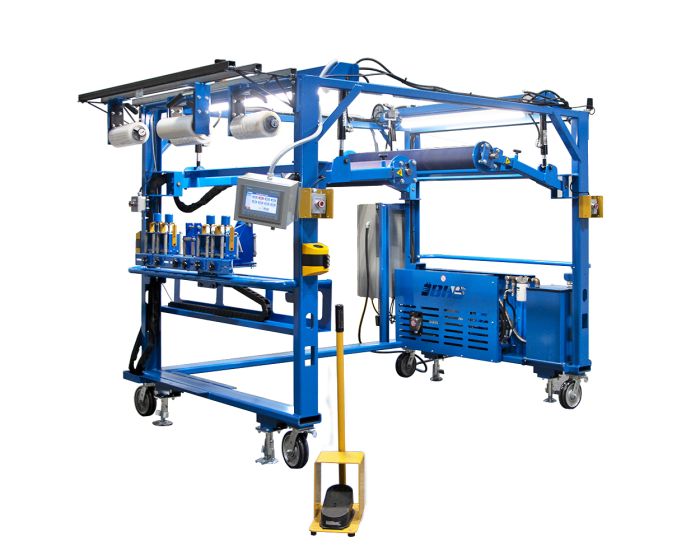

Spool Winding Trolley PLUS

Like all Spool Winding Trolleys from BHS, this payout engine saves considerable time when filling cable orders. Operators position this stand-alone unit over jack stands, omitting the risk and inefficiency of removing and replacing spools.

In addition to safe, reliable payout on every job, the SWT-PLUS model is packed with features to improve the speed and accuracy of cable order fulfillment.

Features & Benefits

• All SWT-PLUS units include a touchscreen operator interface
• Overhead rim drive rotates take-up reels while cable counter tracks linear footage, eliminating waste
• Pay out multiple cables to multiple compartment reels at once
• Control slide gives operator full control over coiling for the highest possible yield per compartment reel
• Adjustable-length overhead rollers accommodate a wide range of reel diameters and configurations
• Maximum reel width of 48”
• Ideal for use with any PRP unit
• Counter 1:1 ratio – one revolution = 1 linear foot of cable
• Cable counter integrated with HMI software allows users to set different units of measurement and reset instantly
• Dual, 6” diameter, urethane-coated rollers create secure contact with various spool and reel types
• Hydraulic-actuated roller arms for powered positioning
• Direct-coupled hydraulic drive motor for reliable performance
• Low-speed for precise control when beginning and finishing spooling
• High-speed to minimize total spooling time
• Wireless pendant push-button and foot pedal controls allow complete control of the spooling process
• LED lights on each end of the SWT unit improve operator visibility in low-light environments
• An overhead tool mount rail on the operator side of unit for operator convenience.
• Wrap cut-to-length jobs on the fly with the Stretch Wrap Holder, mounted directly above the counter.
• Strobe light and audible alarm notify bystanders when machine is in operation.
