Battery Transfer Carriages

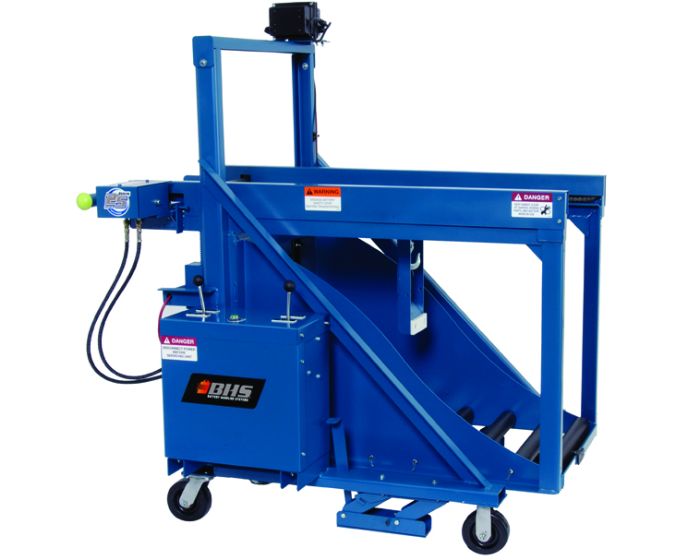

The BHS Mechanical Push/Pull Forklift Battery Transfer Carriage has one battery compartment, a 3,000 lb (1360 kg) capacity, and provides safe and easy, low cost battery handling extraction. Versatile standard adjustment allows battery extraction from most battery compartments. A hand wheel assures positive control to drive the push/pull extractor arm. The BTC has a high load capacity and four large 6" phenolic wheels to help protect floors and provide low rolling resistance. Raising and lowering is accomplished with a center-mounted hydraulic hand jack. The forklift battery transfer carriage lift range is from 5.5" to 23.5". This model has many flexible options available to satisfy unique battery handling needs.
Features & Benefits
- Provides safe and easy low cost battery handling solution
- Versatile height adjustment allows battery extraction from most battery compartments
- Large 6” (152 mm) phenolic wheels help protect floors and provide low rolling resistance
- Many flexible options available to satisfy unique battery handling requirements
- High 3,000 lb (1,360 kg) load capacity rating (based on 40” [1,016 mm] long battery – battery length longer than 40” [1,016 mm] will reduce capacity)
- Each model available in multiple compartment widths
Powered Extraction & Powered Lift |
Manual Extraction & Powered Lift |
Powered Extraction & Manual Lift |
Manual Extraction & Manual Lift |
|
Max. Load Capacity 1 |
3,000 lb / 1360 kg |
3,000 / 1360 kg |
3,000 lb / 1360 kg |
3,000 lb / 1360 kg |
Voltage Requirement |
12 VDC |
12 VDC |
12 VDC |
N/A |
Hydraulic Pump |
1.3 gal/min / 4.9 l/m |
1.3 gal/min / 4.9 l/m |
1.3 gal/min / 4.9 l/m |
N/A |
Extractor Arm Travel Speed |
0–20 ft/min / 0–0.1 m/s |
N/A |
0–20 ft/min / 0–0.1 m/s |
N/A |
Battery Attachment |
Hook & Chain |
Hook & Chain |
Hook & Chain |
Hook & Chain |
Optional Vacuum |
Yes |
N/A |
Yes |
N/A |
Primary Drive Reduction |
N/A |
4.5 to 1 |
N/A |
4.5 to 1 |
Primary Drive Chain Size |
#50 |
#50 |
#50 |
# 50 |
Roller Diameter |
2.4” / 61 mm |
2.4” / 61 mm |
2.4” / 61 mm |
2.4” / 61 mm |
Roller Shaft Size |
7/16” / 11 mm Hex (Model 18) 3/4” / 19 mm Hex (Model 30) |
7/16” / 11 mm Hex (Model 18) 3/4” / 19 mm Hex (Model 30) |
7/16” / 11 mm Hex (Model 18) 3/4” / 19 mm Hex (Model 30) |
7/16” / 11 mm Hex (Model 18) 3/4” / 19 mm Hex (Model 30) |
Maximum Battery Width |
17” / 432 mm (Model 18) |
17” / 432 mm (Model 18) |
17” / 432 mm (Model 18) |
17” / 432 mm (Model 18) |
Battery Length 3 |
25”–39.75” 635–1010 mm |
25”–39.75” 635–1010 mm |
25”–39.75” 635–1010 mm |
25”–39.75” 635–1010 mm |
Min. Battery Height |
20” / 508 mm |
20” / 508 mm |
20” / 508 mm |
20” / 508 mm |
Overall Length2 |
67” / 1702 mm |
67” / 1702 mm |
67” / 1702 mm |
67” / 1702 mm |
Overall Width |
46.5” / 1181 mm (Model 18) |
46.5” / 1181 mm (Model 18) |
46.5” / 1181 mm (Model 18) |
38.5” / 978 mm (Model 18) |
Overall Height |
65.5” / 1664 mm |
65.5” / 1664 mm |
65.5” / 1664 mm |
65.5” / 1664 mm |
Roller Height Service Range |
5.5”–21.5” 140–546 mm |
5.5”–21.5” 140–546 mm |
5.5”–23.5” 140–597 mm |
5.5”–23.5” 140–597 mm |
Roller Width (Nominal) |
18” / 457 mm (Model 18) 24” / 610 mm (Model 24) 30” / 762 mm (Model 30) |
18” / 457 mm (Model 18) 24” / 610 mm (Model 24) 30” / 762 mm (Model 30) |
18” / 457 mm (Model 18) 24” / 610 mm (Model 24) 30” / 762 mm (Model 30) |
18” / 457 mm (Model 18) 24” / 610 mm (Model 24) 30” / 762 mm (Model 30) |
Extended Arm Reach3 |
6” / 152 mm |
6” / 152 mm |
6” / 152 mm |
6” / 152 mm |
Service Weight (unloaded) |
1,050 lb / 476 kg (Model 18) 1,128 lb / 512 kg (Model 24) 1,135 lb / 515 kg (Model 30) |
945 lb / 429 kg (Model 18) 960 lb / 435 kg (Model 24) 1,090 lb / 494 kg (Model 30) |
850 lb / 386 kg (Model 18) 934 lb / 424 kg (Model 24) 1,060 lb / 481 kg (Model 30) |
718 lb / 326 kg (Model 18) 748 lb / 339 kg (Model 24) 960 lb / 435 kg (Model 30) |
