Compartment Slide Strips
As low as
$125.00
Only %1 left
SKU
CSS
Intended to be added into the battery compartment of a forklift, provides added convenience for handling industrial batteries during change-out.

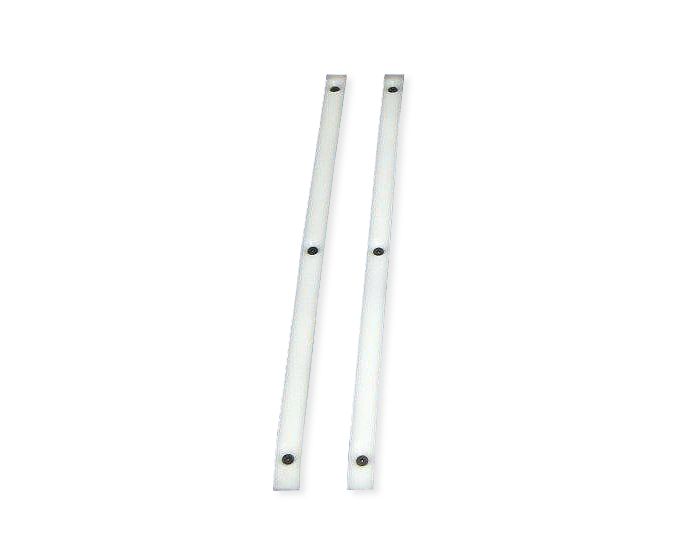

Install Compartment Slide Strips (CSS) in forklift battery compartments to simplify the process of changing batteries in side-extraction fleets. These high-density slide strips are ideal for converting forklift battery compartments from overhead- to side-extraction.
The CSS is made of UHMW, or high-performance polyethylene, which is resistant to concentrated acids and corrosive chemicals like those found in forklift battery rooms. In addition to its corrosion resistance, this material is incredibly tough, with an extremely high impact strength. BHS Compartment Slide Strips have a minimum capacity of 1,800 pounds per strip. Welded Slide Strips feature higher capacities of 2,000 pounds per strip. UHMW is a very low-friction material that is self-lubricating and resistant to abrasion. These properties make the CSS ideal for battery change-outs, allowing staff to replace forklift batteries with a minimum of friction. Choose the standard CSS, which bolts into battery compartments, or CSS-W models, which include side plates for tack welding into place.Model Specifications
|
CSS |
CSS-30W |
CSS-38W |
|
|
Contents |
Two Slide Strips and Mounting Hardware |
One Slide Strip with Metal Frame |
One Slide Strip with Metal Frame |
|
Width (A) |
1” / 25 mm |
1 15/16” / 49 mm |
1 15/16” / 49 mm |
|
Length (B) |
38 1/2” / 978 mm |
30” / 762 mm |
38” / 965 mm |
|
Height (C) |
1/2” / 13 mm |
1” / 25 mm |
1” / 25 mm |
|
Mounting Hole Centers (D) |
9” / 229 mm |
Not Applicable |
Not Applicable |
|
Capacity |
1,800 lb per Strip 816 kg per Strip (2 Required) |
2,000 lb per Strip 907 kg per Strip (2 Required) |
2,000 lb per Strip 907 kg per Strip (2 Required) |
|
Color (Side plates unpainted for welding) |
White |
White |
White |
|
Slide Strip Material |
UHMW |
UHMW |
UHMW |
|
Side Plates |
Not Applicable |
10 Guage HRS / 3.4 mm |
10 Guage HRS / 3.4 mm |
|
Hardware Size |
1/4-20 x 1/2" (13 mm) Countersunk Hardware |
Not Applicable |
Not Applicable |
|
Mounting Requirement |
Drill / Tap Compartment |
Tack Weld Compartment |
Tack Weld Compartment |
|
CSS |
CSS-30W |
CSS-38W |
|
|
Width (A) |
1” / 25 mm |
1 15/16” / 49 mm |
1 15/16” / 49 mm |
|
Length (B) |
38 1/2” / 978 mm |
30” / 762 mm |
38” / 965 mm |
|
Height (C) |
1/2” / 13 mm |
1” / 25 mm |
1” / 25 mm |
|
Mounting Hole Centers (D) |
9” / 229 mm |
Not Applicable |
Not Applicable |
|
Capacity |
1,800 lb per Strip 816 kg per Strip (2 Required) |
2,000 lb per Strip 907 kg per Strip (2 Required) |
2,000 lb per Strip 907 kg per Strip (2 Required) |
|
Color* |
White |
White |
White |
|
Slide Strip Material |
UHMW |
UHMW |
UHMW |
|
Side Plates |
Not Applicable |
10 Guage HRS / 3.4 mm |
10 Guage HRS / 3.4 mm |
|
Hardware Size |
1/4-20 x 1/2" (13 mm) Countersunk Hardware |
Not Applicable |
Not Applicable |
|
Mounting Requirement |
Drill / Tap Compartment |
Tack Weld Compartment |
Tack Weld Compartment |
