Compartment Roller Tray, Low Profile
As low as
$769.00
Only %1 left
SKU
CRTL

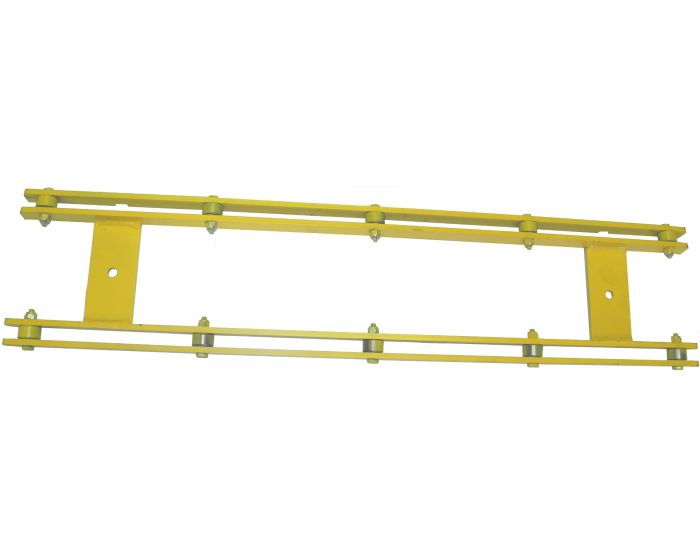

Compartment Roller Trays are engineered to assist in converting a forklift battery compartment from overhead extraction to side extraction. The Low Profile CRT models come standard with 1" height.
BHS Compartment Roller Trays are engineered to assist in converting a forklift battery compartment from overhead extraction to side extraction. This Compartment Roller Tray features a low profile to save space in tight battery compartments. Custom designs are available upon request.
Features & Benefits:
- Engineered for ease and efficiency
- Heavy duty construction for added reliability
|
CRTL-7 |
CRTL-12 |
CRTL-16 |
|
|
Width (A) |
7” / 178 mm |
12” / 305 mm |
16” / 406 mm |
|
Length (B) |
30” / 762 mm |
30” / 762 mm |
30” / 762 mm |
|
Height (C) |
1” / 25 mm |
1” / 25 mm |
1” / 25 mm |
|
Mounting Hole Centers (D) |
22” / 559 mm |
22” / 559 mm |
22” / 559 mm |
|
Mounting Hole Centers (E) |
3 1/2” / 89 mm |
6” / 152 mm |
8” / 203 mm |
|
Capacity |
2,000 lb / 907 kg |
2,000 lb / 907 kg |
2,000 lb / 907 kg |
|
Color |
OSHA Safety Yellow |
OSHA Safety Yellow |
OSHA Safety Yellow |
|
No. of Rollers |
10 |
10 |
10 |
|
Frame Material |
1/4” x 7/8” & 1/4” x 2” 6 mm x 22 mm & 6 mm x 51 mm |
1/4” x 7/8” & 1/4” x 2” 6 mm x 22 mm & 6 mm x 51 mm |
1/4” x 7/8” & 1/4” x 2” 6 mm x 22 mm & 6 mm x 51 mm |
|
Roller Diameter |
7/8” / 22 mm |
7/8” / 22 mm |
7/8” / 22 mm |
|
Mounting Hole Size Diameter |
13/32” / 10 mm |
13/32” / 10 mm |
13/32” / 10 mm |
|
Mounting Requirement |
Drill / Tap or Tack Weld |
Drill / Tap or Tack Weld |
Drill / Tap or Tack Weld |
