Compartment Roller Trays

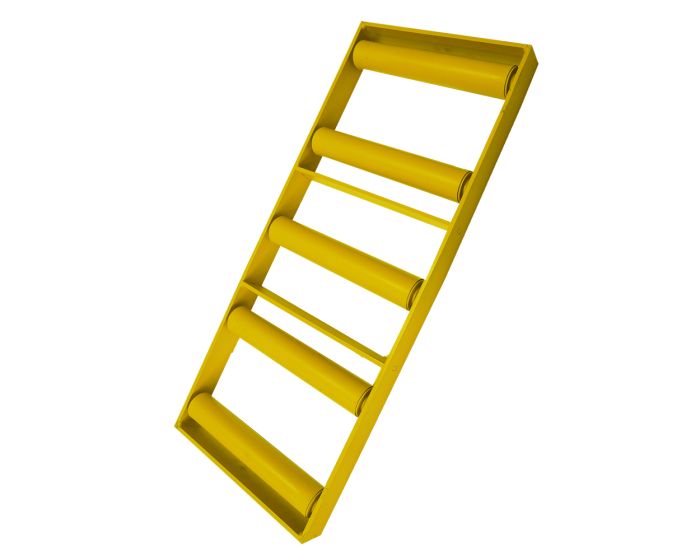

BHS Compartment Roller Trays are engineered to assist in converting a forklift battery compartment from overhead extraction to side extraction. This Compartment Roller Tray is 2.19″ (56 mm) standard height, 30″ (762 mm) length, with 7" in overall width. Custom designs are available upon request.
Choose Compartment Roller Trays in any of three sizes, with a standard 2.19-inch height, 30-inch length, and widths of 7, 12, or 16 inches. Standard CRTs come equipped with five roller tubes and a minimum 1,200-pound capacity. Alternatively, you can have a roller tray customized to meet your own specifications.
Roller Trays from BHS are built for ease-of-use and efficiency. Heavy duty construction ensures reliability and the OSHA Safety Yellow powder coating resists acid, scratches, and impact.
Features & Benefits:
Features & Benefits:
- Engineered for ease and efficiency
- 2.19″ (56 mm) standard height; 30″ (762 mm) length
- Heavy duty construction for added reliability
- Other sizes built to specifications
- Height (C): 2-3/16" / 56 mm
|
CRT-7 |
CRT-12 |
CRT-16 |
|
|
Width (A) |
7” / 178 mm |
12” / 305 mm |
16” / 406 mm |
|
Length (B) |
30” / 762 mm |
30” / 762 mm |
30” / 762 mm |
|
Height (C) |
2 3/16” / 56 mm |
2 3/16” / 56 mm |
2 3/16” / 56 mm |
|
No. of Rollers |
5 |
5 |
5 |
|
Capacity |
1,200 lb / 544 kg |
1,200 lb / 544 kg |
1,400 lb / 635 kg |
|
Color |
OSHA Safety Yellow |
OSHA Safety Yellow |
OSHA Safety Yellow |
|
Roller Material |
1 7/8” OD Tube x 13 Ga. Wall 48 mm OD Tube x 2.4 mm Wall |
1 7/8” OD Tube x 13 Ga. Wall 48 mm OD Tube x 2.4 mm Wall |
1 7/8” OD Tube x 13 Ga. Wall 48 mm OD Tube x 2.4 mm Wall |
|
Frame Material |
1/4” x 2” / 6 mm x 51 mm |
1/4” x 2” / 6 mm x 51 mm |
1/4” x 2” / 6 mm x 51 mm |
|
Mounting Requirement |
Drop-in or Tack Weld |
Drop-in or Tack Weld |
Drop-in or Tack Weld |
