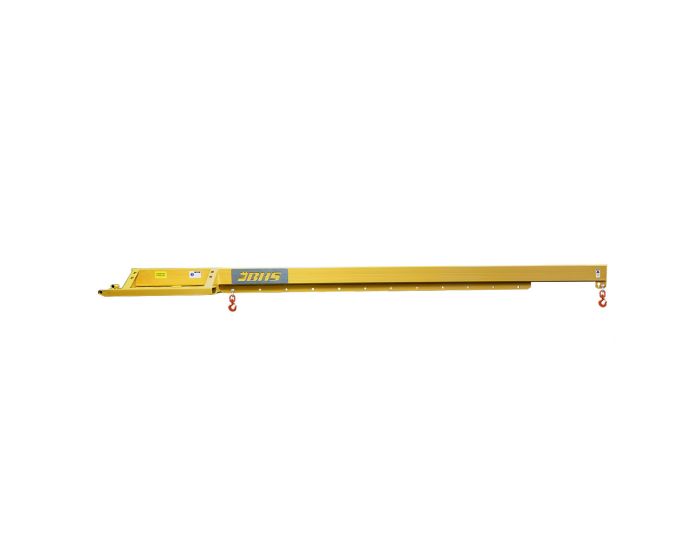

Fixed Forklift Jib Boom
Lift the loads your forklifts typically can’t handle with a Fixed Forklift Jib Boom. This durable steel forklift attachment features adjustable hook points, allowing lift trucks to raise loads of virtually any size, shape, or weight up to 6,000 pounds (2,722 kilograms).*
*To maintain a safe center of gravity, capacity diminishes with distance from the mast. Measuring from the mast, capacity ranges from 6,000 lbs (2,722 kg) at 47” (11,944 mm) to 900 lbs (408 kg) at 220” (5,588 mm)
Lift the loads your forklifts typically can’t handle with a Fixed Forklift Jib Boom. This durable steel forklift attachment features adjustable hook points, allowing lift trucks to raise loads of virtually any size, shape, or weight up to 6,000 pounds (2,722 kilograms).*
Standard fork pockets are compatible with most lift trucks, while a retaining heel pin ensures dependable attachment at the mast. At the far end, a Load-Lok securing hook keeps items stable during lifts. Custom units available on request.
- Allows forklifts to lift loads from above, omitting the need for pallets or fork pockets
- Lifting capacity up to 6,000 lbs (2,722 kg)*
- Adjustable attachment points, with 12 hook anchors up to 220” (5,588 mm) from base
- Heavy duty steel construction with chemical resistant powder-coat finish
- Low maintenance requirements
* To maintain a safe center of gravity, capacity diminishes with distance from the mast. Measuring from the mast, capacity ranges from 6,000 lbs (2,722 kg) at 47” (11,944 mm) to 900 lbs (408 kg) at 220” (5,588 mm).
Model | Capacity | Overall Width | Overall Height | Overall Length | Fork Opening |
Fork Pocket Length | Min. Hook Point Reach | Max. Hook Point Reach | Weight |
FFJB-6K-220 | 6,000 lb (2,722 kg) |
30.6” (777 mm) |
11.4” (291 mm) |
226.5” (5753 mm) |
7.5” x 2.5” (190 mm x 63 mm) |
42” |
47” (11944 mm) |
900 lb (408 kg) |
637 lb |
* Overlength shipping fees apply. Contact a representative for more details.
