Gantry Crane, Non-Power Drive

For pricing, contact us by calling 314-696-0200 or Request a Quote.

SKU

PGC

Catalog (PDF)

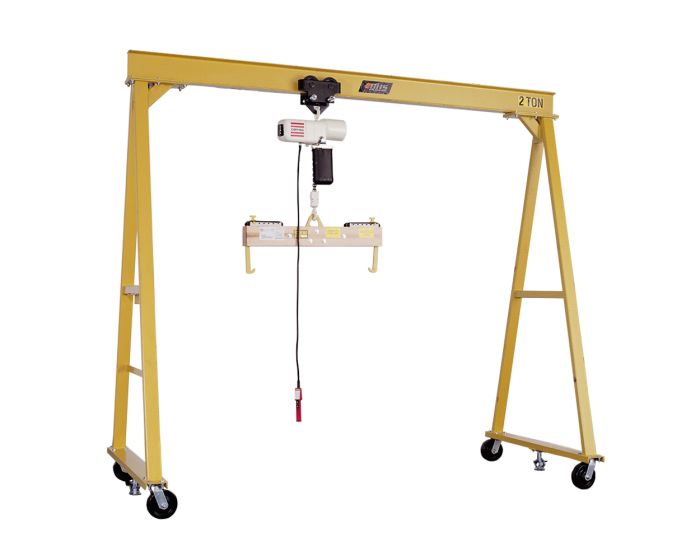

Non-Power Drive Gantry Crane for vertical forklift battery extraction with 4,000 lb (1814 kg) capacity.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

Portable gantry cranes from BHS provide safe and easy vertical extraction for most standard lift truck batteries. They are significantly more cost-effective than bridge cranes, and their modular design allows for easy system expansion. This 2 Ton Non-Power Drive Gantry Crane has a capacity of 4,000 lb (1814 kg) and is available in five models.

Features & Benefits:

Provides a safe and easy vertical extraction of most standard lift truck batteries
Modular design allows for easy system expansion
A variety of beam spans and capacities are available for specific applications
Portable non-power driven units utilize dual floor locks to insure stability during battery change out
Large swivel casters are standard for portable non-power driven units to allow for easy mobility of the entire gantry crane
All units are electric lift powered
High 10' (3 m) under beam clearance is standard on all units
Cable Festoon Kit keeps cables secure during operation of manual trolley
Base price includes the gantry, cable festoon, and manual hoist

Specifications

Non-Power Drive Gantry Crane–2 Ton Capacity

	PGC-10	PGC-12	PGC-14	PGC-16	PGC-18
Capacity	4,000 lb / 1814 kg	4,000 lb / 1814 kg	4,000 lb / 1814 kg	4,000 lb / 1814 kg	4,000 lb / 1814 kg
Clear Between “A” Frame	10’ / 3048 mm	12’ / 3658 mm	14’ / 4267 mm	16’ / 4877 mm	18’ / 5486 mm
Overall Beam Length	12’ / 3658 mm	14’ / 4267 mm	16’ / 4877 mm	18’ / 5486 mm	20’ / 6096 mm
Overall Length Dimension	12’ / 3658 mm	14’ / 4267 mm	16’ / 4877 mm	18’ / 5486 mm	20’ / 6096 mm
Overall System Length 1	14’ / 4267 mm	16’ / 4877 mm	18’ / 5486 mm	20’ / 6096 mm	22’ / 6706 mm
Nominal Track / Wheel Distance 2	11’ 5” / 3480 mm	13’ 5” / 4089 mm	15’ 5” / 4699 mm	17’ 5” / 5309 mm	19’ 5” / 5918 mm
Overall Height	10’ 9” / 3277 mm	10’ 9” / 3277 mm	10’ 11” / 3327 mm	10’ 11” / 3327 mm	11’ 1” / 3378 mm
I-Beam Size	8” x 23 lb / 203 mm x 10.43 kg	8” x 23 lb / 203 mm x 10.43 kg	10” x 25.4 lb / 254 mm x 11.52 kg	10” x 25.4 lb / 254 mm x 11.52 kg	12” x 31.8 lb / 305 mm x 14.42 kg
Weight	850 lb / 386 kg	890 lb / 404 kg	940 lb / 426 kg	995 lb / 451 kg	1225 lb / 556 kg
Under Beam Clearance Height	10’ 1” / 3073 mm	10’ 1” / 3073 mm	10’ 1” / 3073 mm	10’ 1” / 3073 mm	10’ 1” / 3073 mm
A-Frame Base Width	64” / 1626 mm	64” / 1626 mm	64” / 1626 mm	64” / 1626 mm	64” / 1626 mm

Non-Power Drive Gantry Crane–3 Ton Capacity

	3PGC-10	3PGC-12	3PGC-14	3PGC-16	3PGC-18
Capacity	6,000 lb / 2722 kg	6,000 lb / 2722 kg	6,000 lb / 2722 kg	6,000 lb / 2722 kg	6,000 lb / 2722 kg
Clear Between “A” Frame	10’ / 3048 mm	12’ / 3658 mm	14’ / 4267 mm	16’ / 4877 mm	18’ / 5486 mm
Overall Beam Length	12’ / 3658 mm	14’ / 4267 mm	16’ / 4877 mm	18’ / 5486 mm	20’ / 6096 mm
Overall Length Dimension	12’ / 3658 mm	14’ / 4267 mm	16’ / 4877 mm	18’ / 5486 mm	20’ / 6096 mm
Overall System Length 1	14’ / 4267 mm	16’ / 4877 mm	18’ / 5486 mm	20’ / 6096 mm	22’ / 6706 mm
Nominal Track / Wheel Distance 2	11’ 5” / 3480 mm	13’ 5” / 4089 mm	15’ 5” / 4699 mm	17’ 5” / 5309 mm	19’ 5” / 5918 mm
Overall Height	10’ 9” / 3277 mm	10’ 11” / 3327 mm	10’ 11” / 3327 mm	11’ 1” / 3378 mm	11’ 4” / 3454 mm
I-Beam Size	8” x 23 lb / 203 mm x 10.43 kg	10” x 25.4 lb / 254 mm x 11.52 kg	10” x 25.4 lb / 254 mm x 11.52 kg	12” x 31.8 lb / 305 mm x 14.42 kg	15” x 42.9 lb / 381 mm x 19.46 kg
Weight	900 lb / 408 kg	950 lb / 431 kg	1,000 lb / 454 kg	1,110 lb / 503 kg	1,305 lb / 592 kg
Under Beam Clearance Height	10’ 5” / 3175 mm	10’ 5” / 3175 mm	10’ 5” / 3175 mm	10’ 5” / 3175 mm	10’ 5” / 3175 mm
A-Frame Base Width	68” / 1727 mm	68” / 1727 mm	68” / 1727 mm	68” / 1727 mm	68” / 1727 mm

Options

Phenolic Wheel (PGC-PHEN): Rigid phenolic casters for use with Single Guidance Track (SGT-C3)
12' Underbeam (PGC-12UB): For applications requiring 12' (3.7 m) under beam clearance
Floor Mount (PGC-FM): Allows for rigid mounting of gantry directly to the floor

Warnings

California Residents: WARNING: This product contains chemicals known to the State of California to cause cancer and/or reproductive harm, and birth defects or other reproductive harm. Learn more here.
