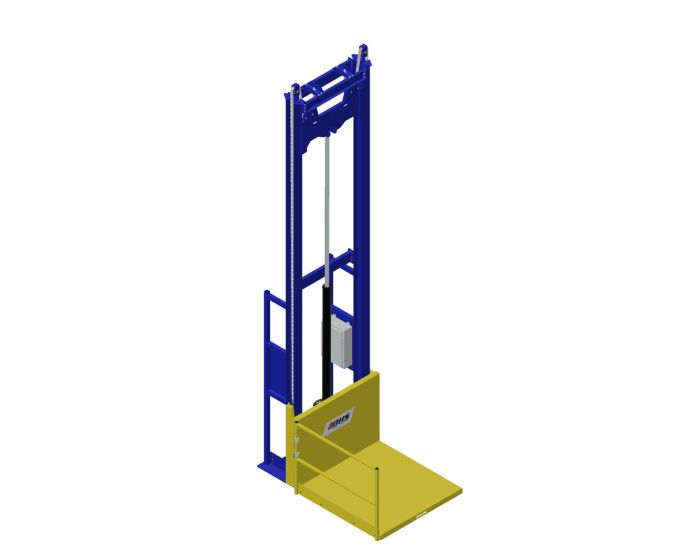

Hydraulic Cantilever Vertical Reciprocating Conveyor

This quick-to-deploy lifting solution is ready to start elevating heavy loads virtually right off the truck. We’ll ship your Hydraulic Cantilever Vertical Reciprocating Conveyor (VRC-HC) assembled, so you can simply secure the base, connect the power, and go.

These vertical lifts are ideal for moving pallet loads, loose materials, and heavy equipment between levels. This is a quick, cost-effective solution that starts delivering an ROI much faster than competing solutions like freight elevators.

Hydraulic Cantilever VRCs are sized for mezzanines and other multi-level applications, delivering 15 feet (4.57 meters) of vertical travel. Choose lifting capacities of 3,000 or 6,000 pounds (1,361 or 27212 kilograms), with three carriage options sized for common materials, from pallets to carts to AGVs.

These VRCs are designed for space efficiency. A two-post cantilever design limits the overall footprint. Travel speeds of up to 21 feet (6.4 meters) per minute support high-throughput operations, while robust safety features ensure virtually hazard-free operation.

Features & Benefits

• Cost-effective alternative to freight elevators
• Ships assembled for quick installation
• Compact footprint saves space
• Lifts loads up to 15’ (4.57 m)
• Ideal for mezzanines and multi-story conveyor systems
• Two-post cantilever design
• Supports all common loading patterns, including 3-way access
• Available with lifting capacities of 3,000 lb (1361 kg) or 6,000 lb (2722 kg)
• Choose carriage platform sizes of 50” x 50” (127 cm x 127 cm), 60” x 60” (152.4 cm x 152.4 cm), or 60” x 90” (152.4 cm x 228.6 cm)
• Travel speed of 21 ft/min (6.4 m/min) for efficient material handling
• Safety features include interlocks, position sensors, and emergency drop locks
