Mobile Battery Extractor

As low as $45,643.00

Only %1 left

SKU

MBE

Load Capacity

Extraction Method

Charger Options

Will this equipment be used in Europe and require CE certification?

Yes

Qty

Catalog (PDF)

A self-contained, mobile forklift battery extractor with one 42" (1067 mm) wide battery compartment and is recommended for up to 50 battery changes per day.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

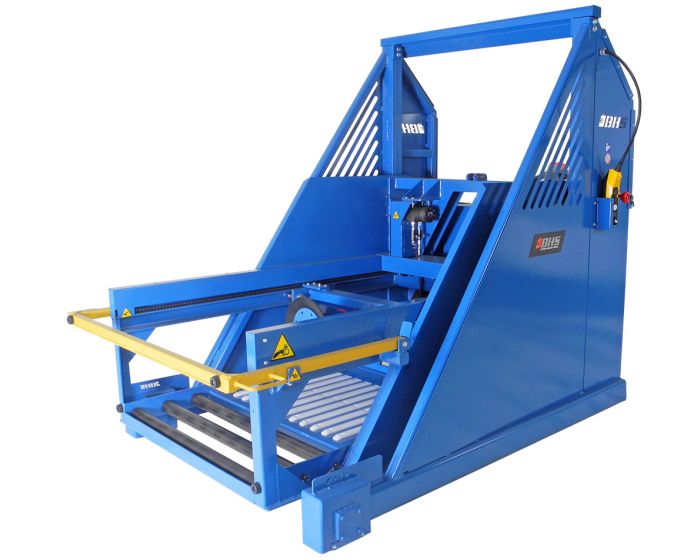

The BHS Mobile Battery Extractor (MBE-42) is a self-contained, mobile forklift battery extractor with one 42" (1067 mm) wide battery compartment and is recommended for up to 50 battery changes per day. The MBE-42 is hydraulic powered with a 24 Volt powerhead which eliminates the need for a pallet jack. Its heavy-duty steel frame handles the toughest applications while its durable two-part epoxy finish resists both acid and scratches. The MBE-42 is equipped with a safety shield to protect its operator and its roller and slide strip combination provides increased battery stability. The Mobile Battery Extractor (MBE) is capable of servicing a variety of trucks due to the wide battery compartment, heavy load capacity, and broad lift-lower range. The MBE-42 is easily maneuvered using the powerhead controls at the rear of the unit, while the convenient, electrical pendant controls the battery extraction and lifting functions. The BHS Mobile Battery Extractor includes standard industrial components to allow for local parts availability, and its low maintenance design reduces operating costs.

Features & Benefits

24 V dc powerhead eliminates need for a pallet truck
Pendant control for ease of operation
Hydraulic-powered with vacuum extraction
Operator Shield separates operator from roller compartment
Large 2.4” (61 mm) diameter rollers standard
Combination of compartment rollers and rear friction strips provides increased battery stability during transport
Low-maintenance design reduces operating costs
Built-in battery and charger for convenience
Standard industrial components allow for local parts availability
Heavy-duty construction for added reliability
Durable powder coat finish resists both acid and scratches
Battery Containment Bar encloses compartment to secure battery during transport
Lowest roller height of any powered BHS equipment reaching 3.5” (89 mm)
4,000 lb (1814 kg) and 5,000 lb (2268 kg) capacities are available
Rubber Bumpers protect the industrial lift truck fleet during battery change-out

Mobile Battery Extractors will only ship as a dedicated freight item. Therefore, the LTL shipping quotes provided through the web store may not be accurate. Please call to guarantee the accuracy of the quote prior to order.

Compare to: WBP-40-V-44,0

Specifications

	MBE-42	MBE-42-5
Max. Load Capacity 1	4,000 lb / 1814 kg	5,000 lb / 2268 kg
Operating Voltage	24 V dc	24 V dc
Hydraulic Pump Type	Gear, Fixed Displacement	Gear, Fixed Displacement
Hydraulic Pump Displacement	1.3 gal/min / 4.9 L/min	1.3 gal/min / 4.9 L/min
*Raise / Lower Speed (maximum)**	8.8 ft/min / 9.4 ft/min 0.044 m/s / 0.048 m/s	8.8 ft/min / 9.4 ft/min 0.044 m/s / 0.048 m/s
Battery Attachment	Vacuum Standard, Magnet Optional	Vacuum Standard, Magnet Optional
Vacuum Cup	12” / 305 mm Dia.	12” / 305 mm Dia.
Vacuum	21” Hg / 0.73 kg/cm2	21” Hg / 0.73 kg/cm2
Optional Magnet	4” x 12” / 101 mm x 305 mm	4” x 12” / 101 mm x 305 mm
Primary Drive Chain Size	#50	#50
Rated Draw Bar Pull	1,125 lb / 510 kg	1,125 lb / 510 kg
Roller Diameter	2.4” / 61 mm	2.4” / 61 mm
Roller Shaft Size	0.75” / 19 mm Hex	0.75” / 19 mm Hex
Battery Width	7.5” Min / 41” Max 191 mm Min / 1041 mm Max	7.5” Min / 41” Max 191 mm Min / 1041 mm Max
Battery Length	18” Min / 49” Max 457 mm Min / 124 mm Max	18” Min / 49” Max 457 mm Min / 1244 mm Max
Battery Height	21” Min / 32.5” Max 533 mm Min / 825 mm Max	21” Min / 32.5” Max 533 mm Min / 825 mm Max
Overall Dimensions (L x W x H)	108” x 63.5” x 79.5” 2743 mm x 1613 mm x 2019 mm	119” x 63.5” x 79.5” 3023 mm x 1613 mm x 2019 mm
Slide Strip Length	23.5” / 597 mm	23.5” / 597 mm
Roller Width	41.88” / 1064 mm	41.88” / 1064 mm
Extended Arm Reach (Beyond Roller Bed)	10.5” / 267 mm	10.5” / 267 mm
Extractor Arm Travel Speed	22 ft/min / 0.11 m/s	22 ft/min / 0.11 m/s
Service Weight (unloaded)	3,650 lb / 1655 kg	3,840 lb / 1742 kg
Turning Radius	8’ / 2.44 m	9’ / 2.74 m
Min. Service Aisle	16’ / 4.88 m	17’ / 5.18 m
Battery Compartment Depth	49” / 1245 mm with Vacuum 45” / 1143 mm with Magnet	49” / 1245 mm with Vacuum 45” / 1143 mm with Magnet
Battery Compartment Width	42” / 1067 mm	42” / 1067 mm
Wheelbase	80” / 2032 mm	93.5” / 2375 mm
Ground Clearance (Inside Frame Elevated 1” / 25 mm)	0.75” / 19 mm (Outside Frame Fixed)	0.75” / 19 mm (Outside Frame Fixed)
Grade Clearance	2%	2%
Floor to Roller Height	3.5” Min / 33.5” Max 89 mm Min / 851 mm Max	3.5” Min / 33.5” Max 89 mm Min / 851 mm Max
Max Travel Speed*	155 ft/min / 0.787 m/s Loaded 200 ft/min / 1.016 m/s Unloaded	155 ft/min / 0.787 m/s Loaded 200 ft/min / 1.016 m/s Unloaded
Controls	5 Button Side Mounted Tethered Pendant	5 Button Side Mounted Tethered Pendant

Options

Lead Acid Battery (MBE-LA): Lead acid battery instead of maintenance free battery pack
Magnet Extraction (MBE-MAG): Ideal when batteries are too narrow for vacuum extraction
