Overhead Reel Lifters

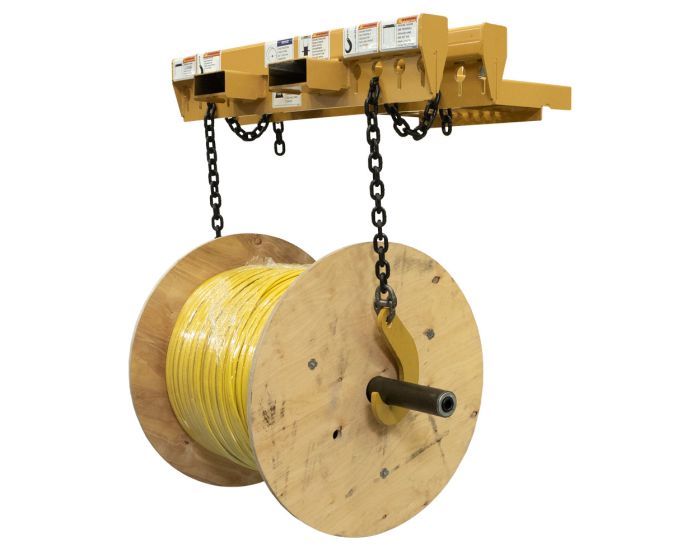

The Overhead Reel Lifter (ORL) can be used for lifting, transporting, and loading reels into racking when lifting the reel from the bottom is not possible.

A fully loaded reel of electrical cable stored at ground level rarely provides the clearance a typical Reel Handler Attachment requires. In these situations, the Overhead Reel Lifter creates the opportunity to safely lift reels from above.

The ORL attaches securely to lift truck forks. A safety chain can attach to the mast or to a fork, adding another level of protection. Beams include keyhole chain-link slots for virtually instant adjustment when working with reels of different sizes.

In between uses, store the ORL’s hooks and chains in an integrated storage tray. This fork attachment has a small footprint to conserve space when not in use, and it provides a vital service when you need to lift a reel that lacks ground clearance.

Telehandler models (-TH) feature a integrated 2” square receiver hitch that lets you quickly move trailers and pull-behind equipment with a customer-supplied 2” hitch insert.

Features & Benefits

• Choose models with load capacities ranging from 5,000 lb to 15,000 lb
• Intended for use with lift trucks of sufficient capacity
• Safety chain attaches to the mast or fork, secured via slip hook with spring-loaded clasp to ensure engagement
• Dual load beams allow users to adjust for different load centers
• Each beam has three width positions which are quickly adjustable due to the “keyhole” chain link slots.
• Wide throat hooks will accommodate up to 4.25” (108 mm) carrier axles and allow for easy engagement and disengagement
• Storage area conveniently houses the hook and chain assemblies when not in use
