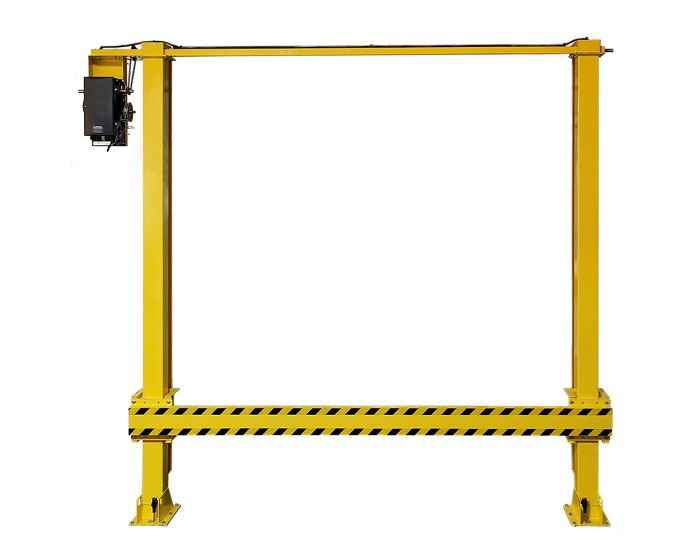

Powered Dock Gate

$10,698.00
SKU
PDG

Prevent dock accidents with a powered, high-visibility barrier. When the dock’s in use, lift the gate with the push of a button. The PDG improves safety for forklift operators and pedestrians alike, while also guarding dock edges against impact damage.

Dock edges are a serious safety risk — unless you protect them with a Powered Dock Gate. These reinforced-steel barriers are capable of stopping forces up to 10,000 pounds at 4 miles per hour, preventing lift trucks from going over the edge. A high-visibility yellow finish adds another layer of protection for forklift operators and pedestrians alike. The steel uprights also protect dock edges to prevent costly infrastructure damage.

When a trailer arrives, users can lift the gate with the press of a button. A simple three-button control makes controlling the gate quick and easy. The lift motor is compatible with existing 115-volt and 230-volt circuits, so there’s no need for rewiring. And uprights bolt directly into dock floors for simple installation.

Features & Benefits

  • Prevents roll-off at docks
  • Protects dock edges from lift truck strikes
  • High-visibility yellow finish alerts viewers to open-dock hazards
  • Electric motor automates lifting and lowering of safety barrier
  • Powered unit rated for 15 cycles per hour
  • Custom models available on request
Model Description Overall Width Overall Height Overall Depth Cycles per Hour Est. Weight
PDG-120-120 Designed for 10 ft x 10 ft Dock Door Opening 153-3/8" (3896 mm) 138-3/16" (3510 mm) 15.5" (394 mm) 15 1200 lb (544 kg)
