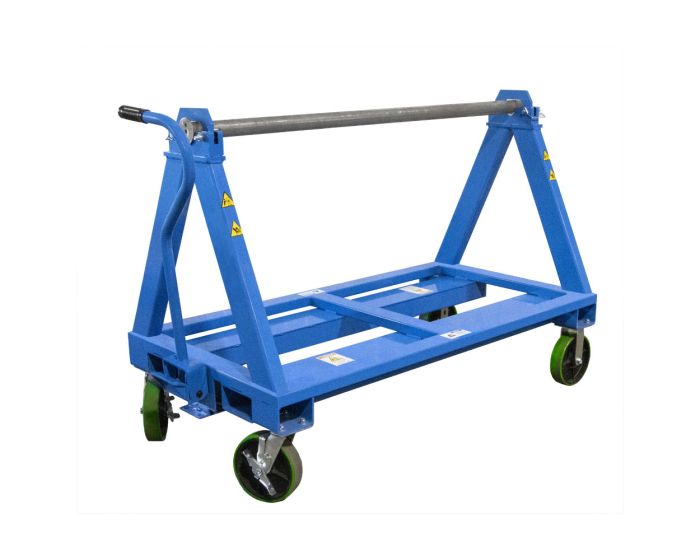

Reel Stand - Wagon

$1,882.00

SKU

W-STAND-6032

Options

Floor Lock + $52.00

Clamp on Pull Brake + $156.00

Auxiliary Ground Reel & Attachment (PRP-AUX) + $501.00

1 1/2" Shaft + $241.00

Qty

Catalog (PDF)

Base jack stands for Parallel Reel Wagon (PRW) or other applicable reels

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

Reel Stands make up the base frame of a Parallel Reel Payout Wagon (PRW), which are designed for high-capacity cable storage and ensure that cables will not become tangled during payout. Reel Stands are designed to hold up to five free-spinning Reels.

A 2-inch solid-steel center shaft firmly supports up to five reels and multiple wire types.

Fork pockets make transportation of the stand quick and easy. Casters give the stand even more mobility.

Durable Reel Stands make cable installation simple by allowing workers to access an even payout of cable products from up to five reels. Individual reel hubs can be locked when particular cables are not needed.

Features and Benefits

Heavy-duty steel construction for added reliability Two-way fork pocket design
Fork pockets enable transporting by pallet truck or forklift, allowing optimum positioning (pallet truck not compatible with casters option)
2” (51 mm) solid steel center shaft
Shaft safety locks equipped with locking pin
Heavy duty steel tube base frame design for maximum durability
0.75” (19 mm) UHMW alignment strips for center shaft prevent wear of components
Wagon models feature a shortened base frame designed to fit 34” (864 mm) minimum door openings for use inside an existing facility or new construction

Options

Floor Lock (PRP-FL): Locking floor brake prevents unwanted movement of the unit
Pull Brake Clamp (PRW-PB-C): One drop-down self-leveling steel arm capped with neoprene pad. Order four per PRW unit for maximum stability during cable payout.
Auxiliary Ground Reel & Attachment (PRP-AUX): Add a single spinning reel to the outer frame of the reel stand; includes R-1 Reel and attachment mechanism
1 1/2" Shaft (29815059): Shaft for use with existing third-party reels
