Roller Wash Stations

As low as $3,902.00

Only %1 left

SKU

RWS

Catalog (PDF)

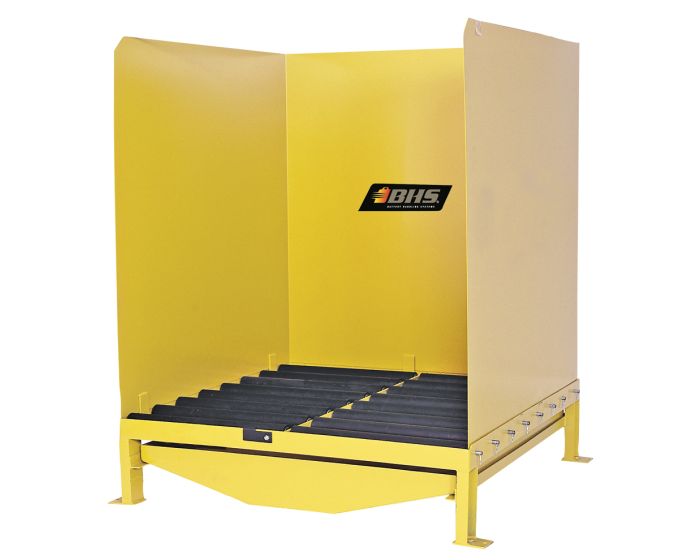

Forklift battery wash station equipped with poly sleeved rollers contains battery wash water and over-spray.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

The BHS Roller Wash Station (RWS) provides a convenient and contained location to wash electrolyte from forklift batteries. Leaks, spills, and boil-overs can leave corrosive residue on cases or terminals as batteries are used, watered, and charged. Regularly cleaning this electrolyte from the battery will increase its life and performance.

The Roller Wash Station has spark-proof, poly-sleeved rollers to easily load batteries onto the wash deck. A removable drain tray collects waste water and can connect to a BHS Recirculation/Neutralization System (RNS).

Three 48-inch walls prevent overspray from reaching the warehouse floor while still permitting staff easy access to the battery during washing. The body of the wash station is powder coated to resist corrosion and the poly-sleeved rollers are also anti-corrosive. Optional fork pockets can be added to the station to add mobility.

Features & Benefits

12″ (305 mm) deck height standard
48″ (1219 mm) side panels
4,000 lb (1814 kg) load capacity
Recycled, polyethylene decking is acid resistant, non-conductive, and environmentally friendly
Drain tray is removable for easy cleaning and has 1” (25 mm) NPT coupling
Designed as stand-alone or for use with Recirculation / Neutralization System (RNS)

Specifications

	RWS-3	RWS-3-SS
Frame Construction	Mild Steel	Stainless Steel
Drain Port Size	1” NPT / 25 mm
Drain Tray Capacity	23 gal / 87 L (Approximate)
Number of Rollers Inside Wash Station	16†
Maximum Weight Capacity	4,000 lb / 1814 kg
Overall Depth	48” / 1219 mm
Overall Width	48” / 1219 mm
Overall Height	60” / 1524 mm (without option RWS-FP)
Height from Floor to Top of Roller Bed / Wash Deck	11.75” / 298 mm (without option RWS-FP)
Shipping Weight	600 lb / 272 kg

Options

14" Roller Height (RWS-3-14 / RWS-3-SS-14): 14" (356 mm) roller height to allow drain tray to be removed when used in an Operator Aboard Battery Extractor System
Fork Pocket (RWS-FP)*: Welded fork pockets for added mobility Note: 17.5" (445 mm) roller height
Stainless Steel Fork Pocket (RWS-FP-SS): Welded fork pockets for added mobility (available on RWS-3-SS model only) Note: 17.5" (445 mm) roller height

* Not to be used while battery is on RWS
