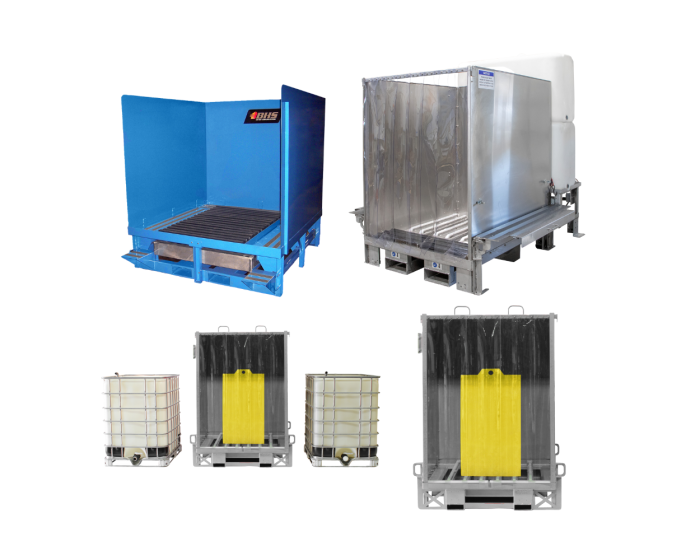

Mobile Wash Stations
MWS-47-SS
The stainless steel model MWS-47-SS creates a safe, EPA-compliant workspace for washing forklift batteries in either vertical- or side-extraction applications. The frame is constructed from 304/316 stainless steel for corrosion resistance and extreme durability. Inside, a battery bed of poly lead rollers and front-to-back friction strips simplifies loading and unloading the unit from the front.
Fork pockets boost mobility, giving users the option to carry the unit to batteries. This limits downtime caused by the vital maintenance task of washing forklift batteries. Meanwhile, the MWS-47-SS contains and transfers all wastewater to an external wastewater tank (not included) for proper disposal. Splash curtains help to contain overspray and runoff.
Features & Benefits
- Stainless steel construction offers rugged durability
- Fork pockets for easy mobility*
- Dual anchor points secure equipment during transport or to permanently secure equipment inside facility
- Friction strips from front to back
- Poly lead rollers with stainless steel shafts (three rows with two rollers per row)
- Clear, vinyl drop-in splash curtain
- 60” (1524 mm) side panel height
- 32” (813 mm) rear top panel depth, hinged at mid-point
MWS-47-SS-KIT
This mobile wash solution includes the stainless steel MWS-47-SS Mobile Wash Station and two 330 gallon mobile water tanks - one for clean water and one for used wash water.
MWS-47-SS-KIT Contents
- (1) Mobile Wash Station model MWS-47-SS (see above)
- (1) 120 V ac automatic sump pump in an external drain pan for easy clean-out and maintenance
- (1) 330 gal (1249 L) mobile clean water tank
- (1) Wash pump with 150 PSI at 5 gal/min mounted to clean water tank (not pictured)
- (1) Auxiliary hand spray wand
- (1) 330 gal (1249 L) mobile dirty water tank
MWS-47-WT-SS
Model MWS-47-WT-SS allows users to wash forklift batteries on-site, regardless of water source or wastewater disposal. The frame, complete with fork pockets, supports a stainless steel MWS-47-SS Mobile Wash Station and integrated, 120 gallon tanks for both clean and used wash water. The result is a turnkey solution for washing forklift batteries on-site, then hauling away wastewater for EPA-compliant disposal. The clean water tank includes a ball valve with a garden hose adapter that connects with all common power washers, while the wastewater tank features a ball-valve drain.
Features & Benefits
- Complete, self-contained station for washing forklift batteries
- Allows battery maintenance providers to provide on-site wash service
- Stainless steel construction offers rugged durability
- Fork pockets for easy mobility*
- Multiple anchor points secure equipment during transport or to permanently secure equipment inside facility
- Friction strips from front to back
- Poly lead rollers with stainless steel shafts (three rows with two rollers per row)
- Clear, vinyl drop-in splash curtain
- 54” (1372 mm) side panel height (measured from top of wash deck)
- Fold-down side steps to stand on while washing batteries. Steps stow folded up for transport
- (2) 120 gallon poly water tanks - (1) clean water and (1) wastewater - allowing unit to be self-sufficient
- Ball valve drain with 1” FNPT connection on waste water tank
- Ball valve with garden hose adapter for power washer connection on clean water tank
- Dedicated receptacle for commercial, 120 V electric power washer (not included) with cutout to prevent overflowing of wash water
- 120 V single phase float switch and sump pump
- (2) 120 V GFCI duplex receptacles for powering maintenance accessories
- Built-in storage area below water tanks for power washer and maintenance items
- 20 ft power cord with plug
- Custom alterations available
MWS-72 and MWS-72-SS
Model MWS-72 is the ideal solution for washing forklift batteries in Gantry Crane systems or other vertical-extraction applications. It includes base-mounted fork pockets for ease of travel. The frame is made from heavy-duty steel, then powder-coated to resist corrosion, rust, and abrasion. MWS-72 has a recycled polyethylene decking that is acidresistant, non-conductive, and environmentally friendly. Non-skid steps and a 15” walkway provide easy access for workers, and a removable drain tray makes cleaning simple. NOTE: Also available in stainless steel (MWS-72-SS).
Features & Benefits
- Designed for overhead (crane) loading
- Fork pockets for easy mobility*
- Anchor points secure equipment during transport
- Wide, non-skid steps and 15” (381 mm) walkway around wash deck for operator access to battery
- Recycled, polyethylene decking is acid resistant, non-conductive, and environmentally friendly
- Stainless steel drain tray is removable for easy cleaning and drain tray baffles reduce splashing
- Standard 0.75” (19 mm) brass hose connection
MWS-72 |
MWS-47-SS |
MWS-47-WT-SS |
|
Frame Construction |
Mild Steel |
304/316 Stainless Steel |
304/316 Stainless Steel |
Wash Deck Material |
HDPE Poly Lumber |
UHMW Friction Strips |
UHMW Friction Strips |
Drain Port Size |
Standard MGHT |
1” NPTF |
1” FNPT |
Drain Tray Capacity |
70 gal / 265 L |
23 gal / 87 L |
23 gal / 87 L |
Max. Weight Capacity |
5,000 lb / 2268 kg |
4,000 lb / 1814 kg |
4,000 lb / 1814 kg |
Overall Depth |
81” / 2057 mm |
61.375” / 1559 mm |
79.625” / 2023 mm |
Overall Width |
72” / 1829 mm |
58” / 1473 mm |
55.125” / 1400 mm (Steps stowed) 73.75” / 1874 mm (Steps Down) |
Overall Height |
78” / 1981 mm |
79.625” / 2022 mm |
81” / 2058 mm |
Height from Floor to Top of Wash Deck |
19” / 483 mm |
11.125” / 283 mm |
11.125” / 283 mm |
Wash Deck Area (W x D) |
41” x 56” / 1041 mm x 1422 mm |
47” x 55” / 1194 mm x 1397 mm |
47” x 55” / 1194 mm x 1397 mm |
Battery Width |
10” Min / 42” Max 254 mm Min / 1067 mm Max |
12” Min / 42” Max 305 mm Min / 1067 mm Max |
12” Min / 42” Max 305 mm Min / 1067 mm Max |
Shipping Weight |
1,570 lb / 712 kg |
780 lb / 354 kg |
1,000 lb / 454 kg∆ |
Input Voltage Required |
— |
— |
120 V / 1 ph / 60 Hz |
System AMP Draw |
— |
— |
See Note † |
* Not to be used while battery is on MWS
† Sump pump & float switch amp draw is approximately 1 A. Total amp draw dependant on specific power washer used and any auxiliary components plugged into unit.
∆ With empty water tanks
